2
OPERATION
18
EN
MAIN PARTS

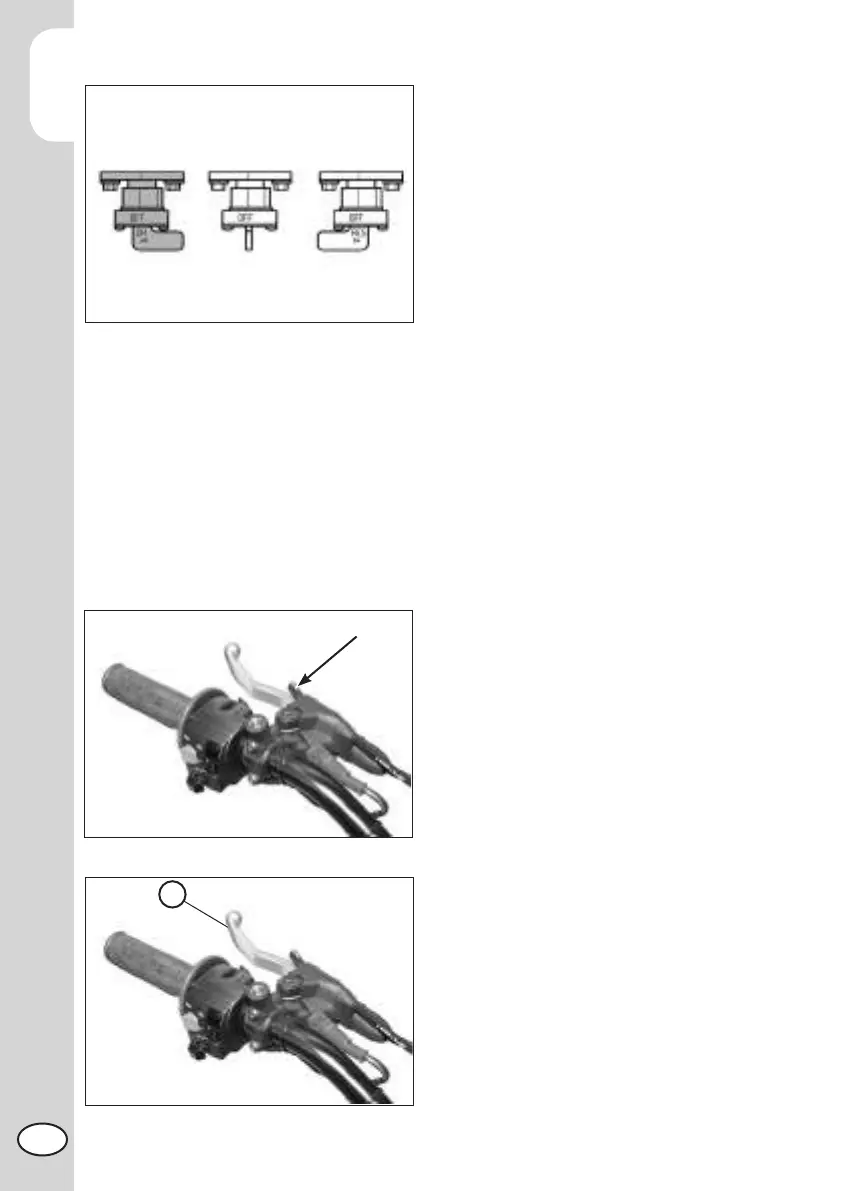

FUEL COCK
Fuel cock has three positions:
OFF: fuel supply closed. Fuel cannot pass
from the tank to the carburettor.
ON: fuel supply enabled. Fuel flows from
the tank to the carburettor. The tank empties
until it reaches the reserve level.
RES: reserve fuel supply. Fuel flows from
the tank to the carburettor and the tank
empties completely.
STARTER
The starter lever is located on the left side
of the handlebar. Turn the lever counter-
clockwise to operate.
CLUTCH LEVER
Clutch lever 1 is fitted to the left-hand side
of the handlebars.
OFF
ON
RES
1
