CHECKS AND MAINTENANCE
38
EN
ENGINE OIL

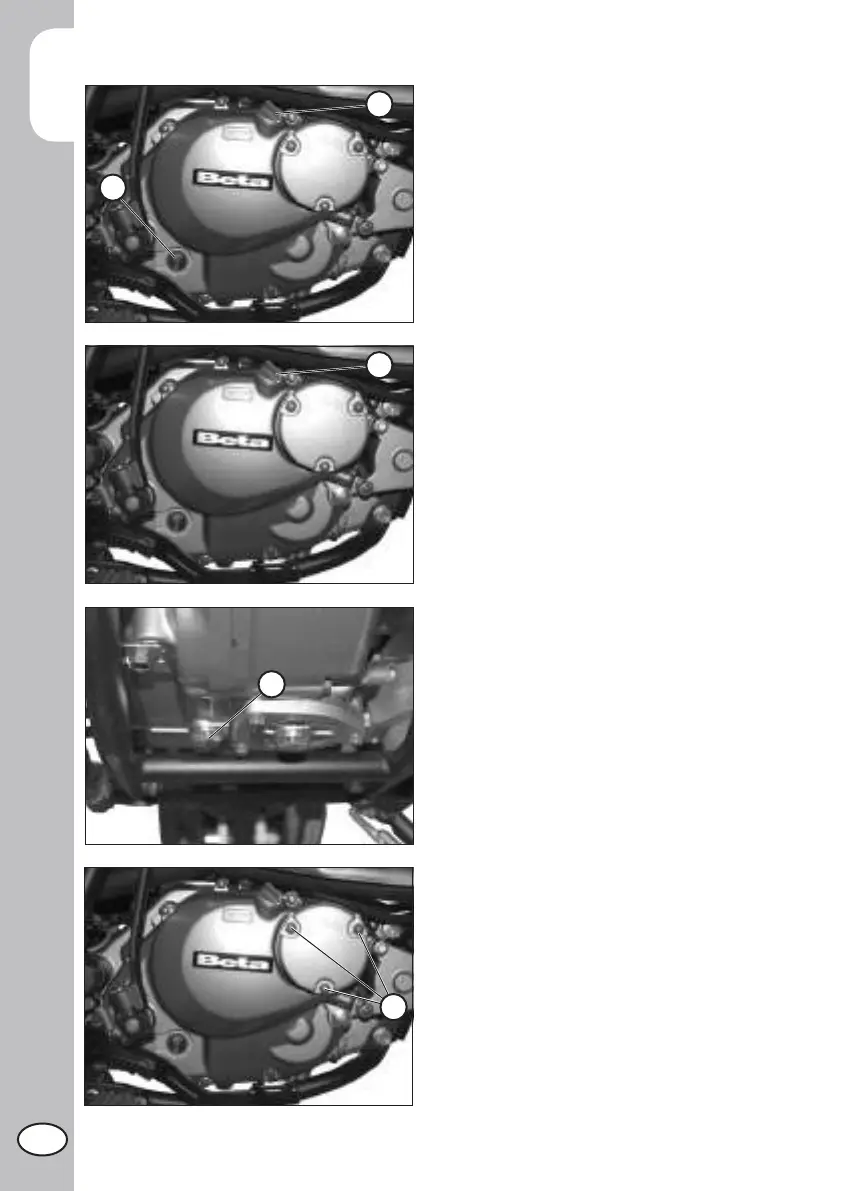

CHECK THE LEVEL
When engine is cold check the oil level
by means of porthole 1. The oil level
must be always visible from the porthole.
In contrary case restore the oil level
through cap 2.
Use the oil indicated on page 16
in the “Recommended lubricants and
liquids” table.
REPLACEMENT
Always perform the replacement when
engine is hot:
- Position the drive on a flat base ensuring
stability.
- Place a container under the engine.
- Unscrew filler plug 1 and drain plug 2.
- Drain all the oil from the crankcase.
- Close plug 2 .
- Remove the oil filter cover after unscrew-
ing the three nuts 3.
- Remove the oil filter and replace it with
a new one.
- Apply a thin film of engine oil to the
filter cover O-ring before insertion.
- Fit the oil filter cover after fitting the
spring and the O-ring, and then tighten
the three fastening nuts 3.
2
1
2
1
3
