Beta ALP 200 - Headlight Beam Adjustment

ADJUSTMENTS
36
EN
3
HEADLIGHT

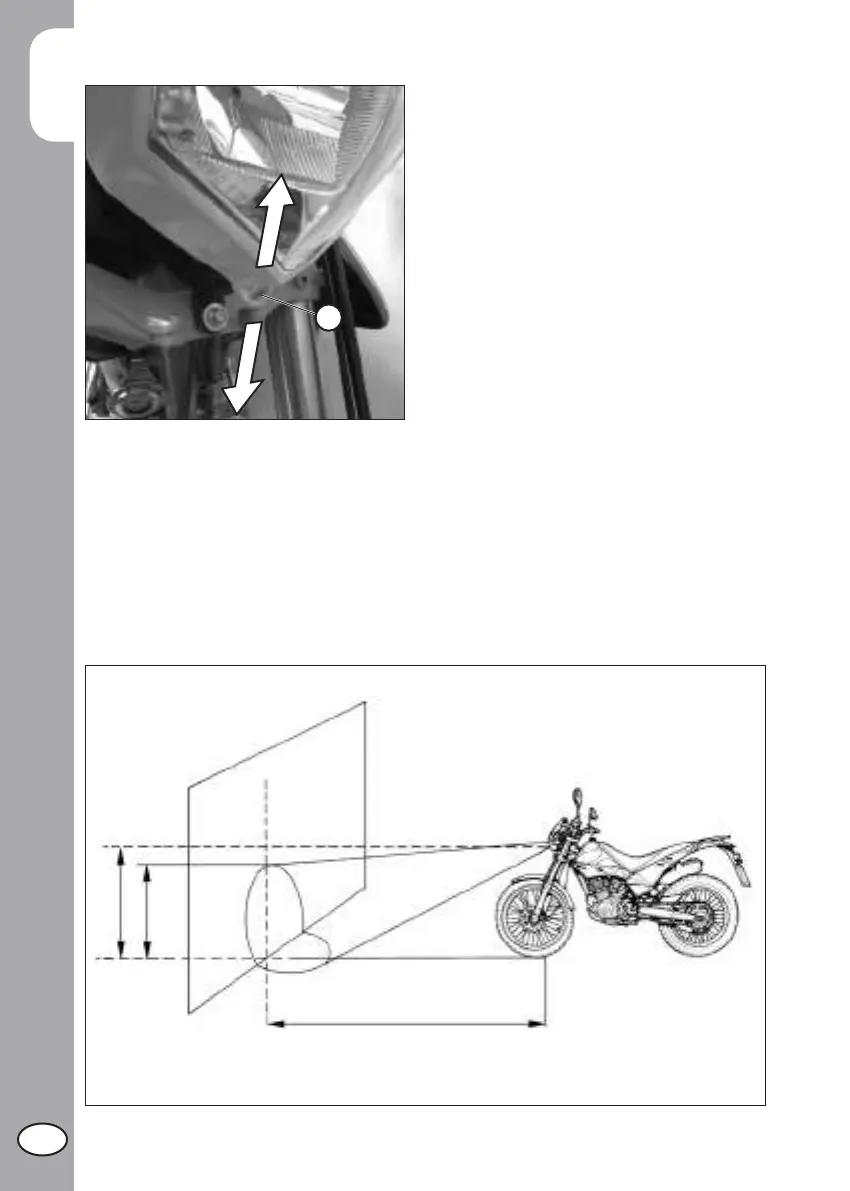

•Thelightbeamisadjustedbyunscrewing
or tightening screw A.
By tightening screw the light beam is
lowered; loosening screw raises the light
beam.
•Place the vehicle on level ground (but
not on the stand) 10 metres from a verti-
cal wall.
•Measuretheheightoftheheadlightcen-
tre above the ground and then draw a
cross on the wall at 9/10 of the height
of the headlight centre.
•Turnonthelowbeam,getonthemotor-
bike and check that the headlight beam
on the wall is slightly lower than the cross
drawn previously. Where this is not the
case, proceed to adjustment.
•Periodically check the direction of the
beam. The beam can only be adjusted
vertically.
9/10 h
10 m
h
A
