Operating the F01-2000
Section 5: Operating the F01-2000
5.2 Setting of Mechanical Stops
Necessary equipment: a 3 mm hexagonal key.
According to the type of valve to be operated, the actuator can be stopped by means of
torque or position limit switches, as detailed in the following list:
Valve type: metal seated buttery valve
Closing: torque
Closing: position
Valve type: ball valve, buttery valve, plug valve
Opening: position
Opening: position
Before any setting operation, it is necessary to unscrew the adjustable mechanical stops.

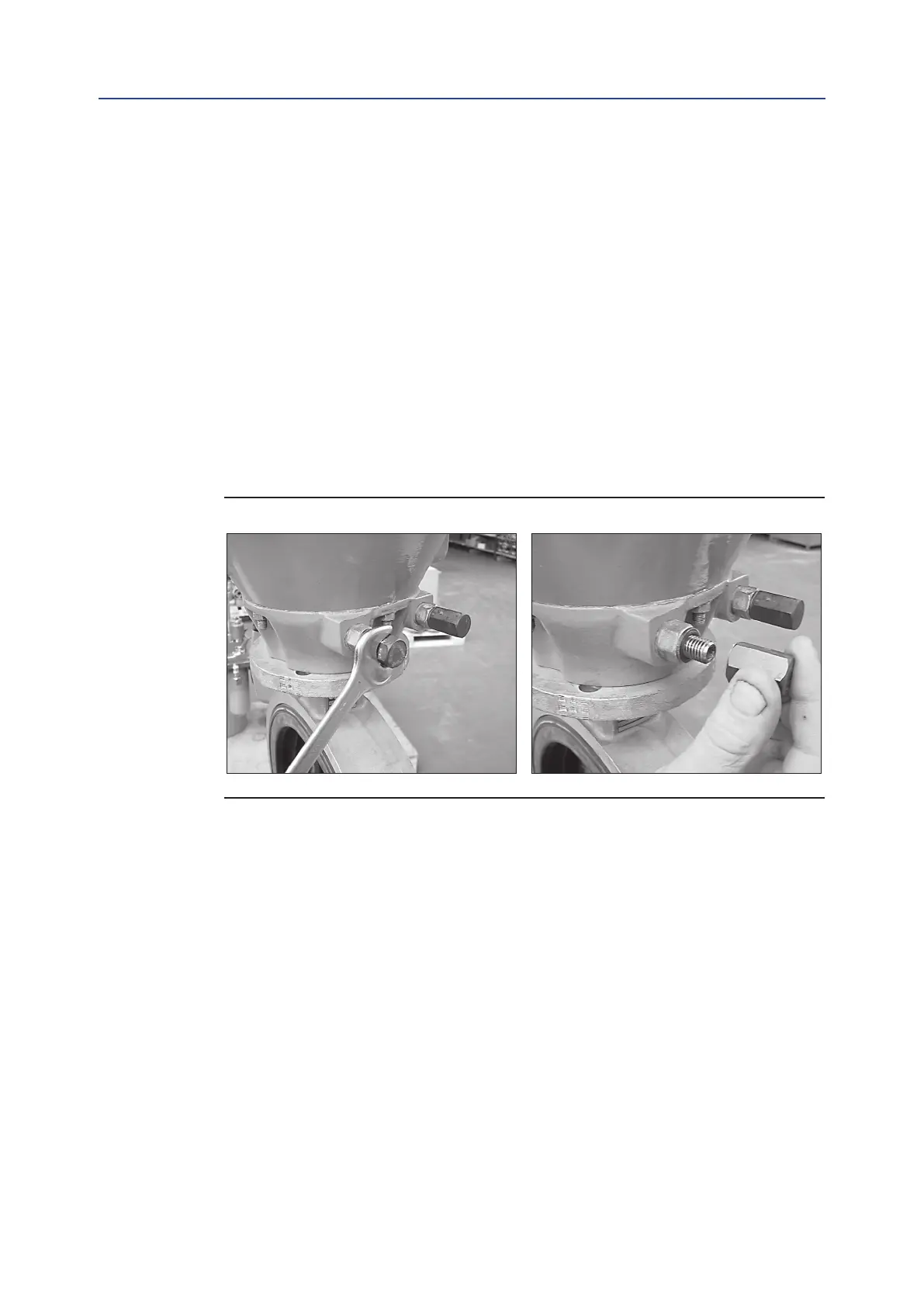

Figure 20
