September 2021
Installation, Operation and Maintenance Manual
VCIOM-01249-EN Rev. 0
25Operating the F01-2000
Section 5: Operating the F01-2000

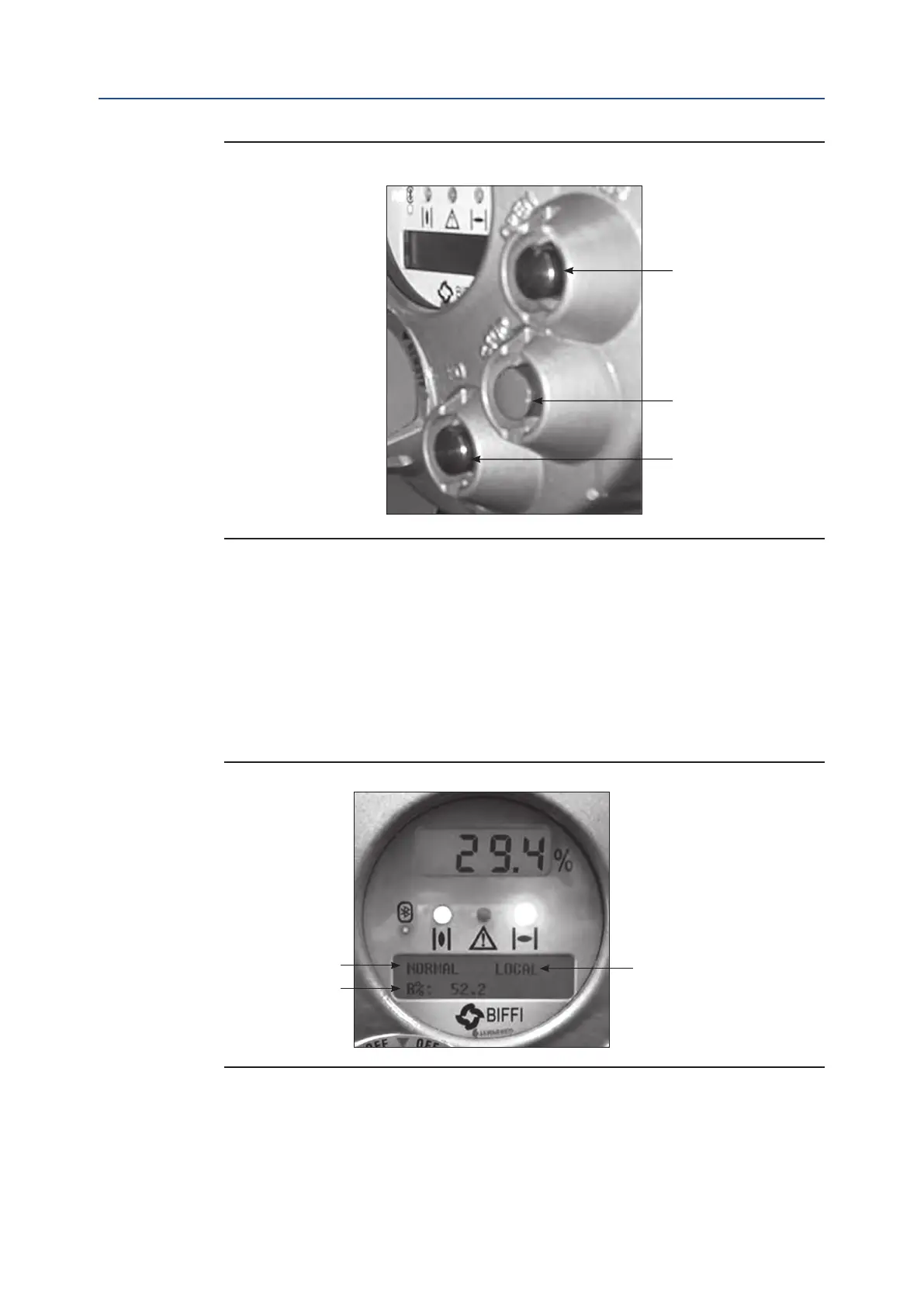

Figure 24
OPEN/YES
STOP
CLOSE/NO
5.5 Local Indication
The upper display (3 1/2 LCD) indicates the valve position as a percentage of opening
(open = 100%).
The lower display has two alphanumeric lines. The upper line indicates the actuator status
and the 3-position selector status. The lower line indicates the actuator operation.
Two LED’s indicate the actuator position / operation, while a third LED indicates alarms.
Figure 25
Status
Local selector
position
Operation
or Position
request R%
