Installation, Operation and Maintenance Manual
VCIOM-01249-EN Re
v
. 0
78
Set
-Up Routine
s
Section 9: Set
-Up Routines

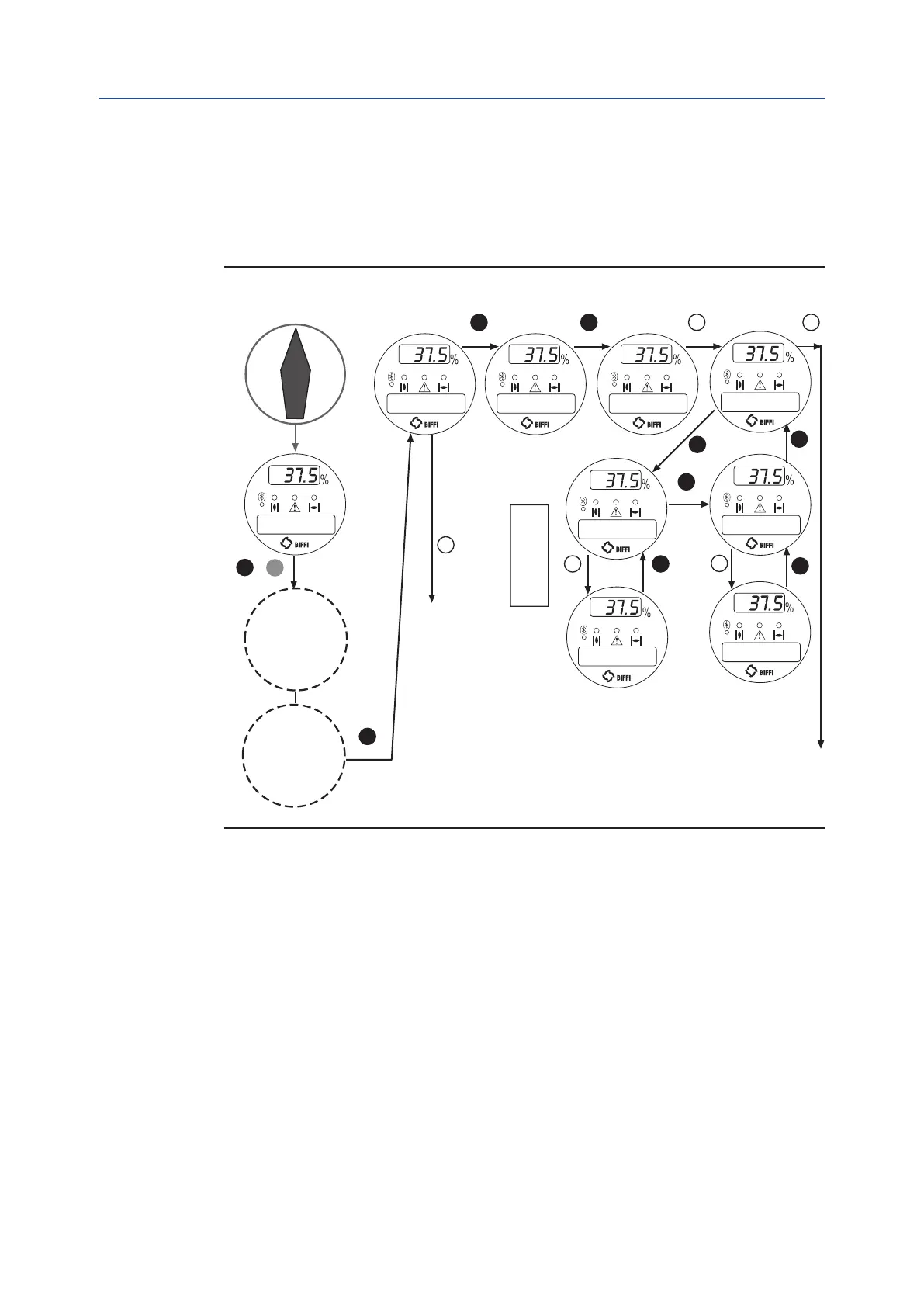

9.4
Example of Set
-Up Routine
9.4.1
T
orque Se
t
-up
Figure 51
OFF
SELECT
LANGUAGE
ENTER
PASSW
ORD
SETUP MODE
OK?
AC
TUAT
OR SE
TUP
CHANGE?
STROKE LIMIT
CHANGE?
TORQUE SETUP
CHANGE?
CLOS
ING TORQUE
55% OK?
CLOS
ING TORQUE
70% OK?
OPENING TORQUE
60% OK?
OPENING TORQUE
65% OK?
YES
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
TO NEXT
TO VIEW
MENU
T
o exit from SE
TUP menu press YES and NO
simultaneously or move the 3-po
sition selector to
LOCAL or REMOTE
Press NO
until the
desired
valvue
appears
and then
press YES
XXXXXX OFF
STO
P
NEXT?
DISPLA
Y
LOCAL
REMOTE
STO
P
YES
3-POSITION
SELECTOR
83
85
Table of Contents
Default Chapter
3
Table of Contents
3
Section 1: General Safety Instructions
7
Range of Application
7
Safety Instructions for Installation in Hazardous Area
7
Marking
8
Applicable Standards and Regulations
8
Terms and Conditions
9
Identification of the Main Parts
9
Section 2: Storage and Pre-Installation
10
Tests to be Carried out When the Actuator Is Received
10
Storage Procedure
10
General
11
Storage for a Brief Period (Less than One Year)
11
Long Period Storage (more than One Year)
11
Checks to be Performed before Installation
13
Section 3: Installation
14
Working Condition
14
Coupling Block: Disassembly from the Actuator
14
Manual Operation
16
Mounting the Actuator Onto the Valve
17
Electrical Connections
18
Identification of Entries
18
Plants Requirements
19
Removing the Electrical Enclosures' Covers
19
Terminal Board Enclosure
19
Cable Entries
20
Terminal Board
21
Instructions for the Explosionproof Enclosures
24
Installation in Environment with Explosive Dusts
25
Section 4: Lubrication
26
Lubrication Inspection
26
Section 5: Operating the F01-2000
27
Operation by Handwheel
27
Setting of Mechanical Stops
28
Electrical Operation
30
Local Control
30
Local Indication
31
Remote Control
32
Remote Commands
32
Lock of the 3-Position Selector
32
Output Contacts
33
ESD Operation
34
Interlock Inputs
36
Operating the F01-2000 for the First Time
36
Optional Modules
38
Fieldbus Interface for Remote Control Via Fieldbus
38
Ain/Aout Card
39
Base Card of the F01-2000 V4
41
Section 6: Local Controls
44
Description of the Local Operator Interface
44
Configuration Options
49
Entering the View Mode
51
Entering the Set-Up Mode
52
Exit from View and Set-Up Mode
52
Section 7: Set-Up Menu
54
Set-Up Menu
54
Section 8: View Menu
56
View Menu
56
Section 9: Set-Up Routines
58
Actuator Set-Up
58
Set Stroke Limits
58
Torque Set-Up
60
ESD Control
60
Remote Controls
62
Local Controls
62
Output Relays
63
Positioner
67
Fail-Safe
70
Out 4 - 20 Ma
71
Interlock
72
2-Speed Timer
72
BUS (or FDI Control)
74
Miscellaneous
74
Valve Data
78
Sample Configuration Procedure
79
Maintenance
79
Set Password
80
Clear Alarm Log
80
Set Torque Reference
80
Set Curve Reference
81
Clear Recent Data Log
81
Set Maintenance Date
82
Set Data Logger
83
Example of Set-Up Routine
84
Torque Set-Up
84
Section 10: View Routines
85
Actuator Set-Up
85
Nameplate
86
Valve Data
87
Maintenance
87
Alarm Log
87
Torque Profile
88
Torque Curve
89
Operation Log
90
Maintenance Date
93
Data Logger
93
Example of View Routine
97
View Torque Set-Up
97
Section 11: Maintenance
98
Standard Maintenance
98
Special Maintenance
99
Lithium Battery Change
100
Section 12: Troubleshooting
104
The Electronics Do Not Switch on When Powered
104
DC Output Voltage Not Available at the Terminals
105
The Actuator Does Not Work from Remote Controls
105
The Motor Is very Hot and Does Not Start
106
The Motor Runs but the Actuator Does Not Move the Valve
106
The Valve Does Not Seat Correctly
106
Excessive Torque for Valve Operation
106
The Actuator Does Not Stop in Fully Open or Fully Closed Position
107
The Numeric Position Display Indicates "E01
107
Diagnostic Messages
107
Section 13: Parts List and Drawings
111
Introduction
111
