BIFFI F01-2000 - Set-Up Menu Procedures; Actuator Set-Up Routines; Valve Data Configuration; Maintenance Menu Functions

September 2021
Installation, Operation and Maintenance Manual
VCIOM-01249-EN Rev. 0
48
Set-Up Menu
Section 7: Set-Up Menu
Section 7: Set-Up Menu

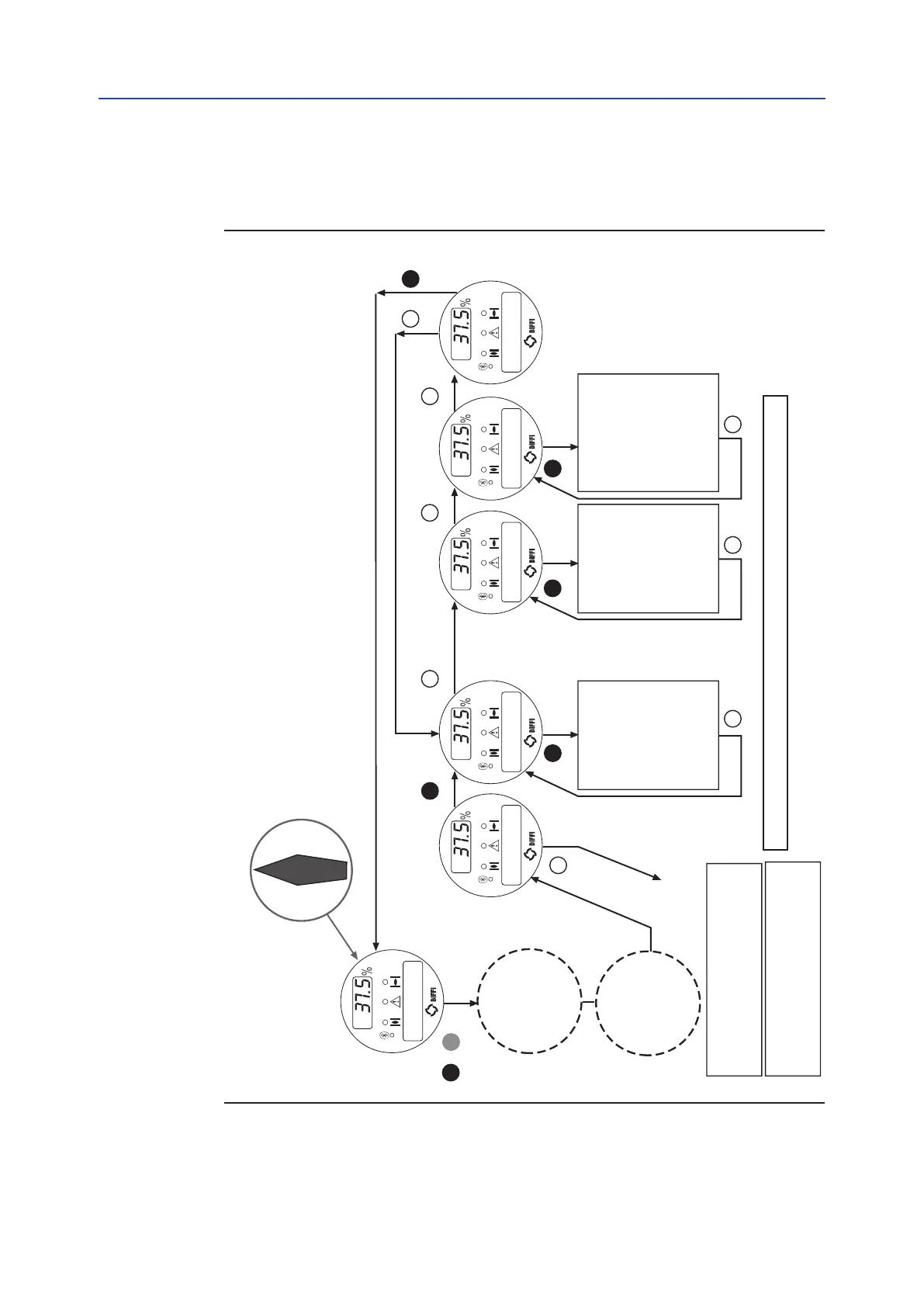

Figure 41
XXXXXX OFF STOP NEXT?
DISPLAY
LOCAL REMOTE
Routines: - Tag name change? - Serial number change? - Manufacturer change? - Break OP torque change? - Break CL torque change? - Max stem thrust change? - Flange type change?
Routines: - stroke limits change? - torque set-up change? - ESD set-up change? - Remote controls change? - Local controls change? - Output relays change? - Positioner * change? - Fail-safe * change? - Out 4 - 20 mA * change? - Interlock change? - 2-speed timer change? - Bus * change? - Miscellaneous change?
To exit from SETUP menu press
YES and NO simultaneously or
move the 3-position selector to
LOCAL or REMOTE
1. Routines with * are only available if the relevant
modules are present
2. Nameplate menu not available in Set-up mode
ENTER
PASSWORD
TO VIEW
MENU
Press YES or NO to answer the appropriate prompts (change? OK?, etc.)
SELECT
LANGUAGE
Routines: - Set password change? - Clear alarm log OK? - Set torque prole reference OK? - Set torque curve reference OK? - Clear recent data log OK? - Maintenance date change? - Data logger change?
YES
YESYES
YES
NO
NO
NO
NO
YES
STOP
NO
NO
NO
NO
YES
OFF
3-POSITION SELECTOR
VALVE DATA
CHANGE?
ACTUATOR SETUP
CHANGE?
SETUP MODE
OK?
MAINTENANCE
CHANGE?
EXIT?
