Section 5: Operating the F01-2000

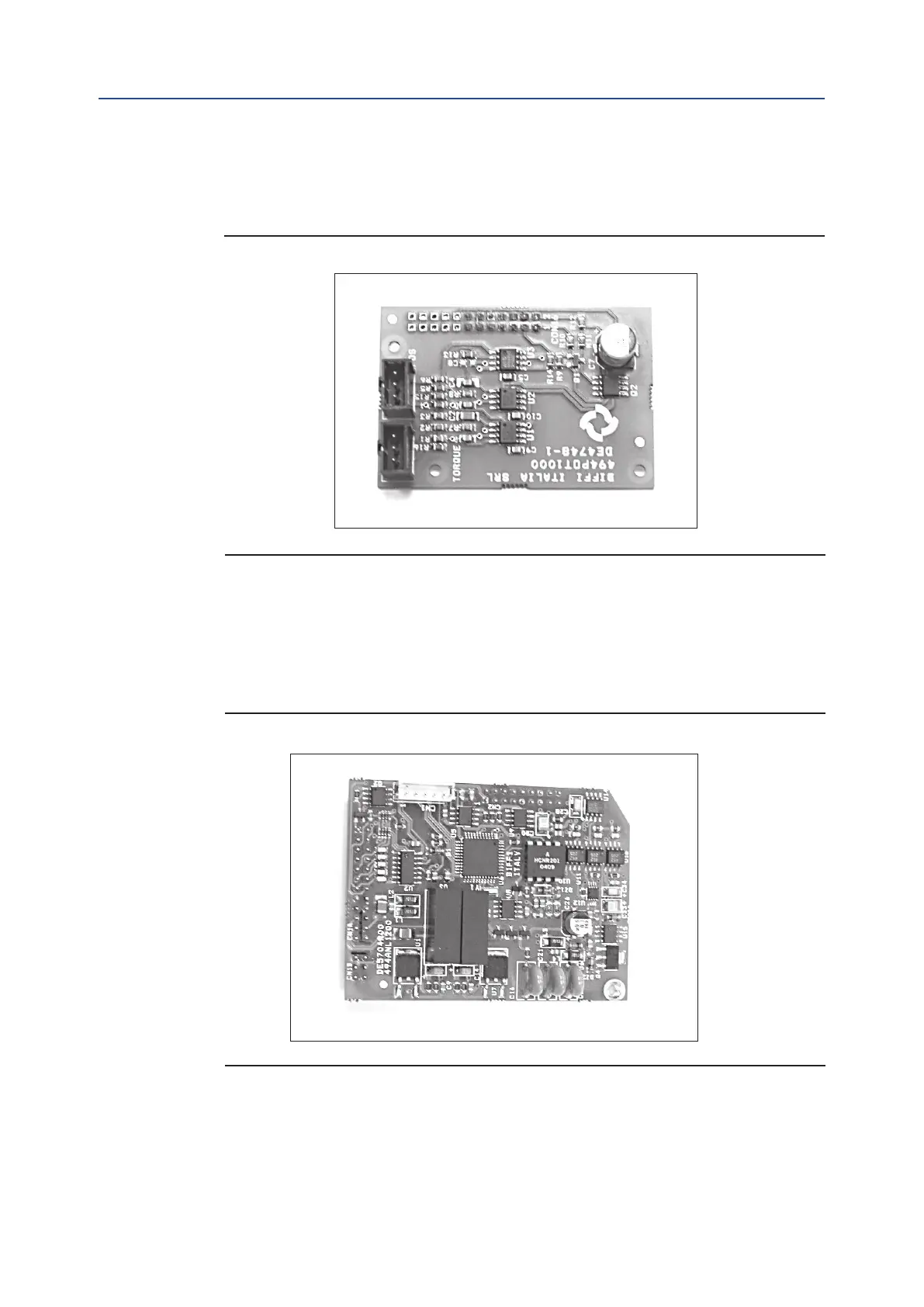

Figure 36 Potentiometer card
Potentiometer card
This card allows the base card to read position and torque values from the potentiometers
installed on the actuator.
Figure 37 Ain/Aout card
Ain/Aout card
This optional card is used in place of the Terminal Board Adaptor (TBA)
card when an analog 4 - 20 mA input and output signal is requested. This card cannot be
used in the actuators with terminal board series F01-2000 v0 (see Section 5.8, Operating
the F01-2000 for the rst time).
