4. Installation and connections
4.1 Shelf holder and shelves
The shelf holder consists of two identical side parts. Insert them alongside the lateral walls of the inner
chamber. They are fixed by cams on the bottom of the inner chamber. For assembly and disassembly,
fold both side parts towards the middle.
Then you can insert the shelves into the shelf holder. Hold the shelf straight and then insert it so it will go
smoothly inside the unit.

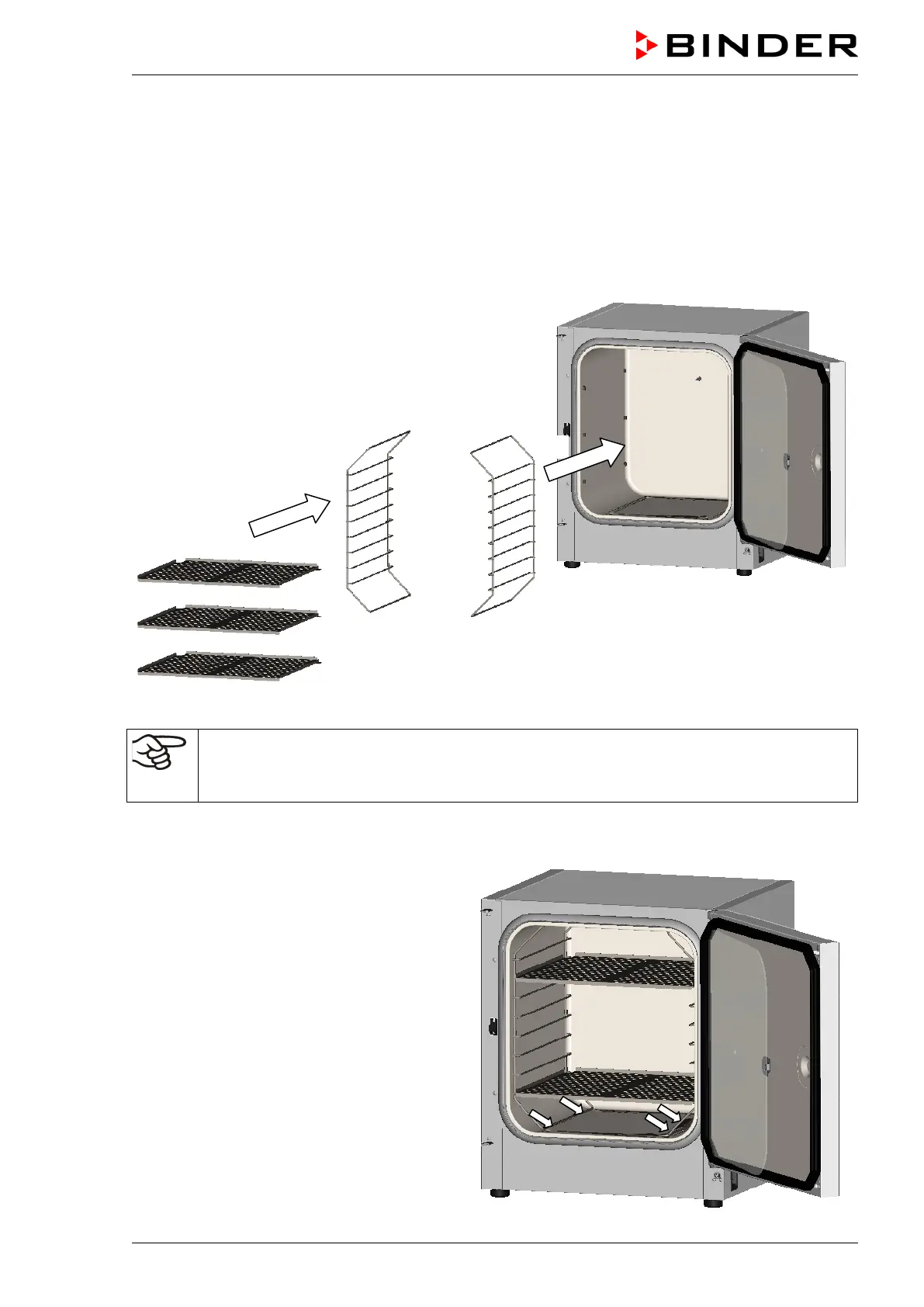

Figure 8: Installation of the shelves and shelf holder
If just one of the three supplied shelves shall be used in one of the three lower positions, we
recommend inserting a supplementary shelf as high as possible into the shelf holder for stabi-
lizing purpose.
To remove the shelf holder, remove the shelves first.
It is not possible to take out the shelf holder entirely together with the shelves.
Figure 9: View of the interior with inserted
shelves and the position of the cams
to fix the shelf holder
