The CO
2
sensor head was especially adjusted for the specific chamber. To avoid confusion, an adhesive
label with a serial number is adhered to the sensor head. When exchanging the sensor, you must repeat
the CO
2
adjustment.
CAUTION
Different CO
2
sensor.
Invalid calibration.
∅ Do NOT change the CO
2
sensor head.
 Note down the serial number of the CO
2
sensor.
Avoid strong shocks when handling the CO
2
sensor.
CAUTION
Shocks of the CO
2
sensor.
Damage to the CO
2
sensor.
∅ Avoid strong shocks of the CO
2
sensor (by putting it down hard, or dropping).
4.3 Water pan
The water pan permits high humidity without condensation on the inner walls of the CO
2
incubator.
Place the water pan in central position on the bottom of the inner chamber. Place the water pan with its
narrow side centrally between the front cams on the bottom of the inner chamber.

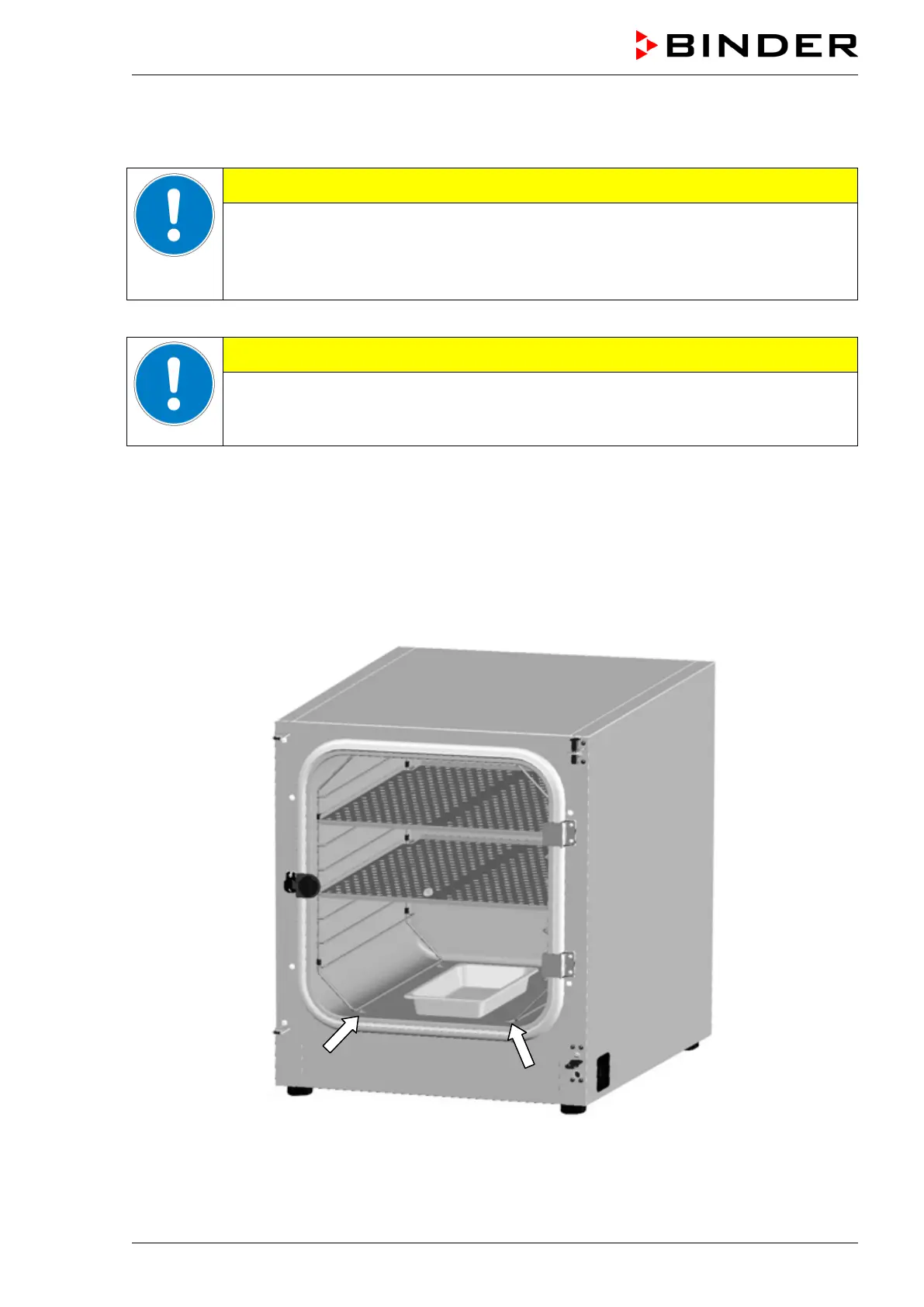

Figure 11: Position of the water pan centrally between the front cams (arrows)
