Can support mounting plate
Can support

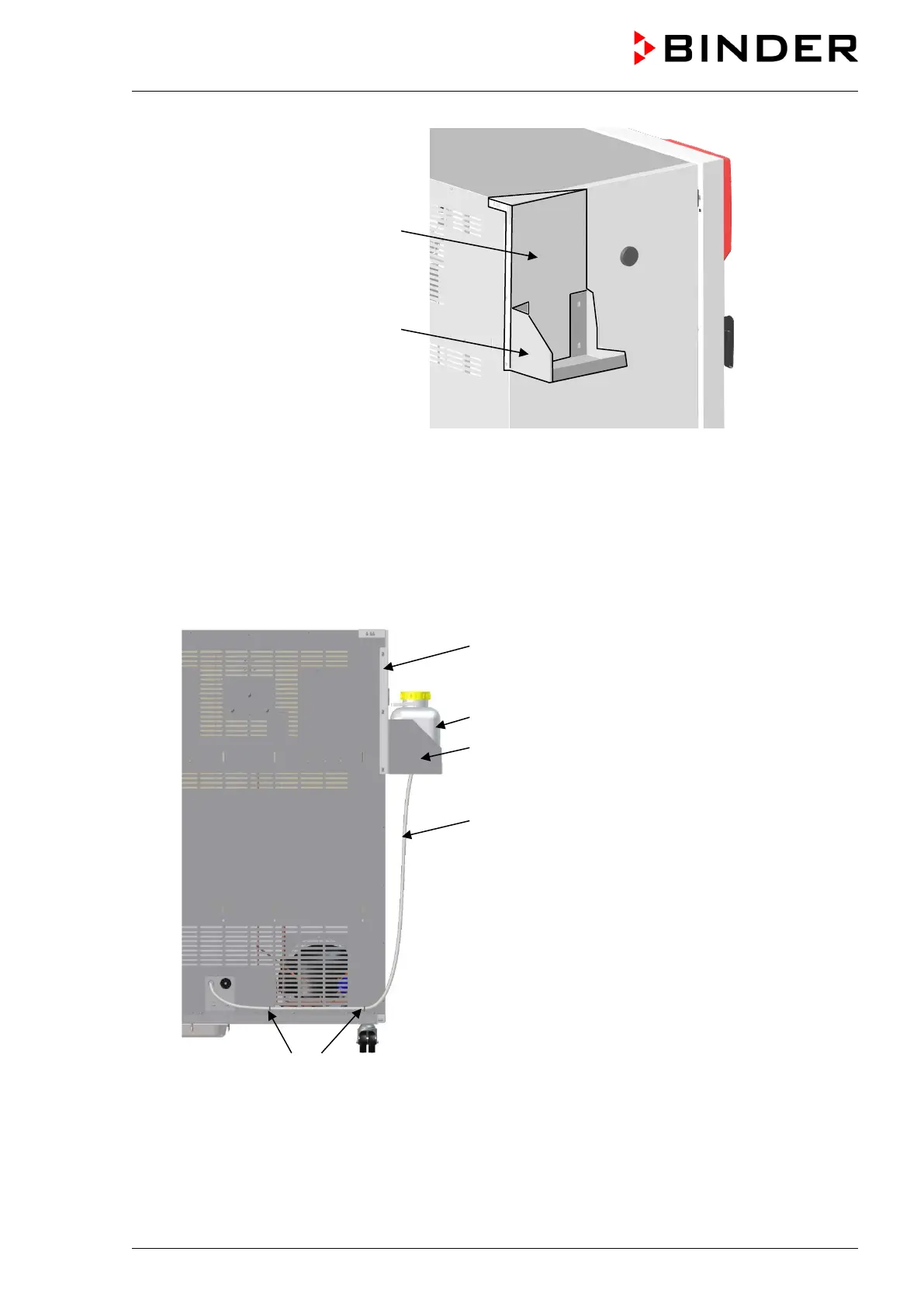

Figure 10: Can support mounting plate and can support, mounted
5. Insert the freshwater can from above into the can support.
6. Mount the hose holders and fix the hose
Mount the supplied hose holders at the provided points on the chamber rear and fix the hose to these
hose holders in a way that it cannot bend.
(9)
(7a) Can support mounting plate
(7b) Freshwater can
(7c) Can support
(8)
Figure 11: Rear chamber view (detail) with installed water supply
(7) Freshwater can (7b) inside the can support (7c) with mounted can support mounting plate
(8) Hose leading to the freshwater can
(9) Hose fixing devices
