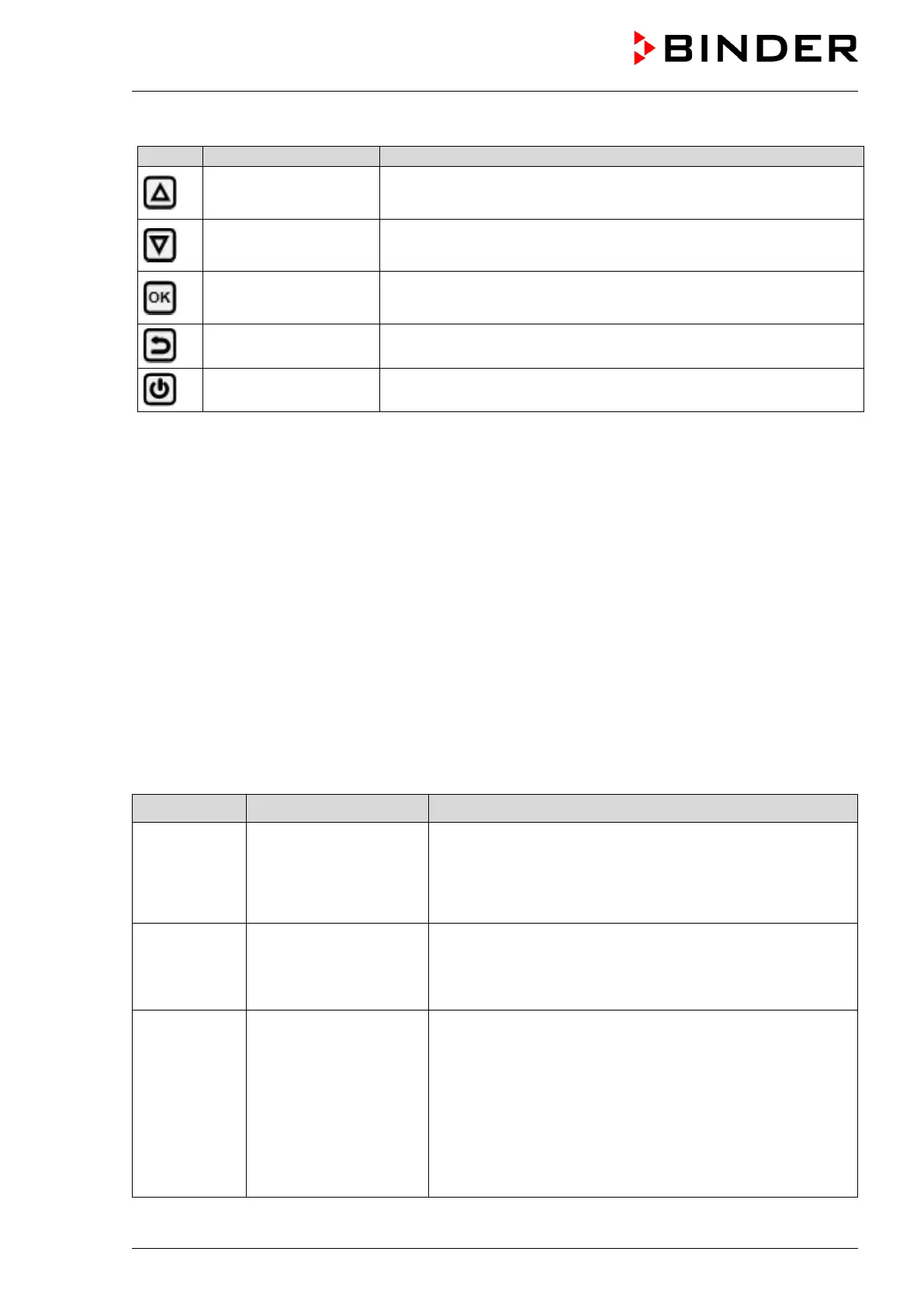

Functional controller keys
Arrow-up button
• Navigate between menus, submenus, other functions
• In the setting menu: change setting, decrease value
Arrow-down button
• Navigate between menus, submenus, other functions
• In the setting menu: change setting, increase value
OK button
• Select menu, submenu, function
• In the setting menu: Confirm entry
Back button Back to previous menu level
Standby button
no function
5.1 Menu structure of the controller and access levels
Starting from Normal display, navigate between the menus with the arrow buttons.
With the OK button you enter the setting of further subordinate menu functions.
With the Back button you go back to the previous function and finally back to Normal display.
The available functions depend on the current dependent on the current authorization “User”, “Admin” or
“Service”, for which the entry of a password may be required, depending on the setting.
You can set passwords for different access levels:
• User: The password enables access to the standard operating functions. Factory setting is 00 00 (no
password assigned).
• Admin: The password enables access to advanced controller functions and settings. Factory setting is
00 01.
• Service: The password enables access to all controller functions (for BINDER Service only).
As soon as a password has been assigned, access to the respective functions is blocked and only available
after entering the correct password.
Menu Required access level Functions
Setpoints “User”
• Temperature and humidity set-point setting
• Setting the safety controller
• Turning on / off humidity control
• Activating/deactivating operating mode “Idle mode”
Chamber info Any user
• Configuration display (setup information, controller hard-
ware and software, analog inputs)
• Display of interface configuration (e.g. MAC address, IP
address)
Settings “Admin”
• General controller settings (date, time, menu language,
temperature unit, display brightness…)
• Network settings
• Setting the data logger storage interval
• Setting the tolerance range limits and delay time for toler-
ance range alarm
• Self-test function
• Password changing for User and Admin
