4.2.2 KBF-S / KBF-S-UL 240, 720, 1020: Installation of the condensate collection pan
Place the condensate collection pan with the magnetic holders on the bottom of the chamber.
Insert the pan in a way that it is flush with the front edge of the chamber and the distance to the right edge
of the device is 18 +/- 2 cm.
KBF-S / KBF-S-UL 240 KBF-S / KBF-S-UL 720

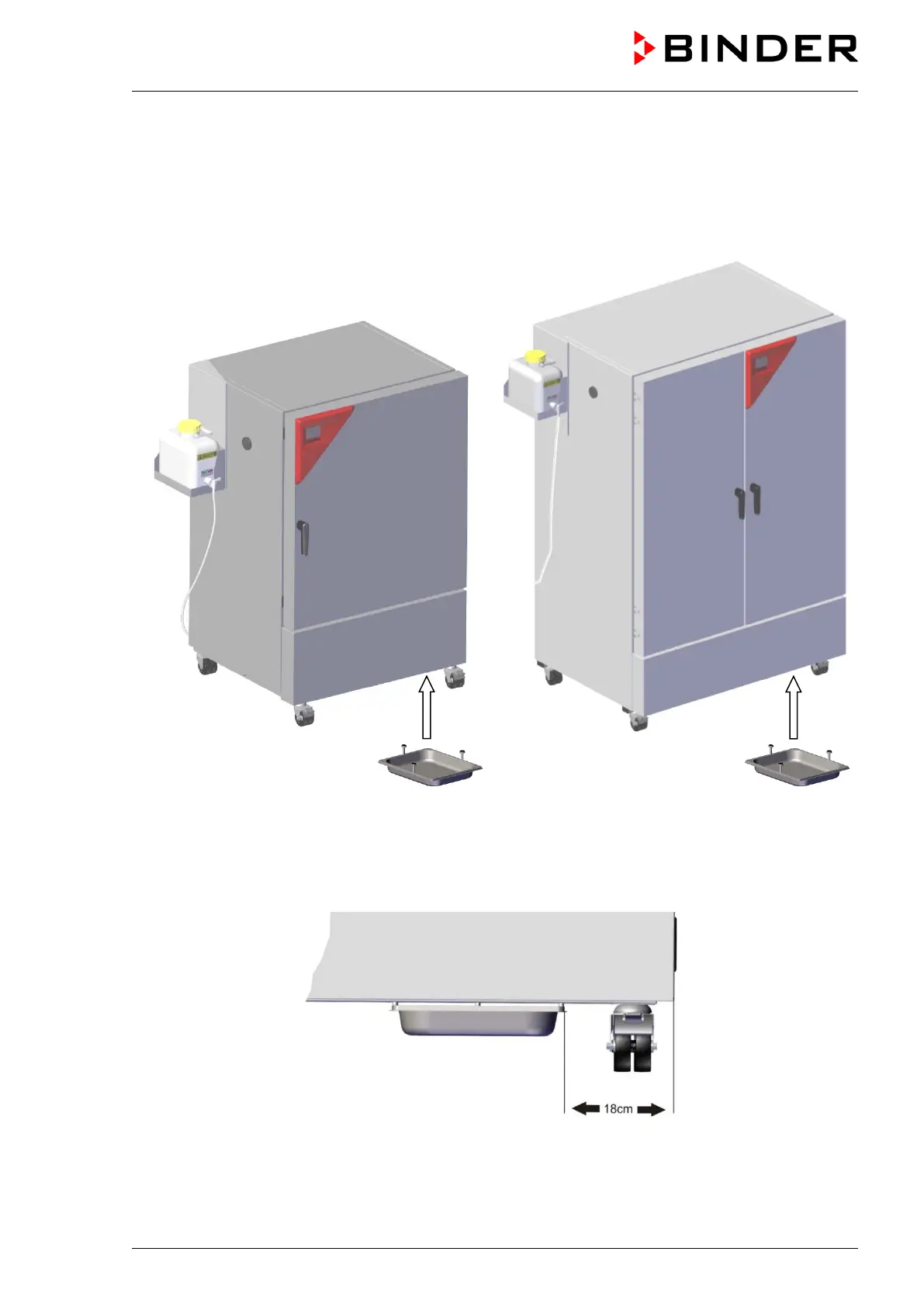

Figure 15: Mounting the condensate collection pan to the chamber
Figure 16: Positioning the condensate collection pan (front view)
