KBF-S / KBF-S-UL (E6) 11/2021 page 26/95
For detailed information on operating the water treatment system BINDER Pure Aqua
Service and its function, please refer to the operating manual supplied with BINDER Pure
Aqua Service.

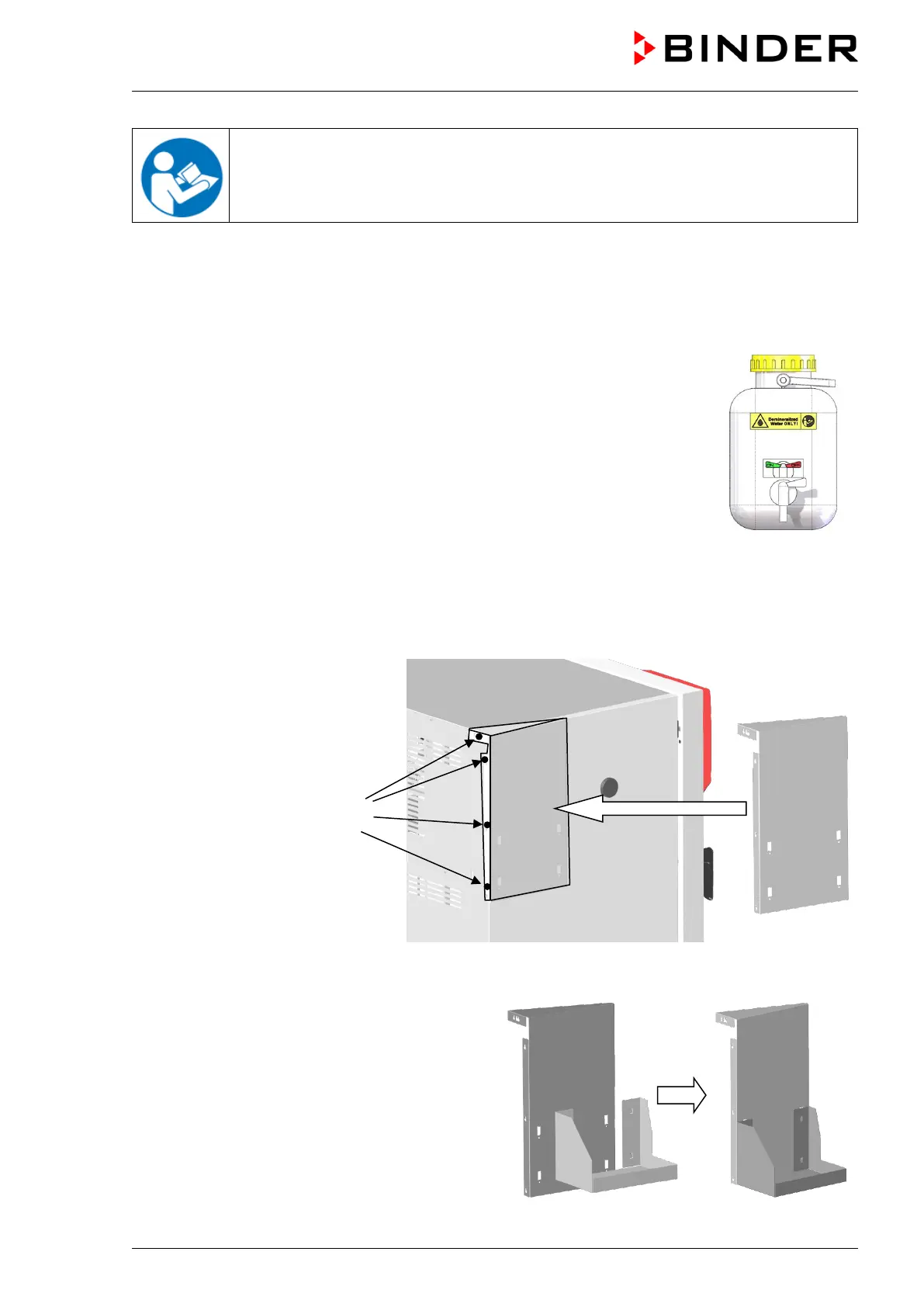

4.1.3 Installation of freshwater supply
To install the freshwater can proceed in the following order:
1. Fill the freshwater can.
As long as no hose is connected to the tap of the freshwater can, the tap must
be closed
Observe water quality and temperature (chap. 4.1.1).
For refilling later, you can remove the freshwater can from the support or fill it
on site with a suitable aid (water hose, watering can). When filling on site, the
existing hose connection can remain on the freshwater can.
Figure 7: Freshwater can with closed tap
2. Establish the hose connection to the freshwater can
The freshwater hose (2 mm wall thickness) is firmly connected to the chamber. Attach the free hose
end to the connection of the freshwater can and secure it at the top and bottom with the 2 supplied
hose clamps.
3. Attach the can support mounting plate at the left side of the climatic chamber
Loosen 4 screws on the
chamber’s rear panel, at-
tach the can support
mounting plate and
tighten the screws again.
Screws
Figure 8: Attaching the
can support mounting
plate
4. Attach the can support to the can support mounting plate
Insert the four hooks of the can support into
the provided eyelets of the can support holder
Figure 9: Attaching the can support to the
can support mounting plate
