BIRD FlightHawk - Match Measurement

FlightHawk RF Test Set
86
Match Measurement

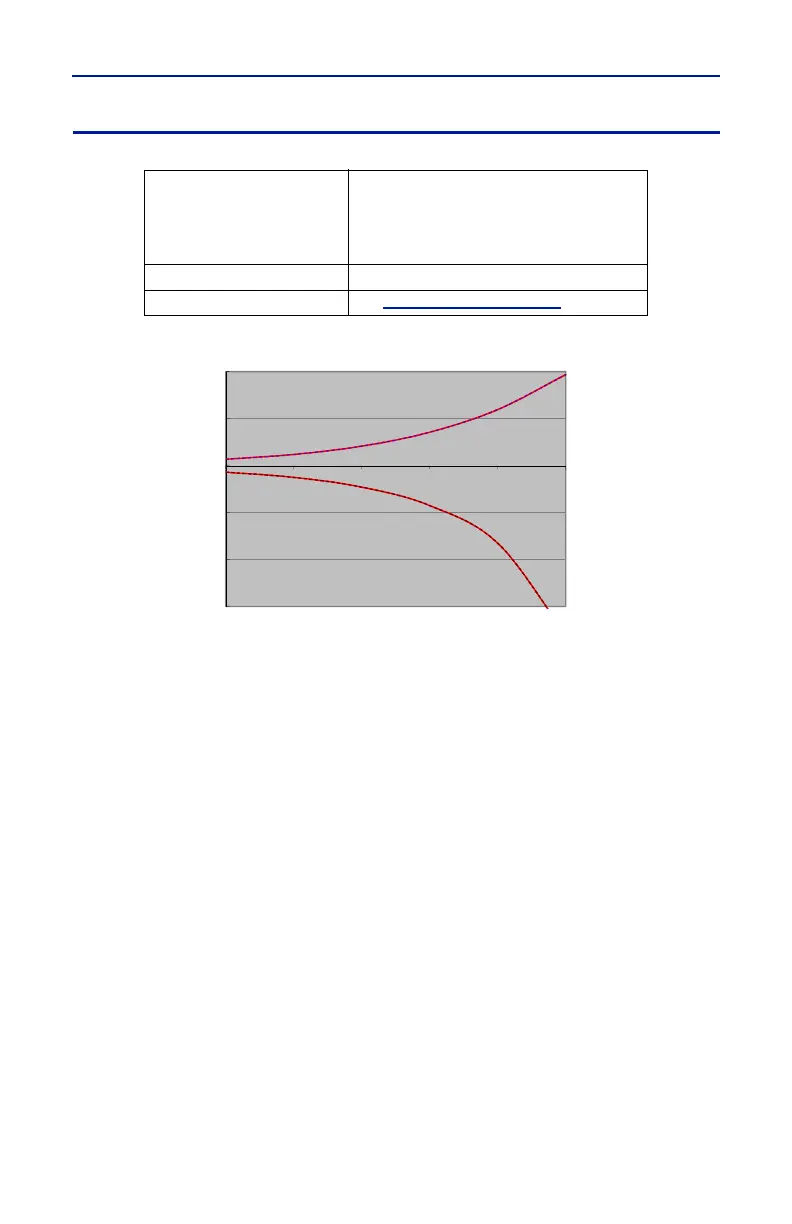

Figure 74 Match Measure Uncertainty
Measurement Range:
Return Loss
Rho ()
VSWR
0 to 23 dB
0.07 to 1.0
1.15 to 99.9
Forward Power, Min 0.05 W
Measurement Uncert. See
Figure 74 on page 86 .
-6
-4
-2
0
2
4
-25 -20 -15 -10 -5 0
Uncertainty(dB)
Return Loss
