RF Power Measurement
49
8. Connect RF line so that the arrow on the sensor points towards the load.

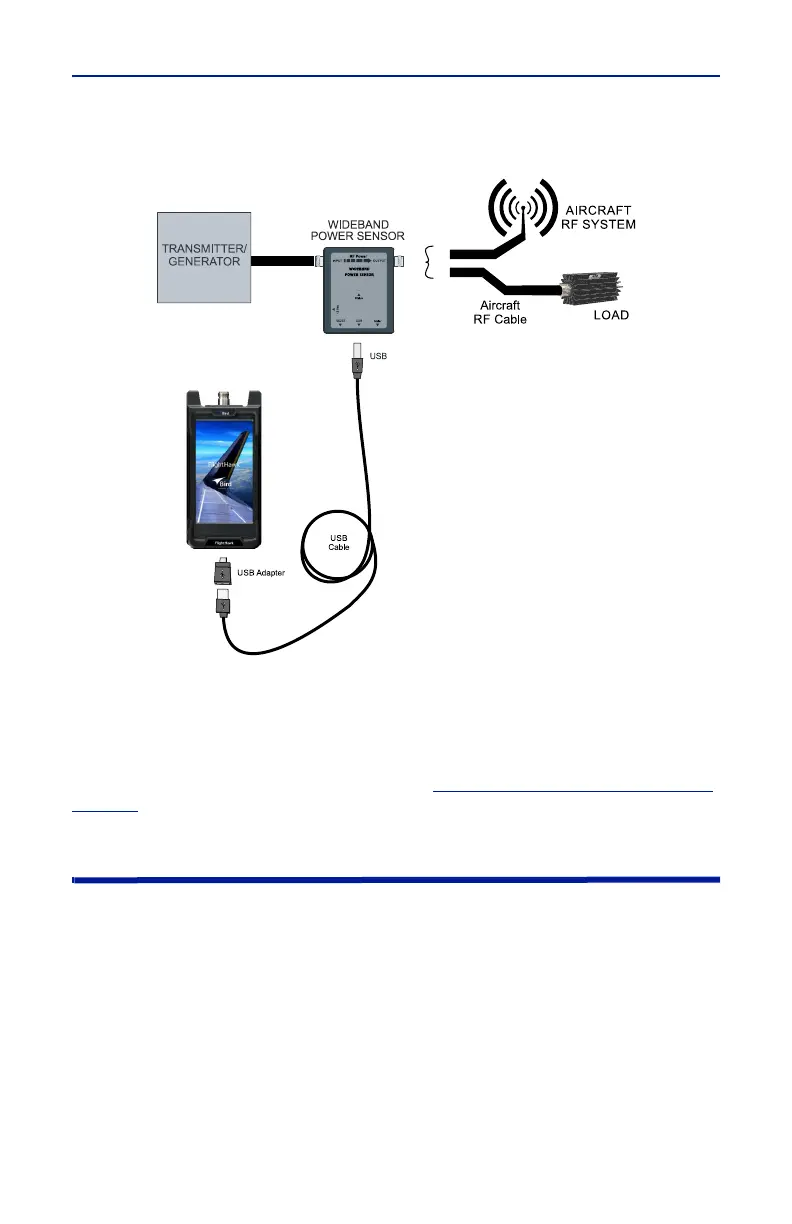

Figure 48 RF Power Measurement Setup
Note: Risk of unintentional signal transmission, broadcast or
interference! Always disconnect transmit and/or receive antenna. Refer
to your official maintenance manual or diagnostic procedure for exact
test instructions.
For a description of displays and menus, see
"Sensor Displays and Menus" on
page 51
.
Wideband RF Power Sensor (WPS) Measurements
The 5017D-AV can be used to measure:
Forward RF Power
Reflected RF Power
Peak Power
Burst Power
Match Measurements
Duty Cycle (only displayed when Avg is selected for Measurement Type)
