Adjusting the trace within the selected scale
Note: Scale settings only affect the active trace, if more than one trace
is currently displayed, select the desired trace before changing scale.
1. Press SCALE icon. See
Figure 7 on page 13
.
2. Select one of the following from the menu:
a. For Manual Operation:
Press Top to change upper limit of the display
Press Bottom to change the lower limit of the display
b. For Auto Scale:
Press Auto Scale for the system to choose the best fit for the active
trace.
Note: The scale can also be dynamically changed by pressing and
dragging the trace up or down in the display window.

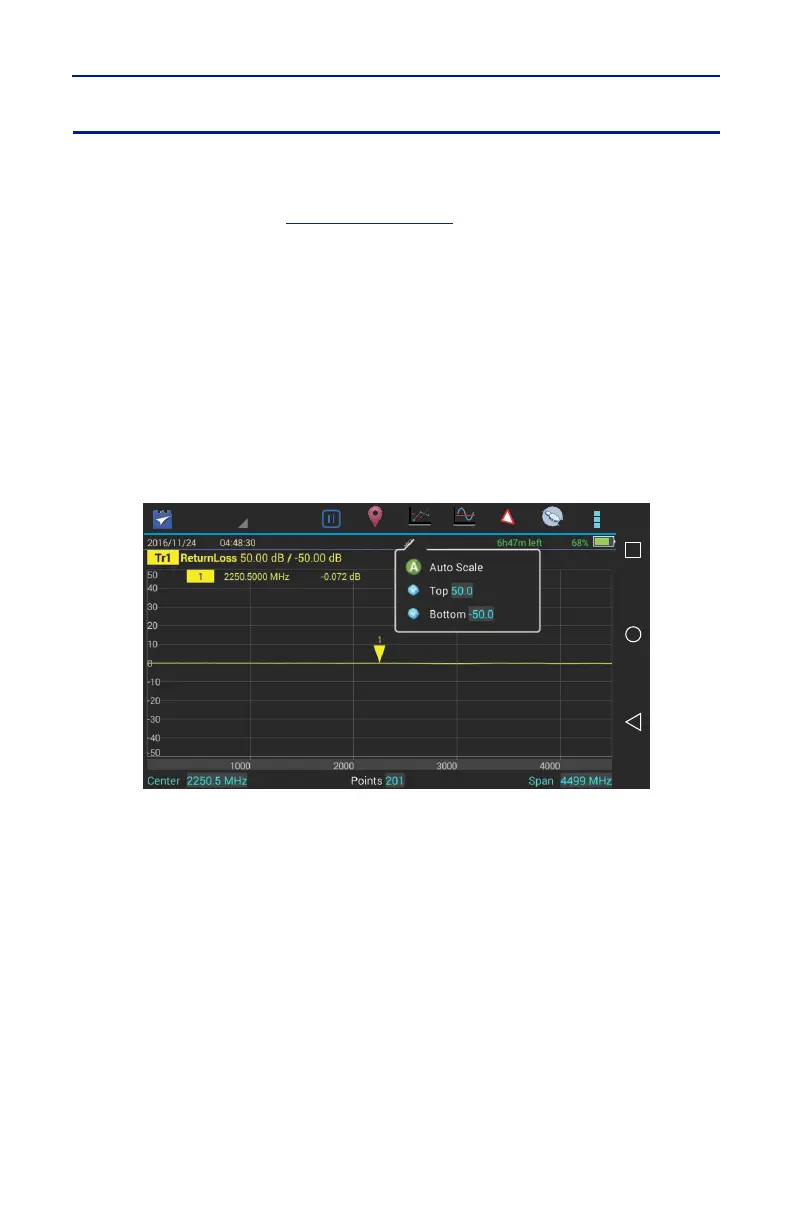

Figure 7 Adjusting the Trace
To Next Page
