CHAPTER 2: OVERVIEW
2.5.2 LIG1080A
3, 4, 5
6
7
8
2
1

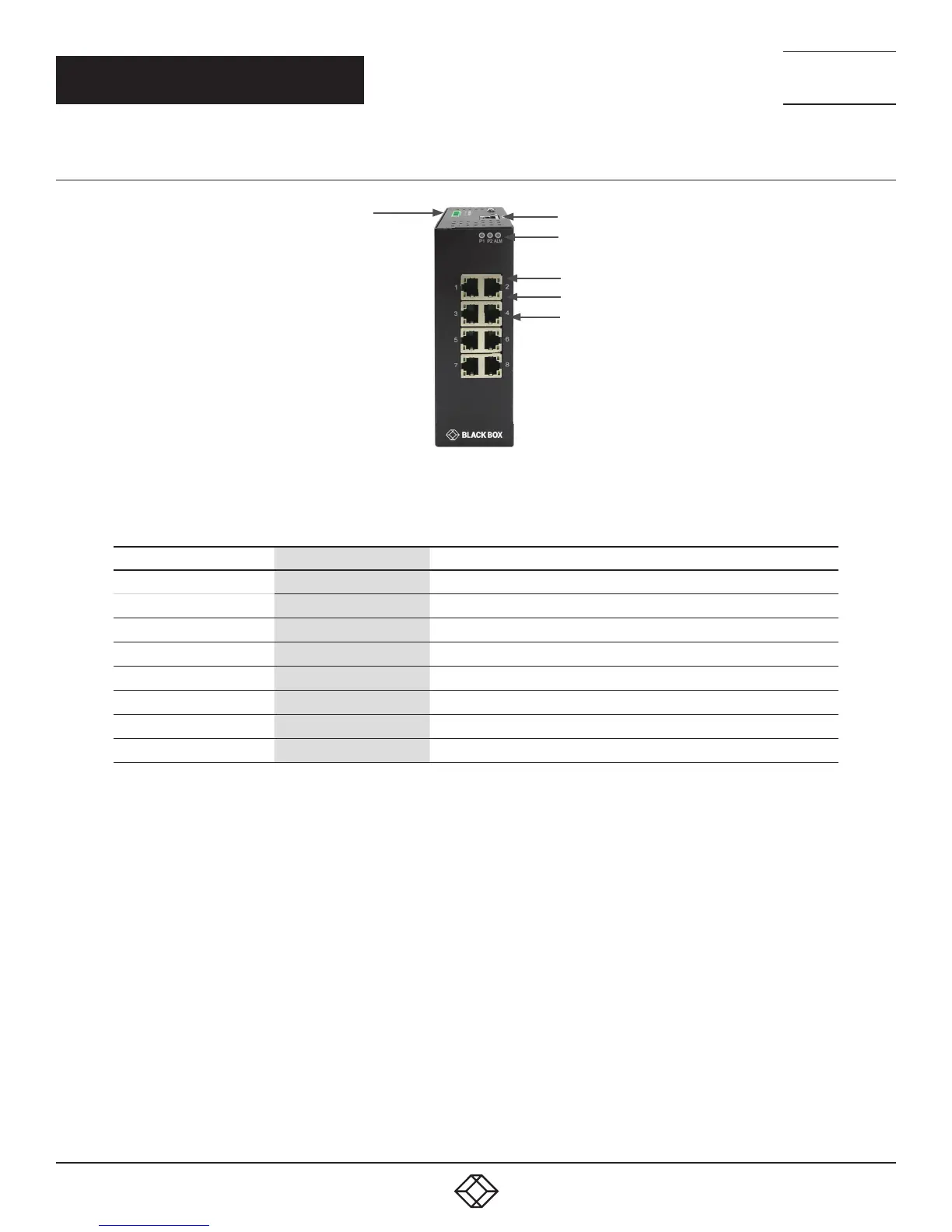

FIGURE 2-3. LIG1080A TOP AND FRONT PANELS
TABLE 2-2. LIG1080A COMPONENTS
NUMBER IN FIGURE 2-3 COMPONENT DESCRIPTION
1 (1) 6-pin terminal block Power 1, Power 2 and Alarm connections
2 (1) RJ-45 connector Links to console for management
3 (1) P1 LED Lights when power to Power Supply 1 is ON
4 (1) P2 LED Lights when power to Power Supply 2 is ON
5 (1) Alarm LED Lights to indicate an alarm
6 (8) Link/Activity LEDs Lights when there is activity on the respective port
7 (8) Speed LEDs Lights when port is operating at 100 Mbps
8 (8) RJ-45 connectors Connect to devices
