CHAPTER 3: INSTALLATION
3.1 DIN RAIL MOUNTING
Follow these steps to mount the switch on a DIN rail.
1. Screw the DIN-Rail bracket on with the bracket and screws in the accessory kit.

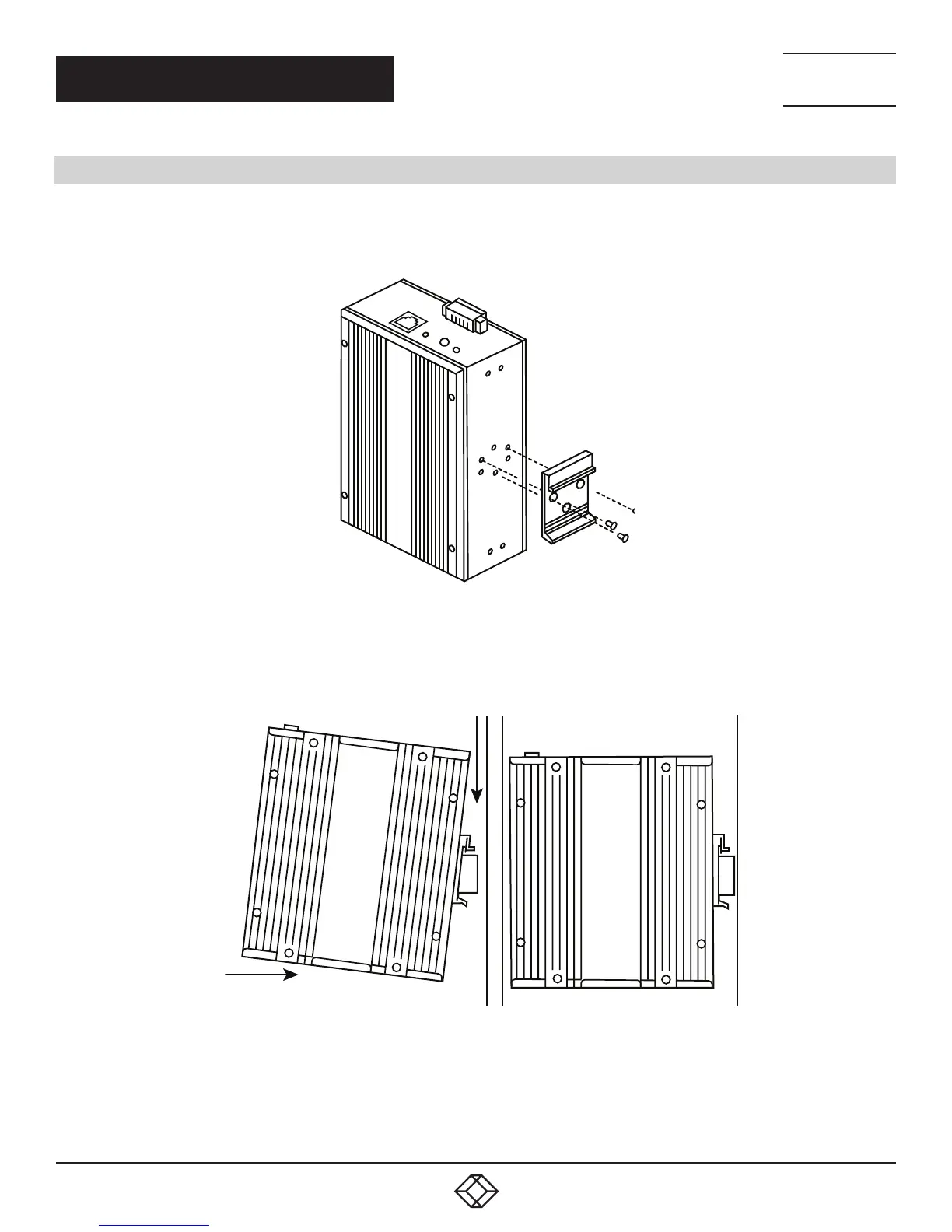

FIGURE 3-1. DIN RAIL MOUNTING STEP 1
2. Hook the unit over the DIN rail.
3. Push the bottom of the unit towards the DIN Rail until it snaps into place.
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
FIGURE 3-2. DIN RAIL MOUNTING STEPS 2 AND 3
