CHAPTER 8: IGMP APPLICATION

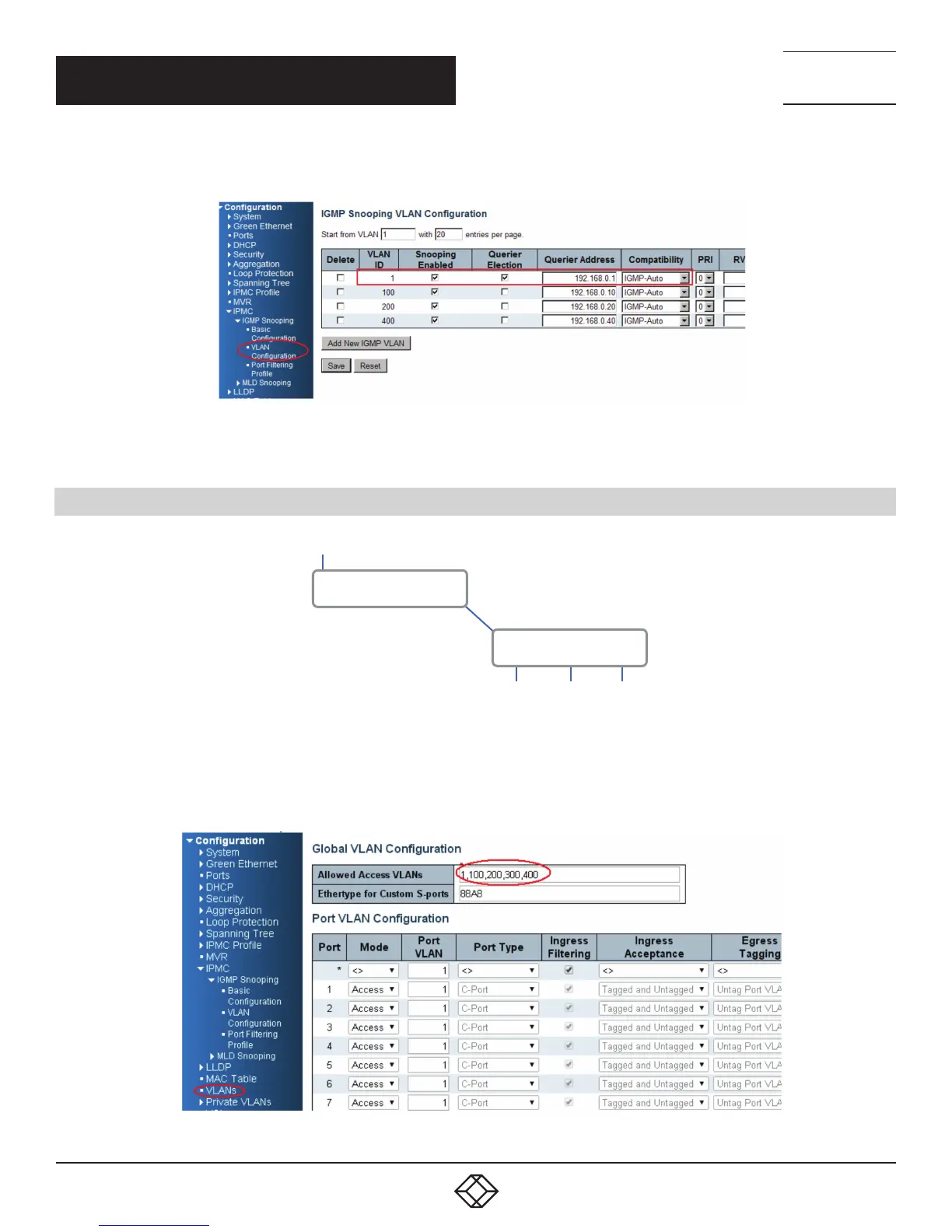

4. Go to “Configuration —> IPMC —> VLAN Configuration” to select the “Snooping Enable” check box and set the VLAN ID of port14.
FIGURE 8-5.
8.3 EXAMPLE 3
Multicast server
L3 switch querier
Industrial Ethernet Switch
P14
Client 1 Client 2 Client 3
FIGURE 8-6. EXAMPLE 3
In this scenario, these clients belong to multiple VLANs, so you have to create more one VLAN to be the agent for all client VLANs.
1. To create a VLAN: go to ”Configuration —> VLANs —> Allow Access VLANs”, then set port 14 to be a vlan200 member port.
FIGURE 8-7.
