CHAPTER 2: OVERVIEW
2.5.6 LIE1082A
3
4
5, 6, 7
8
10
9
11

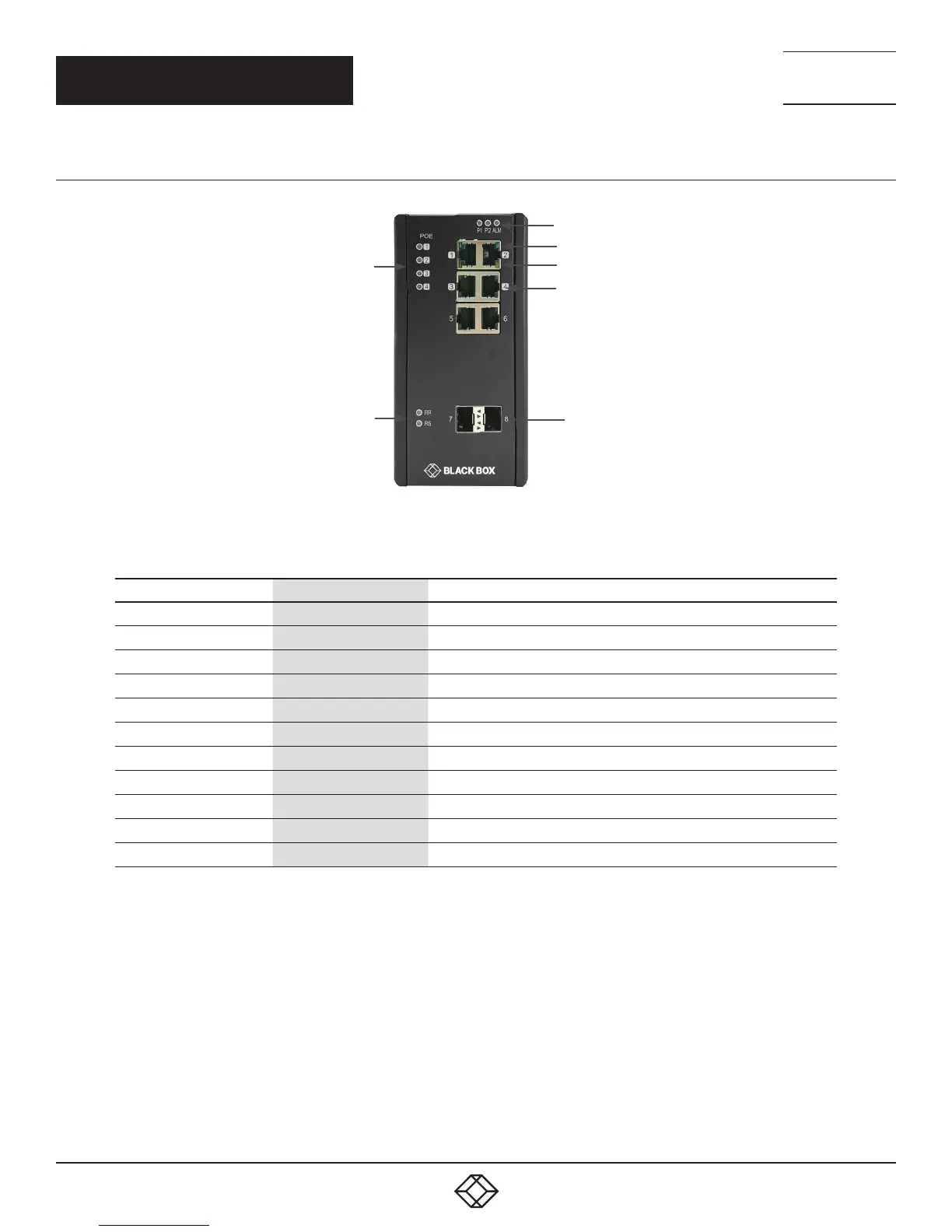

FIGURE 2-8. LIE1082A FRONT PANEL
TABLE 2-6. LIE1082A COMPONENTS
NUMBER IN FIGURE 2-7 COMPONENT DESCRIPTION
1 (not shown) (1) RJ-45 connector Links to console for management
2 (not shown) (1) 6-pin terminal block Power 1, Power 2 and Alarm connections
3 (6) PoE LEDs Light when port is using Power over Ethernet (PoE)
4 (1) RR LED, (1) RS LED Ring Role, Ring Status (see Table 3-2 in Section 3.14)
5 (1) P1 LED Lights when power to Power Supply 1 is ON
6 (1) P2 LED Lights when power to Power Supply 2 is ON
7 (1) Alarm LED Lights to indicate an alarm
8 (6) Link/Activity LEDs Lights when there is activity on the respective port
9 (6) Speed LEDs Lights when port is operating at 100 Mbps
10 (6) RJ-45 PoE connectors Connect to PoE devices
11 (2) SFP module cages Link to fiber optic SFP modules
