CHAPTER 7: QOS APPLICATION
CLI CONFIGURATION COMMAND
interface GigabitEthernet 1/1
switchport trunk native vlan 100
switchport trunk allowed vlan 1,100
switchport trunk vlan tag native
switchport mode trunk
!
interface GigabitEthernet 1/2
switchport trunk native vlan 100
switchport trunk allowed vlan 1,100
switchport trunk vlan tag native
switchport mode trunk
7.2 EXAMPLE 2: SPQ WITH SHAPING
We send 2 Streams (Stream0, Stream1) from PORT-1 to PORT-2. Both Streams each have 100 Mbps. Stream0 includes VLAN
Priority0, Stream1 includes VLAN Priority7. Stream 3 and Stream 4 are only for learning to prevent the traffic from flooding.
Expected Result:
We expect that PORT-2 only can receive 20 Mbps of Stream1 ad 80 Mps of Stream2. This explains how SPQ works on the switch.
P0
P7
P6
P5
P4
P3
P2
P1
Q0 (lowest queue)
Q7 (highest queue)
Q6
Q5
Q4
Q3
Q2
Q1
P2: 20 Mbps
P0: 80 Mbps

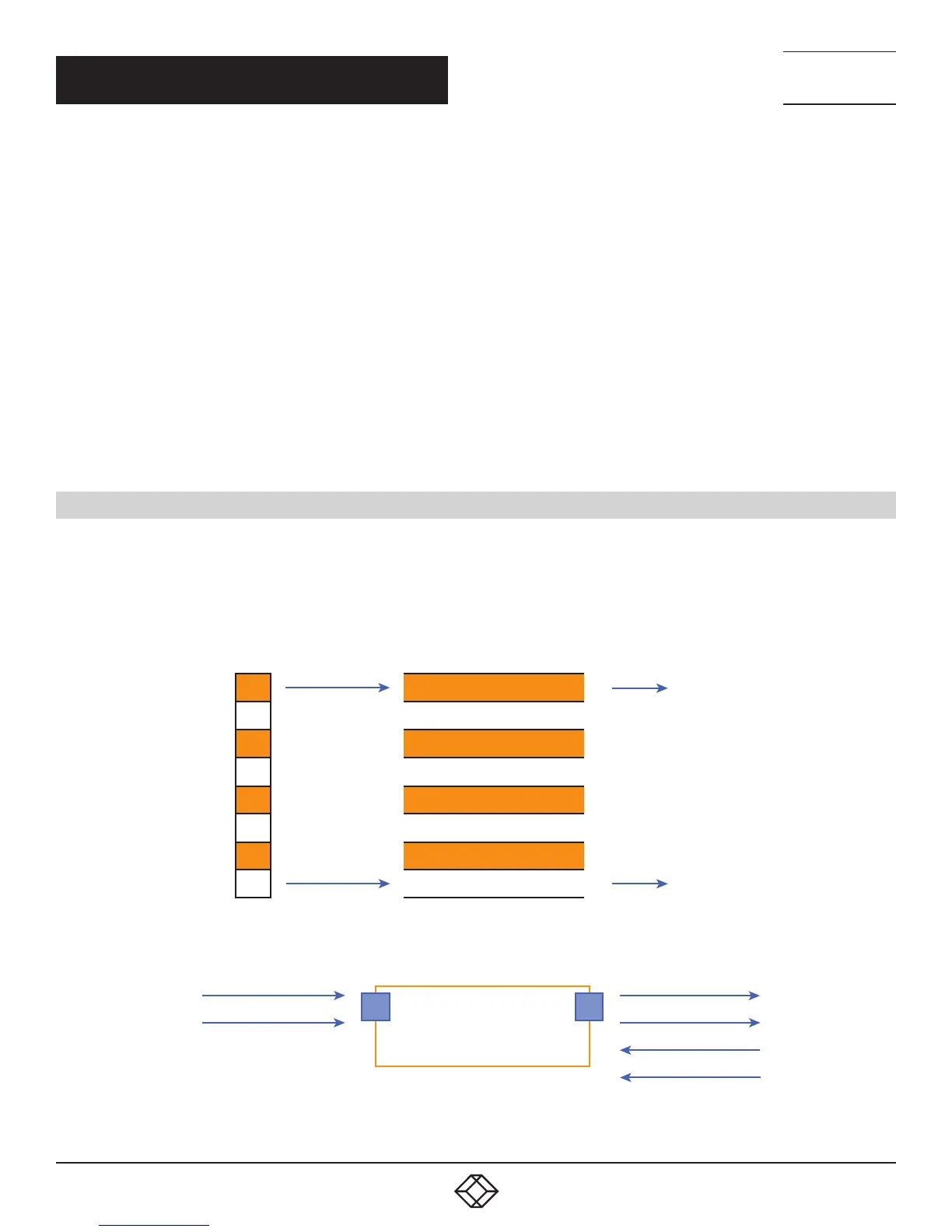

FIGURE 7-5. VDSL PORT VLAN PRIORITY AND QUEUE MAPPING
Stream0
P7, 100 Mbps, 1518 bytes
P0, 100 Mbps, 1518 bytes
Stream1
Stream3 for learning
P7, 20 Mbps, 1518 bytes
Stream1
GE1
GE2
P0, 80 Mbps, 1518 bytes
Stream0
Stream4 for learning
FIGURE 7-6.
