CHAPTER 7: QOS APPLICATION
WEB MANAGEMENT

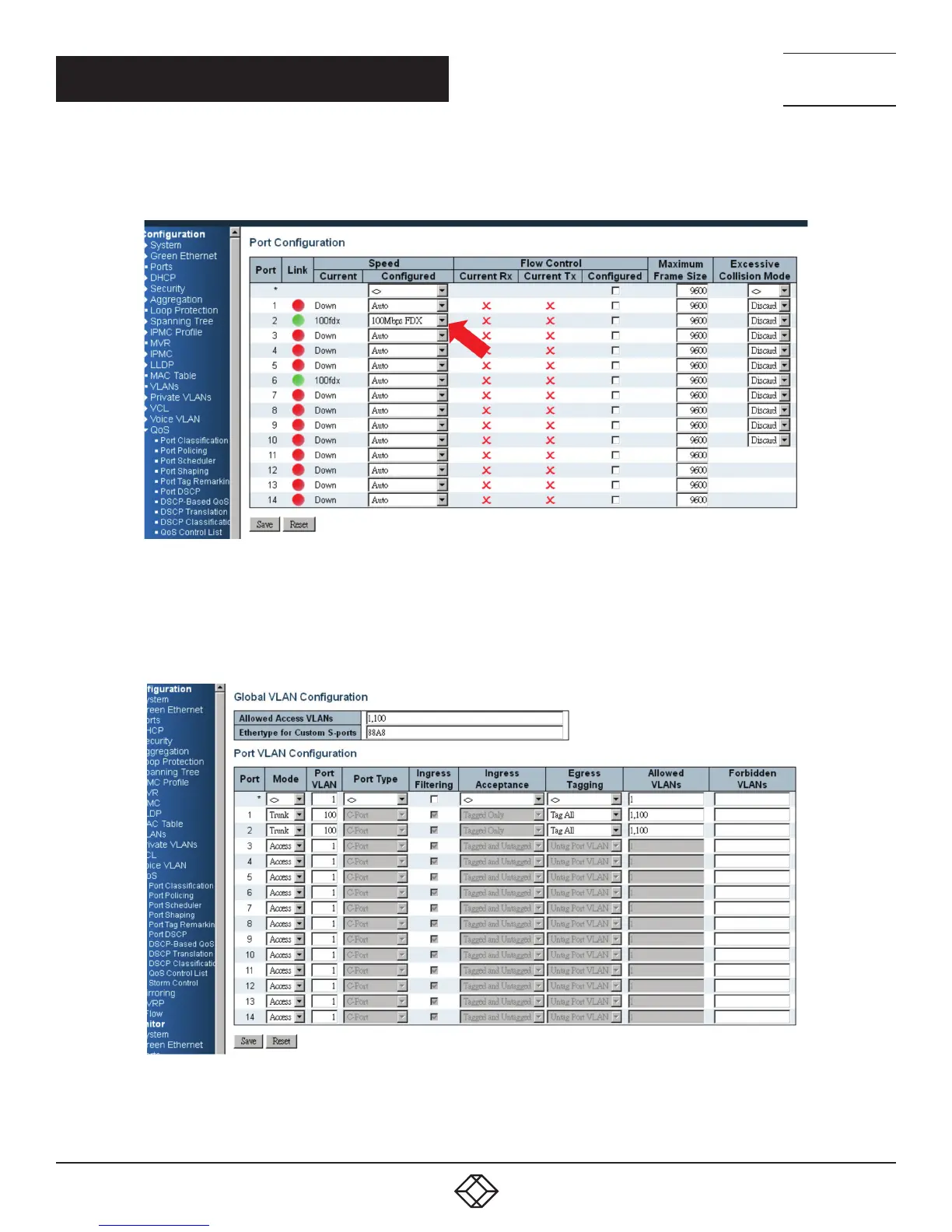

STEP 1: Go to Configuration —> Ports —> set port 2 link speed to 100 Mbps full duplex.
FIGURE 7-3.
STEP 2: Select Configuration —> VLANs —> Create a VLAN with VLAN ID 100. Enter a VLAN name in the Name field. Here we set
tagged VLAN100 on PORT-1 and PORT-2.
FIGURE 7-4.
