CHAPTER 3: INSTALLATION

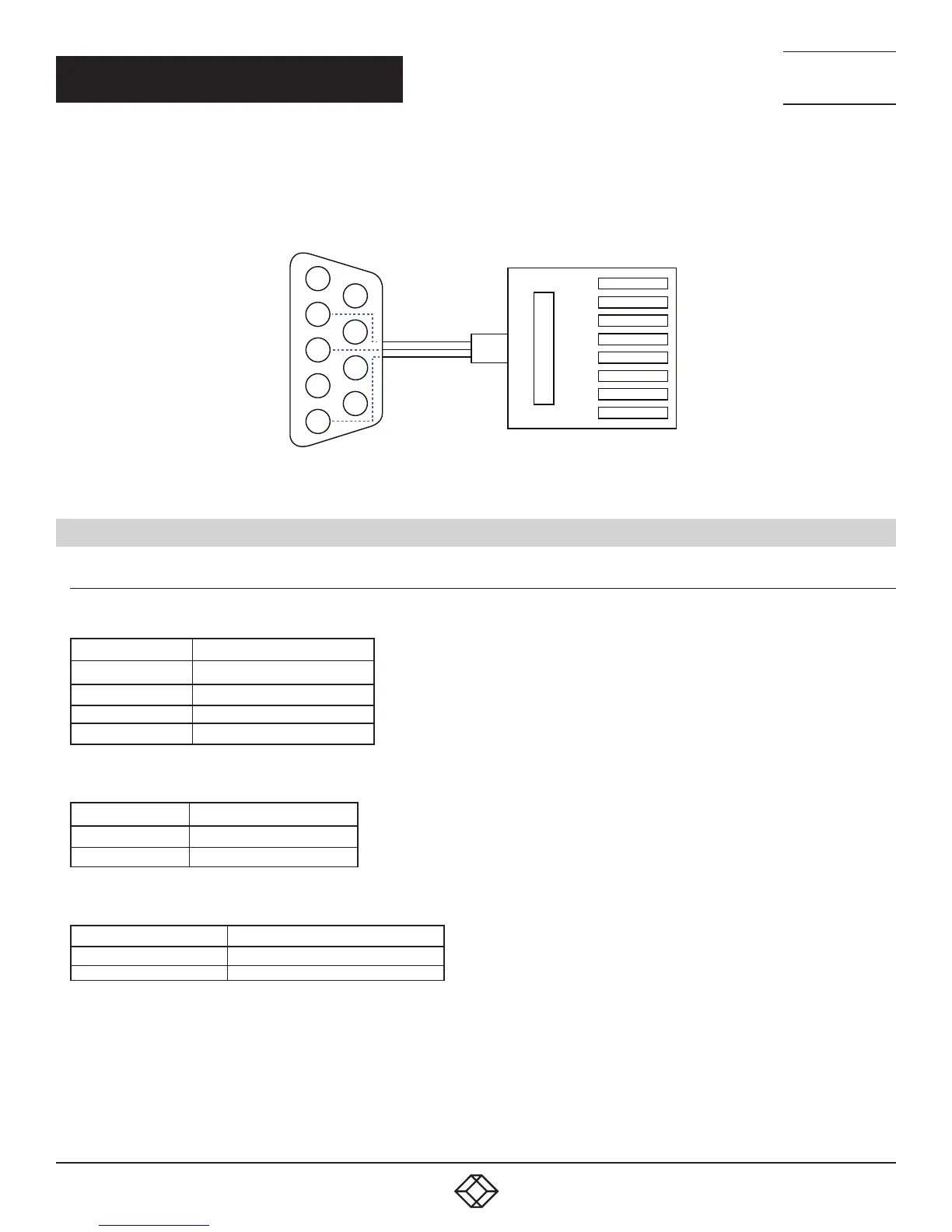

To connect the host PC to the Console port, an RJ-45 (male) connector-to-RS232 DB9 (female) connector cable is required.
The RJ-45 connector of the cable is connected to the Console port of the switch; the DB9 connector of the cable is connected
to the PC COM port. The pin assignment of the Console cable is shown below:
1
1
2
3 (RD)
4 (TD)
5
6 (DGND)
7
8
6
7
4
8
9
3
TD
2
RD
5
DGND
FIGURE 3-12. CONSOLE CABLE
3.10 WEB INTERFACE INITIALIZATION (OPTIONAL)
WEB BROWSER SUPPORT
IE 7 (or newer version) with the following default settings is recommended:
Language script Latin based
Web page font Times New Roman
Plain text font Courier New
Encoding Unicode (UTF-8)
Text size Medium
Firefox with the following default settings is recommended:
Web page font Times New Roman
Encoding Unicode (UTF-8)
Text size 16
Google Chrome with the following default settings is recommended:
Web page font Times New Roman
Encoding Unicode (UTF-8)
Text size Medium
