CHAPTER 10: POWER OVER ETHERNET APPLICATION
4. Web Configuration

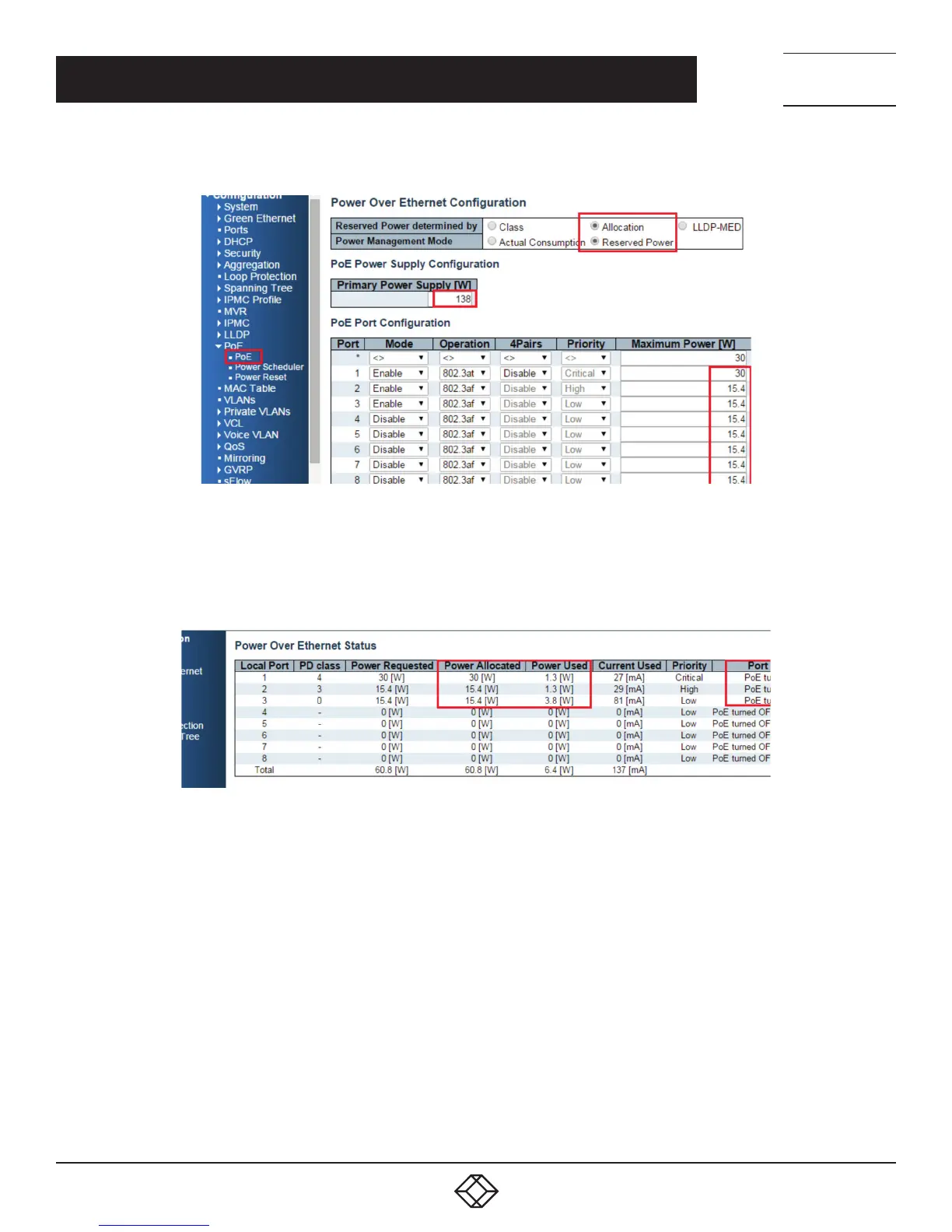

FIGURE 10-5. WEB CONFIGURATION
5. Test Result: PoE port status can be monitored by Web: Monitor —> PoE
Since power is reserved for each port in advance, each powered device can use the power budget of its corresponding port without
exceeding its maximum power.
FIGURE 10-6. TEST RESULT
