Blackmagicdesign Videohub Master Control Pro - Configuring Control Panels

Videohub Smart Control Pro
Videohub Smart Control Pro is a 1 rack unit mountable control panel with 48 backlit pushbuttons
and Ethernet connectivity.
When configured for a single SDI destination, such as a monitor or deck, the pushbuttons
can instantly switch between 48 different SDI sources on the same Videohub router. When
configured for multiple SDI destinations, destination buttons become gold, source buttons
become white and the lower right button can be configured as a take button and illuminates
red. Macro buttons illuminate green when enabled and each one can be configured to perform
up to 16 simultaneous crosspoint switches.

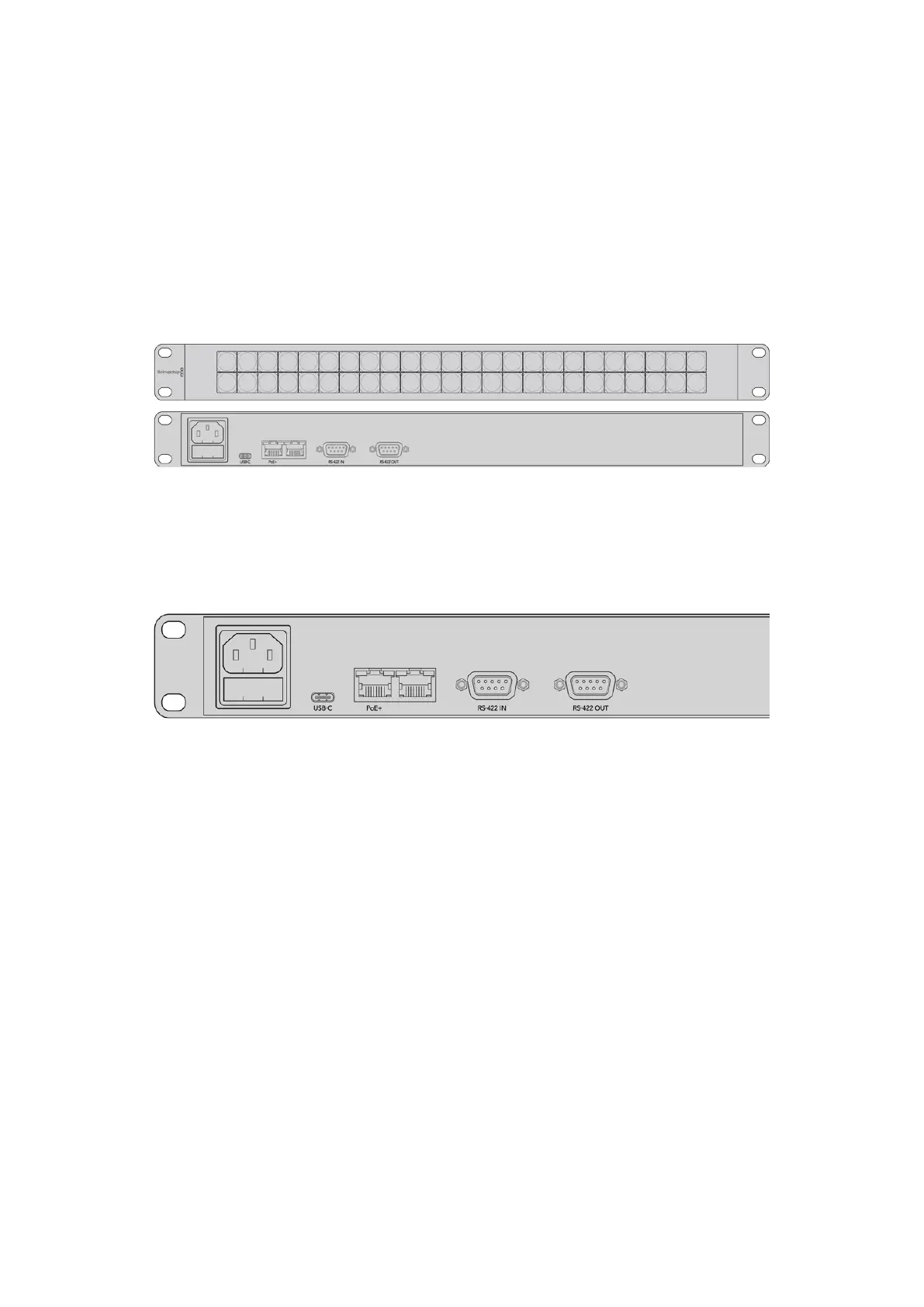

Videohub Smart Control Pro
Configuring the Control Panel
A USB connection to a computer is used to configure the network settings of the
VideohubController.
Plug the unit into a computer via USB-C to configure network settings
31Videohub Hardware Control Panels
