Installation
7
Oven Assembly
DOUBLE SECTION ASSEMBLY
NOTE: Oldstyleovensrefer tounits withpainted ex-
posed rear angle. New style ovens refer to
unit s with rea r an gle iron en c lo se d in steel.
The following instructions apply to stacking two
new style ovens.
1. Secure the short legs to the bottom sections
as described.
2. Place the upper section in position on top of
the lower oven.
3. Attach the stacking brackets using the re -
maining 5/16” bolts shipped with the ovens.
4. Attach the flue connector.
The following instructions apply to stacking a new
styleovenonanoldstyleoven.
1. Secure the short legs to the bottom sections
as described.
2. Place the upper section in position on top of
the lower oven.
3. Attach the stacking brackets using the re -
maining 5/16” bolts shipped with the ovens.
4. Drill a clearance hole for a 5/16” bolt in the
angle iron of the old style oven. Use the holes
in the stacking brackets as a pilot.
5. Attach the stacking brackets to the old style
ovenwith the 5/16” boltsand nuts providedin
the kit.
6. Attach the flue connector.
WARNING!!
Whenstackingovensbesuretoremove
thesingleovenflueboxespriortoattach-
ing three-piece connector.
OVEN LEVELING
After assembly, the oven should be leveled and
moved to the operating location.
1. The oven can be leveled by adjusting the feet
or casters located on the bottom of each leg.

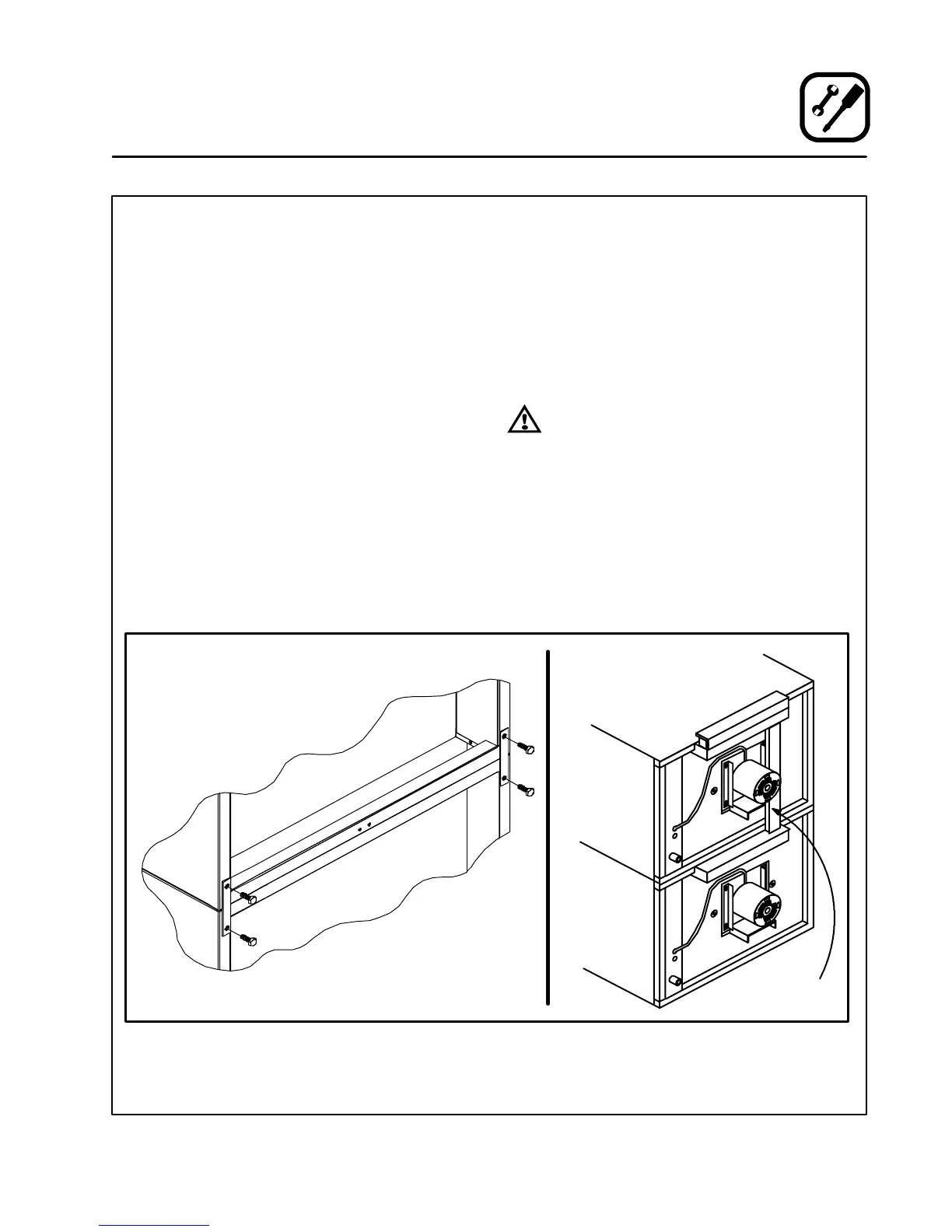

Flue
Connector
Figure 7
