Oven Components
Combustion Cover --- provides access to the
combustion compartment on gas ovens.
Combustion Compartment --- contains combus-
tion burners on gas ovens.
Combustion Burners --- provide heat to the bak-
ing chamber on gas ovens.
ControlPanel --- containswiringandcomponents
to control the oven operation.
Oven Racks --- five racks are provided standard.
Additional racks are available.
Rack Supports --- hold oven racks.
Blo werWheelCover --- locatedonthebackinteri-
or wall of the oven. Protects the blower wheel.
Blo wer Wheel --- spins to circulate hot air in the
baking chamber.
Convection Motor --- provides power t o turn the
blower wheel.
Oven Lights --- provide lighting inside the baking
compartment.
Combustion
Cover
Combustion
Burners
Control
Panel
Convection
Motor
Blower
Wheel
Blower
Wheel Cover
Rack Support
Oven Rack
Oven
Lights

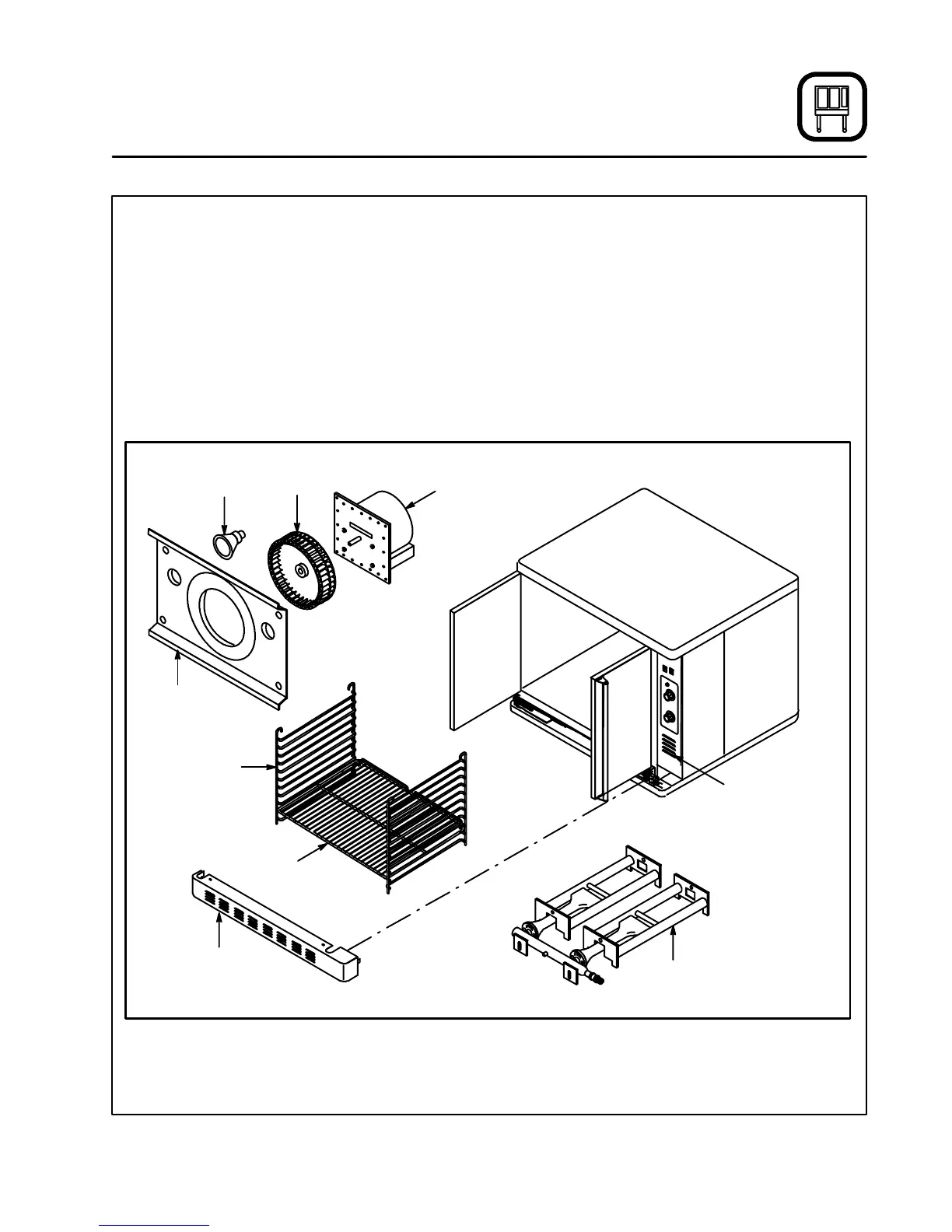

Figure 2
