100
Manual version: 1.01/ Febr. 2017
Manual rev.: 1
Údržba stroje
Wartung /

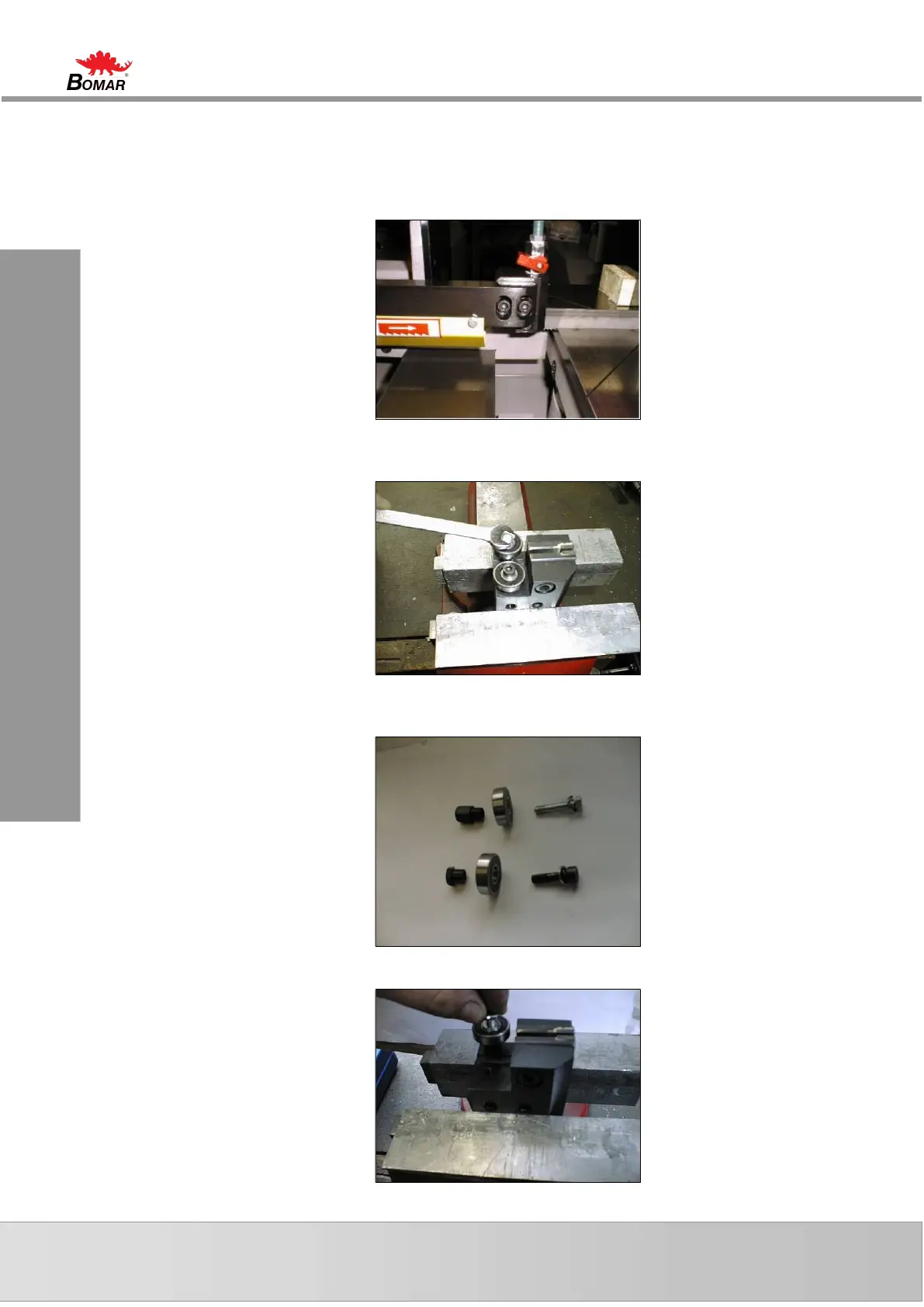

4.9.2. Saw band guiding rollers replacement
If the saw band is not sufficiently guided by guiding rollers and/or if the rollers are
obviously worn, the rollers should be replaced.
Attention! Guiding rollers must be replaced together on both guide cubes!
10. Remove the hosepipe leading to the cooling agent and dismantle saw band
and saw band guide cube.
11. Grip the guide cube in the vice and screw out both fastening screws of the
eccentrics.
12. Pull both guide rollers from their eccentrics.
