83
Údržba stroje
Wartung

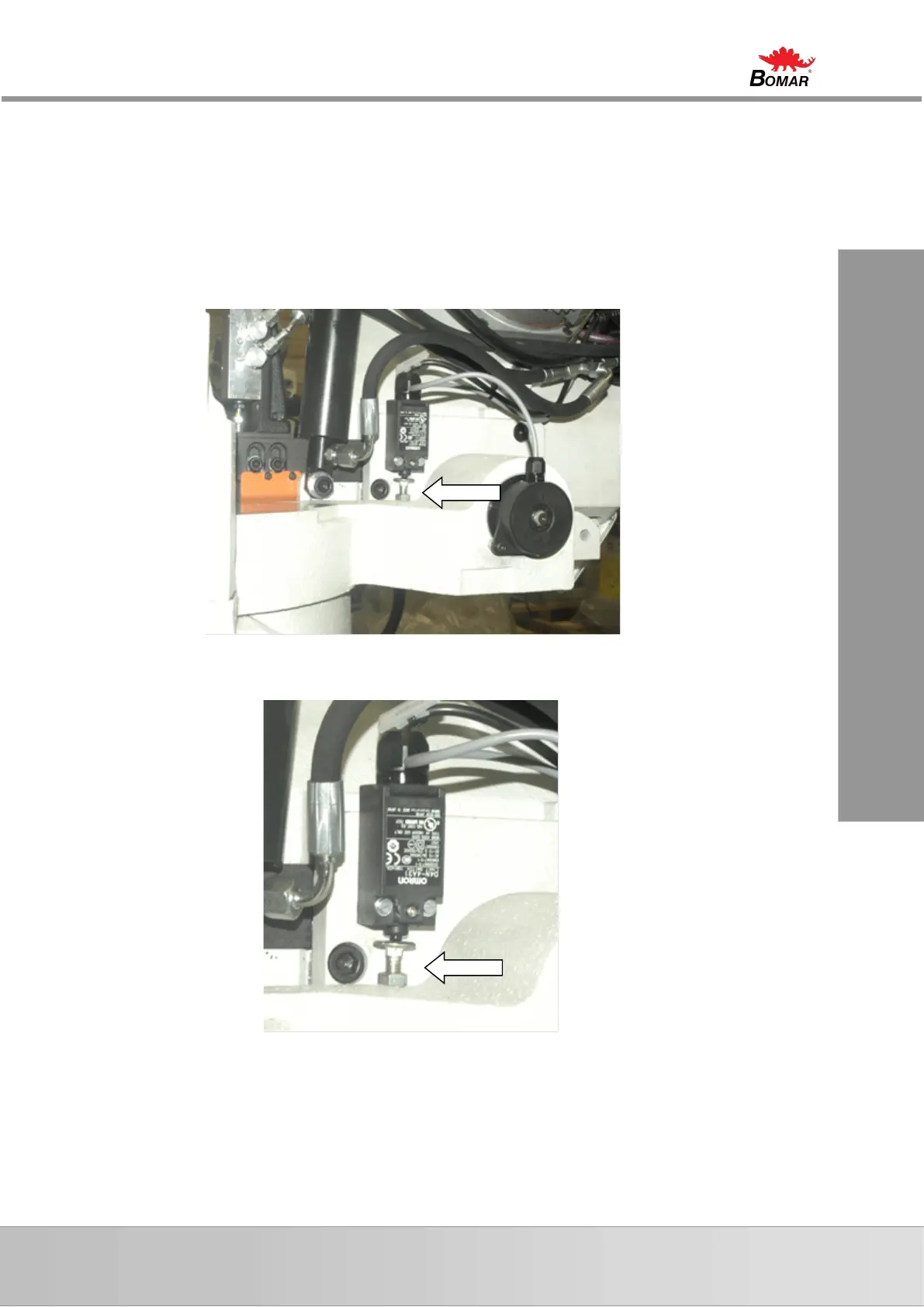

4.4.7. Adjustment of the limit switch of saw frame lower stop
If you have adjusted the lower stop of the saw frame, the limit switch adjustment
inspection is required
Setting check
Lower the arm to the lowest position. If the arm lays on the lower stop and the
switch reacts, the setting is correct. In other case carry out the switch setting
Switch setting
1. Release the nut of the stop screw and screw down the stop screw
2. Lower the arm to the lower stop and turn on the band driver
3. Screw out the stop screw until the band driver stops
4. Secure the screw with nut again and check the limit switch setting once
more
