52
Manual version: 1.01/ Febr. 2017
Manual rev.: 1

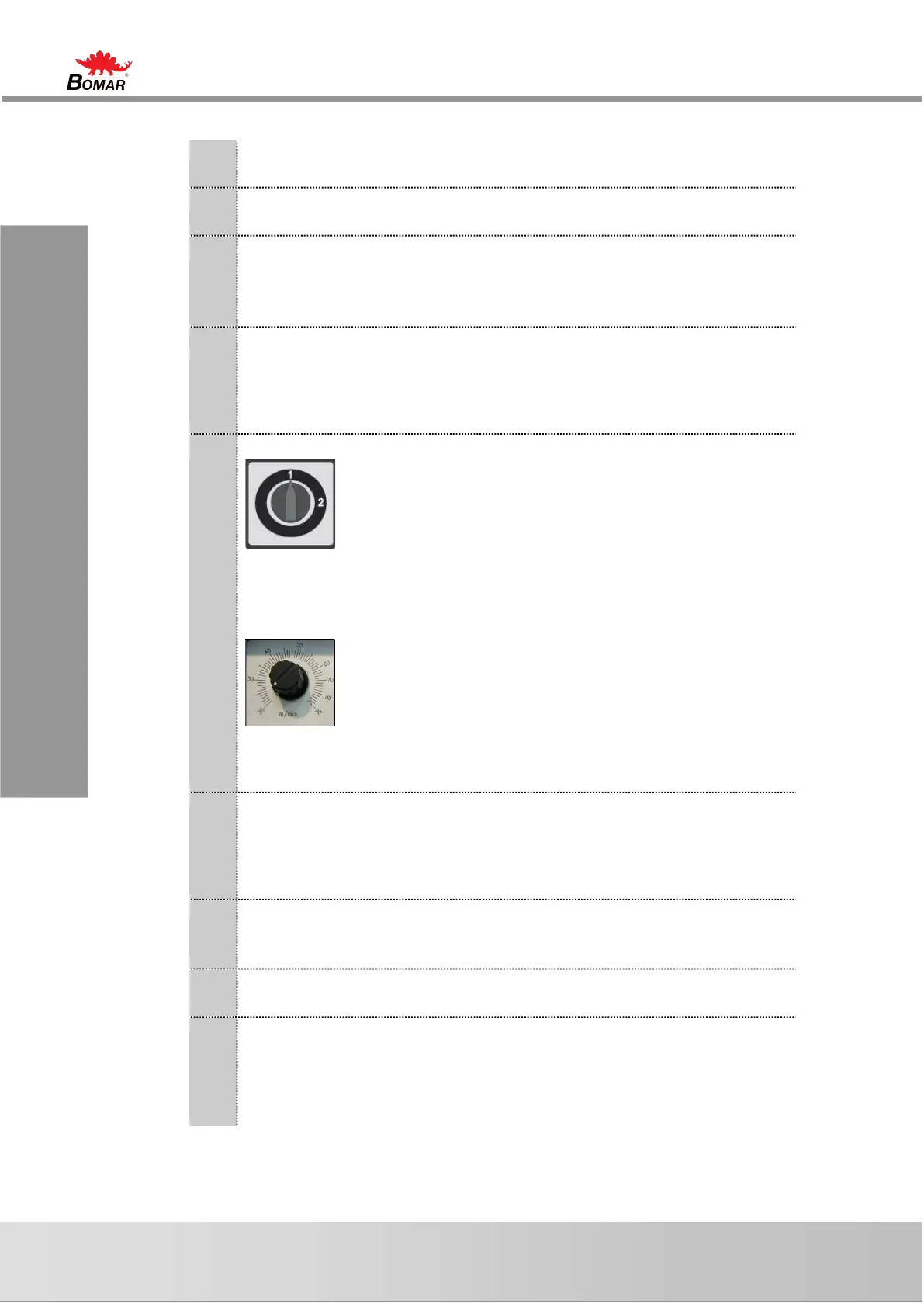

Ovládání stroje
Bedienung der Maschine
1
TOTAL – STOP button
Immediately stops the machine in a case of emergency.
2
Safety circuit
Press button to turn on the safety circuit
3
START
Starts the drive of the saw band..
STOP
Stops the drive of the saw band
4
Arm height setting
According to the scale on the control panel, you can limit the maximum frame top position
at the working (semi-automatic cycle). Numbers on the scale indicate the distance between
saw blade and vice board near the fixed vice jaw.
Limiting the height of the arm can reduce the time of the cutting cycle.
5
Ergonomic 340.278 DGH without a frequency converter
Cutting speed switch
Serves to switch the speed of the saw band during cutting (40 or 80 m. min
-1
).
Ergonomic 340.278 DGH with a frequency converter
Frequency converter – setting of the cutting speed
Serves to set the speed of the saw band during cutting with the possibility of the frequency
converter (20 to 120 m. min
-1
).
6
Regulation valve
The regulation valve sets the speed of the descent of the saw arm into the cut. The speed is
limited by the setup of the pressure into the cut on the guiding cubes.
Note: If the throttle valve is tightened too much when being closed, the valve seat can be
worn out, which will cause leakage. Always tighten the valve gently.
7
Setting of the cooling mode of the saw band
By turning the knob into the corresponding position the required cooling mode is set.
See chapter regarding the setting of the cooling mode
8
Laserliner – optional equipment
Laser beam switch
9
Rapid shift – optional equipment
The rapid shift allows a faster descent of the arm into the cut than the maximum speed of
descent reached with the hydraulic regulation.
For acceleration of descent of the arm into the cut press the rapid shift button.
