M3452 vR8 EIP/PDP
36
4.2.6.1.1. ETHERNET / IP ADDRESSING SWITCHES

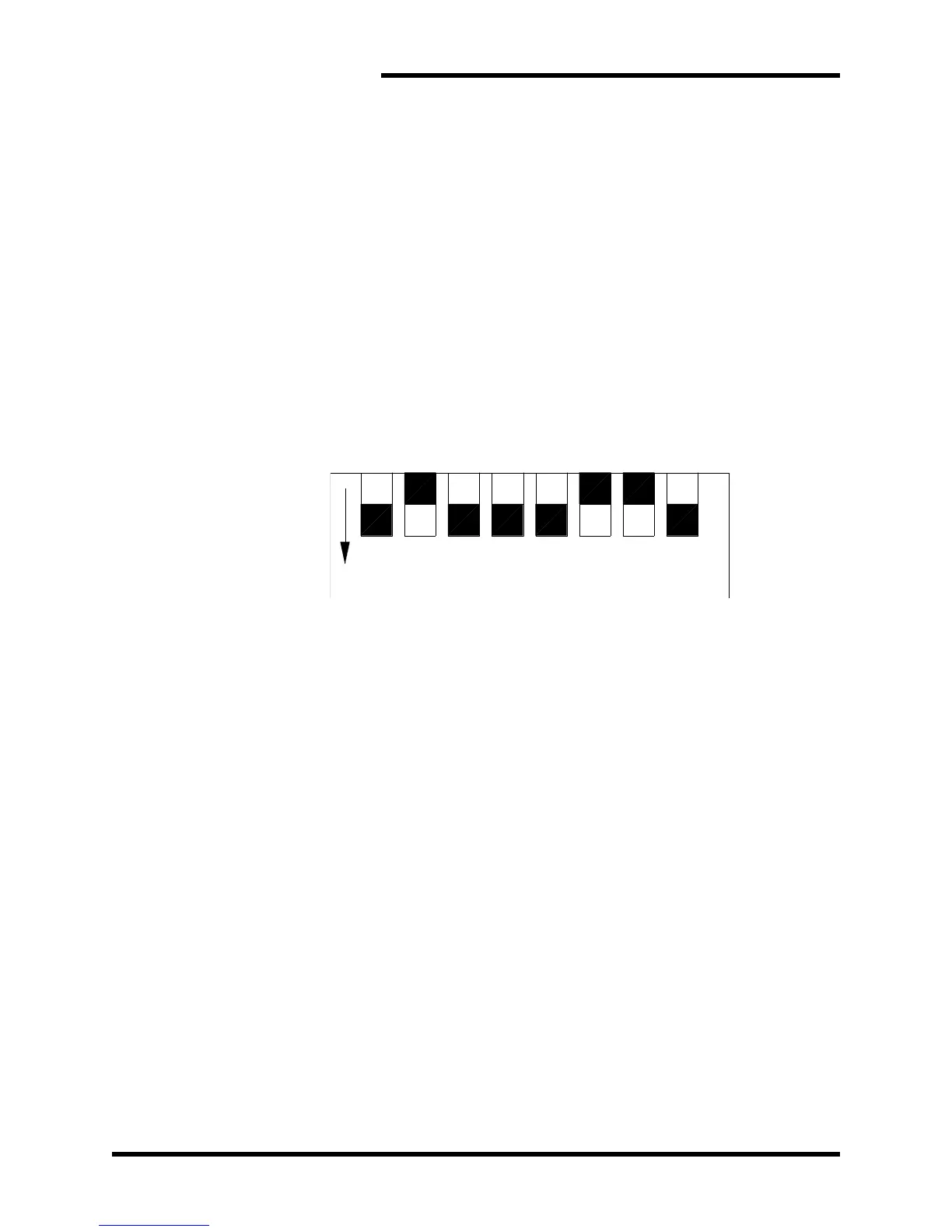

The DIP switches on the EtherNet interface card can be used to set
a static IP address. These switches are to the right of the EtherNet
connector.
If the switches are set to a non-zero value, the module will use the
following settings:
Please note that the switches are numbered backwards from the bit
numbers, the least significant bit is the rightmost switch.
If these switches are set to zero, the address used is the one set in
the online configuration screen, described below.
4.2.6.1.2. ONLINE MODULE CONFIGURATION WITH ANYBUS IPCONFIG
At first power-on, the module has no pre-configured static IP
address, and DHCP is off. To assign an IP address to the network
module, perform the following steps.
1. Power on the braking kit.
2. Connect the network module to a network with a Windows PC.
3. From the Windows PC, run the Anybus IPconfig software, which
may be found on the Bonitron website. The program should list
any braking kits on the network. Unconfigured modules will
have an IP address of 0.0.0.0. This utility will scan the network
for HMS braking units and list them regardless of the current IP
address setting.
4. Double-click the list entry which matches the MAC address
labeled on the network module.
5. Configure the module with the desired IP address, subnet mask,
gateway, DNS servers, and DHCP configuration. A password
may also be set if desired. Click “Set” to confirm changes. The
IP address changes immediately, there is no need to cycle
power.
