M3452 vR8 EIP/PDP
38

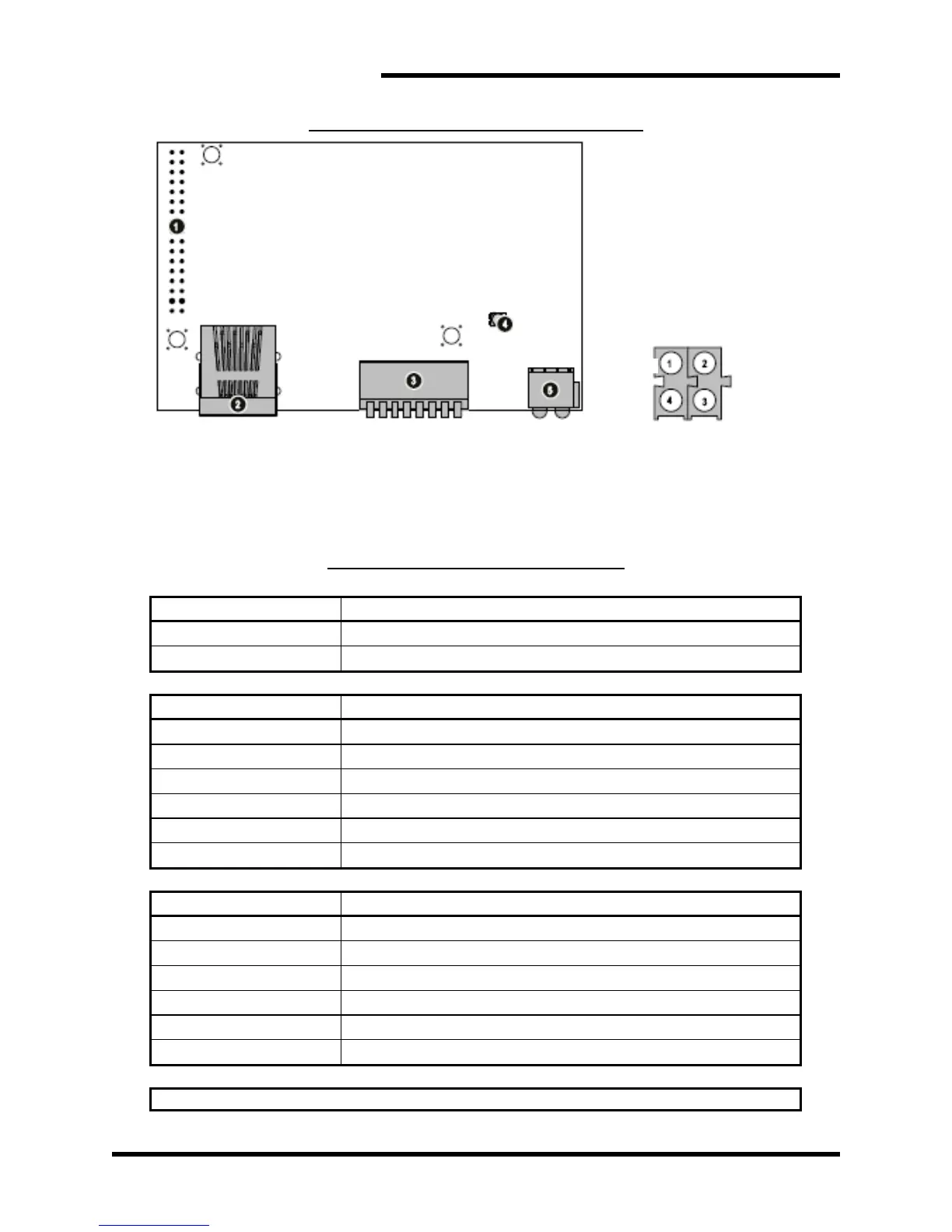

Figure 4-3: EtherNet / IP Module Features
Table 4-2: Ethernet Status Indicators
Controlled by a scanner in Run state
Not configured, or scanner in idle state
A minor recoverable fault has been detected
A major unrecoverable fault has been detected
No power or no IP address
On-line, one or more connections established (CIP Class 1 or 3)
On-line, no connections established
Duplicate IP address, fatal error
One or more connections timed out (CIP Class 1 or 3)
LED blinks when packets are transmitted or received.
