Bosch FPT-DACT - Figure 4: Light Pipe; Figure 5: Mounting the FPT-DACT Board

1/05 | F01U002505B
EN | 10FPT-DACT | Operation & Installation Guide |
2.0 Installation
4. Slide the light pipe over the end of the PCB so that they align with the LED (see Figure 4).
5. Mount the FPT-DACT board in its enclosure using the mounting screws and mounting clips provided. Then
attach the ground wire (see Figure 5).

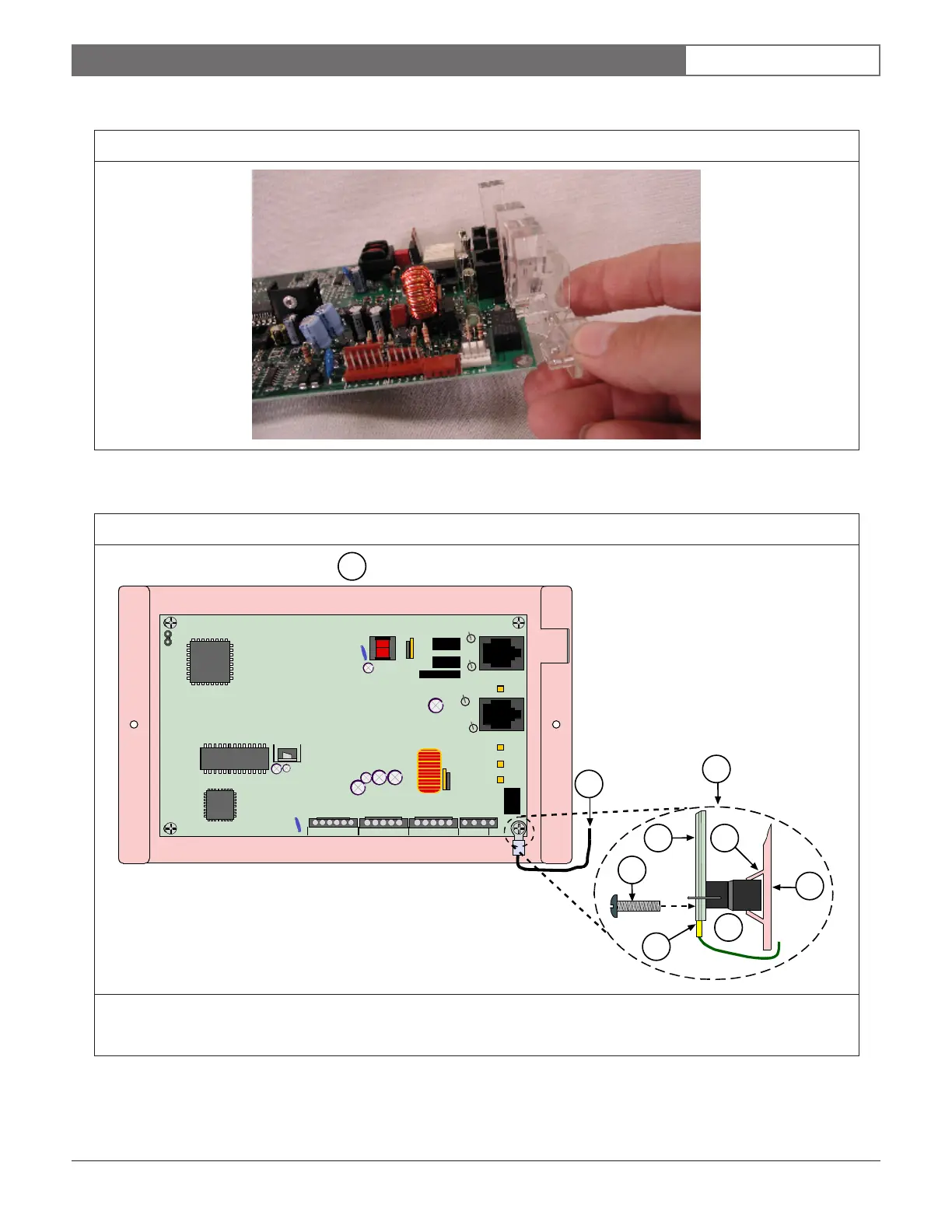

Figure 4: Light Pipe
1 - FPT-DACT installed in enclosure 4 - Lance 7 - Ground wire lug
2 - Connect ground wire to earth ground terminal on the FACP 5 - Enclosure 8 - Screw
3 - Support post assembly 6 - Mounting clip 9 - FPT-DACT PCB
1
6
LINE 1
LINE 2
++- -AB
KEYPAD
12345
NC C NO
SYS TROUBLE
HEARTBEAT
2
9 4
7
3
5
8
Figure 5: Mounting the FPT-DACT Board
