Bosch FPT-DACT - Figure 8: Open Collector Input Point Wiring (Supervised); Figure 9: Open Collector Output Point Wiring (Non-Supervised)

EN | 13FPT-DACT | Operation & Installation Guide |
1/05 | F01U002505B
2.0 Installation
1 - FPT-DACT 5 - Keypad terminals
2 - Power + (red) 6 - Earth ground (green)
3 - Panel ground (black) 7 - EOL resistor 2.21 k Ω , UL Listed, P/N: 25899
4 - Point 2 (white and red) 8 - FACP (See Power Requirements in Section 1.2.1 Power on page 5.)
Note: Open collector output must drop a minimum of 5 mA. The alarm voltage must not exceed 1.3 VDC when activated.

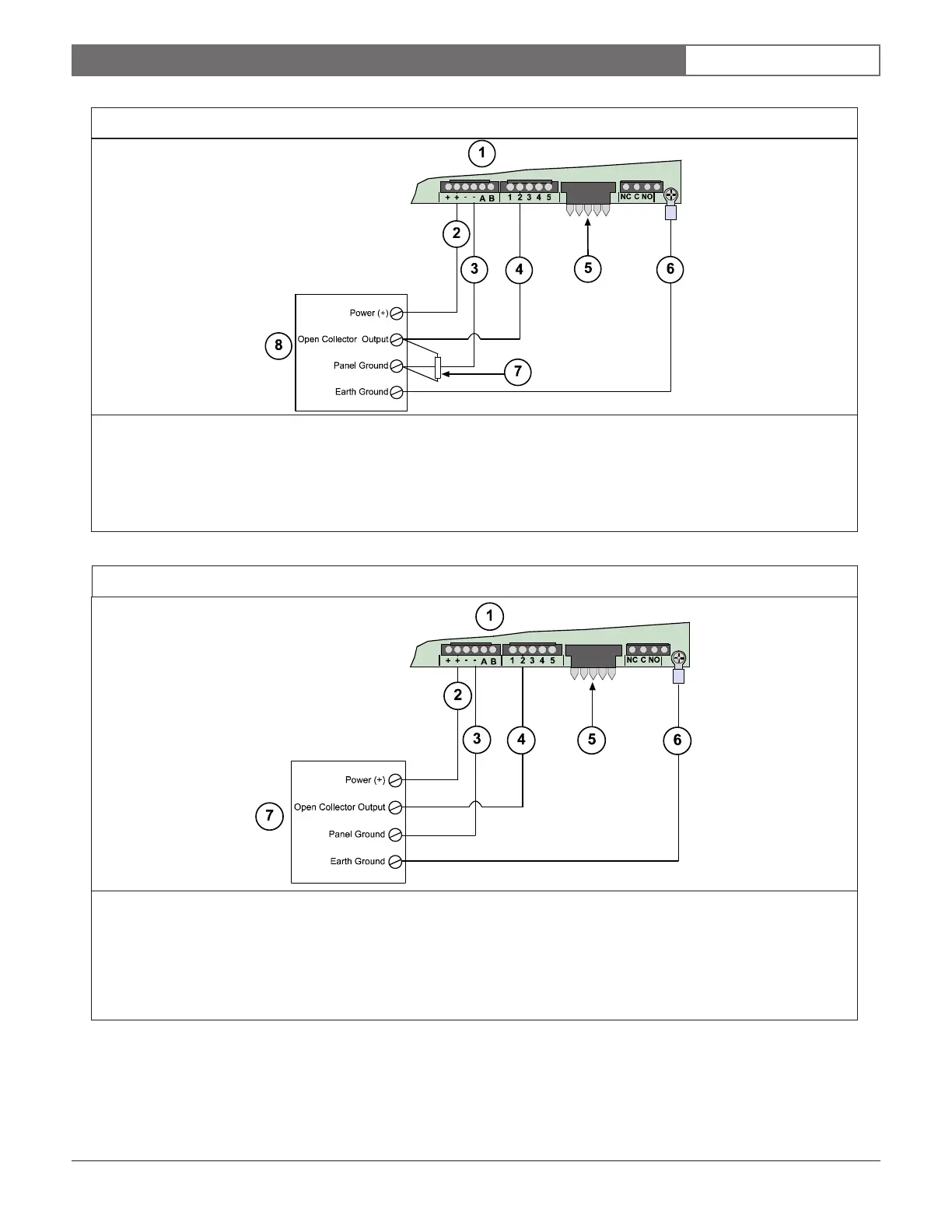

Figure 8: Open Collector Input Point Wiring (Supervised)
Figure 9: Open Collector Output Point Wiring (Non-supervised)
1 - FPT-DACT 5 - Keypad terminals
2 - Power + (red) 6 - Earth ground
3 - Panel ground (black) 7 - FACP (See Power Requirements in Section 1.2.1 Power on page 5.)
4 - Point 2 (white and red)
Note: For the UL installations, non-supervised operation requires installation within 20 ft (6 m) inside the conduit.
Note: Open collector output must drop a minimum of 5 mA. The alarm voltage must not exceed 1.3 VDC when activated.
