Bosch FPT-DACT - Figure 15: Connecting a Keypad Programmer to the FPT-DACT

EN | 17FPT-DACT | Operation & Installation Guide |
1/05 | F01U002505B
2.0 Installation

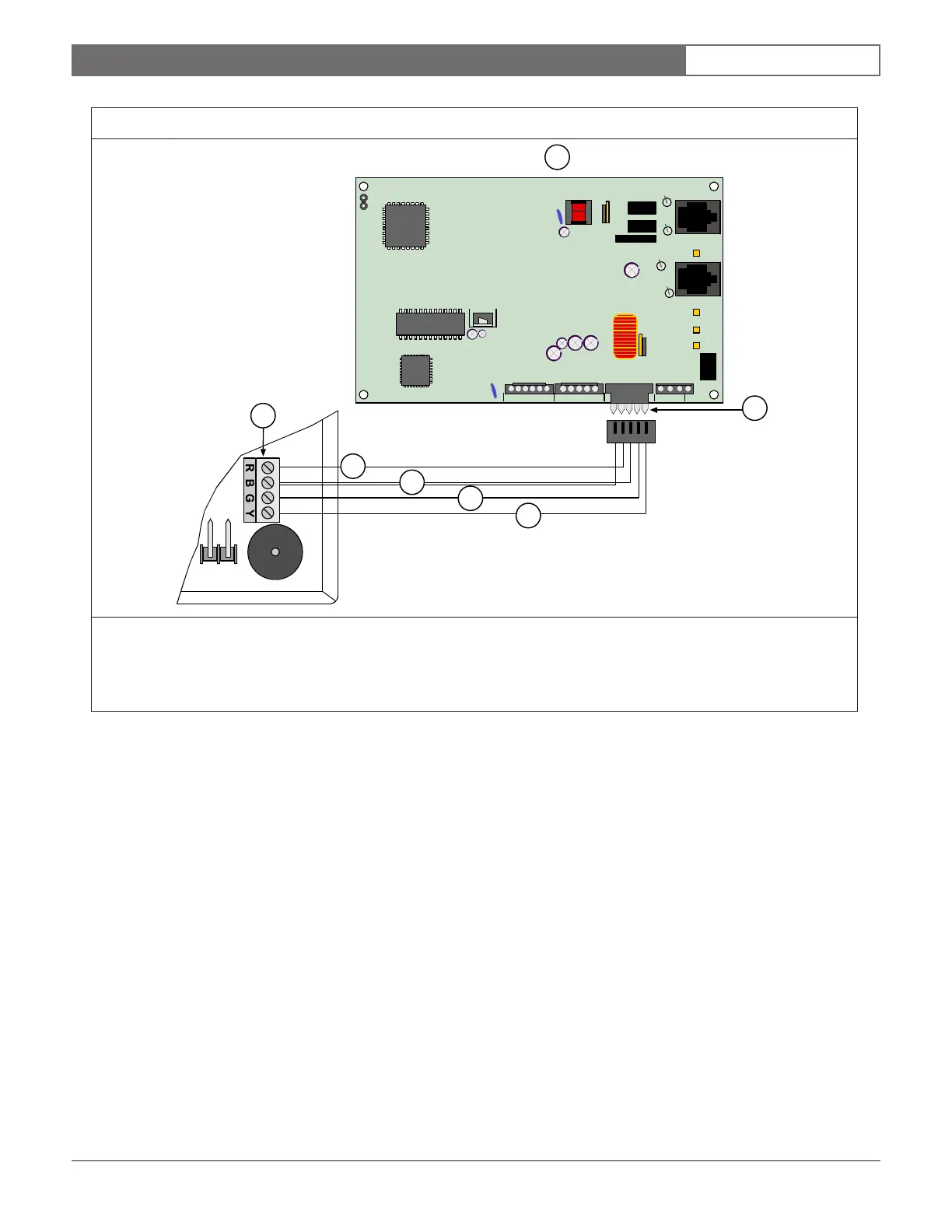

Figure 15: Connecting a Keypad Programmer to the FPT-DACT
1
2
3
LINE 1
LINE 2
++- -AB
12345
NC C NO
SYS TROUBLE
HEARTBEAT
KEYPAD
4
5
6
7
1 - FPT-DACT Fire Communicator 5 - Com (2 black wires)
2 - Keypad terminals 6 - Data in (green wire)
3 - FMR-DACT-KEYPAD Terminal Strip 7 - Data out (yellow wire)
4 - +12 VDC (red wire)
