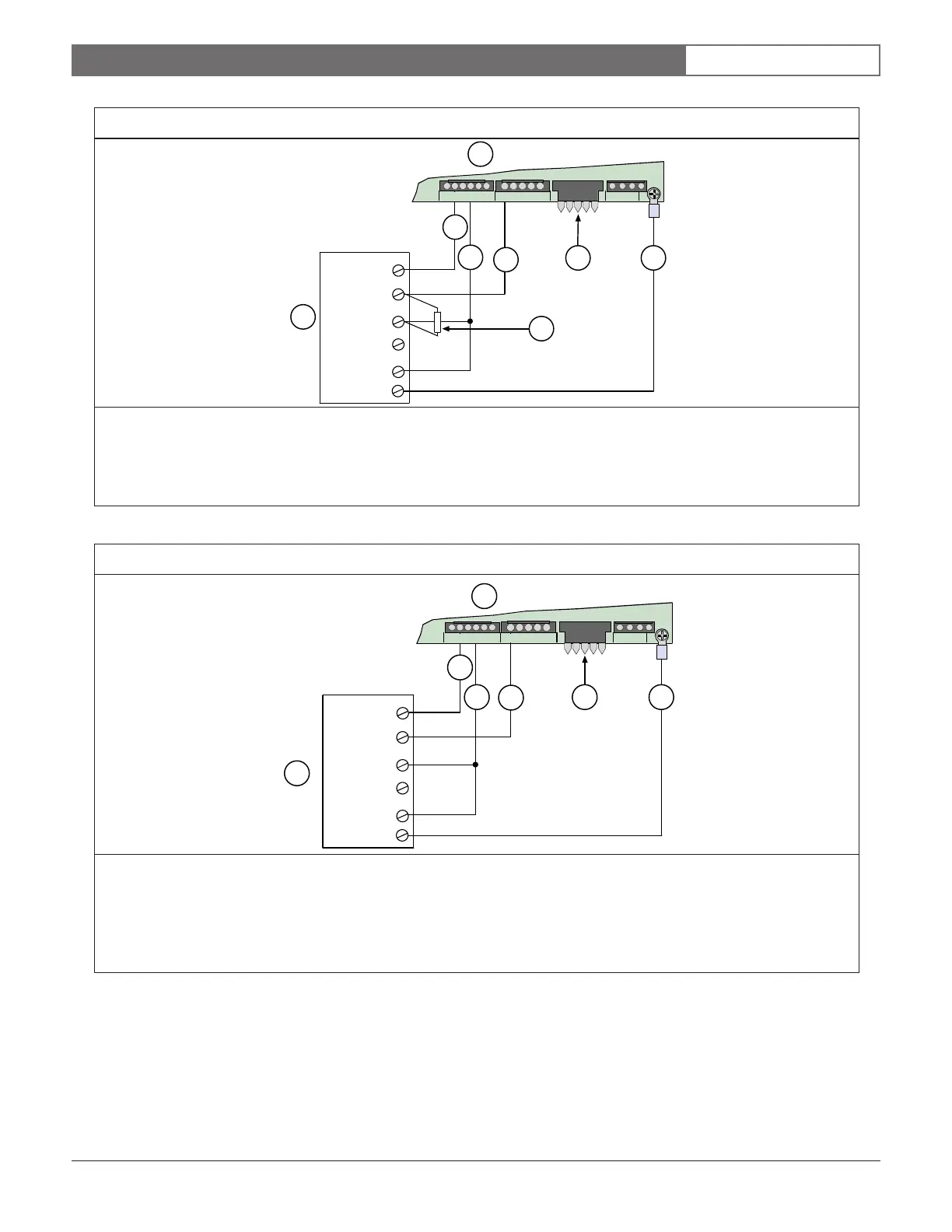

Bosch FPT-DACT - Figure 10: Dry Contact Input Point Wiring (Supervised); Figure 11: Dry Contact Input Point Wiring (Non-Supervised)

1/05 | F01U002505B
EN | 14FPT-DACT | Operation & Installation Guide |
2.0 Installation
7
1
5
+AB
345
NC C NO
2
-
1
Panel Ground
NO
C
NC
Dry
Contact
Relay
-
Power (+)
+
Earth Ground
KEYPAD
6
4
3
2
Figure 11: Dry Contact Input Point Wiring (Non-supervised)
1 - FPT-DACT 5 - Keypad terminals
2 - Power + (red) 6 - Earth ground (green)
3 - Power - (black) 7 - FACP
4 - Point 1 (white and brown)
Note: For the UL installations, non-supervised operation requires installation within 20 ft (6.1 m) inside the conduit.
Figure 10: Dry Contact Input Point Wiring (Supervised)
1
8
5
7
+AB
345
NC C NO
2
-
1
Panel Ground
NO
C
NC
Dry
Contact
Relay
-
Power (+)
+
Earth Ground
KEYPAD
4
6
3
2
1 - FPT-DACT 5 - Keypad terminals
2 - Power + (red) 6 - Earth ground (green)
3 - Power - (black) 7 - EOL resistor: 2.21 k Ω , UL Listed, P/N: 25899
4 - Point 1 (white and brown) 8 - FACP
