EN | 9FPT-DACT | Operation & Installation Guide |
1/05 | F01U002505B
2.0 Installation
2.0 Installation
You can install the FPT-DACT up to 500 ft (152 m) from the FACP.
2.1 Mounting the Enclosure
The FPT-DACT and its enclosure are shipped together. Install the FPT-DACT inside the enclosure. The hardware
for mounting the FPT-DACT to the enclosure is located in the hardware pack.
To mount the FPT-DACT Enclosure:
1. Remove the desired wire knockouts on the enclosure (see Figure 2).
2. Using the FPT-DACT case as a template, mark the mounting hole locations on the desired wall.
3. Hang the case on the wall using the appropriate installer-supplied mounting screws (see Figure 3).
1
3
1
2

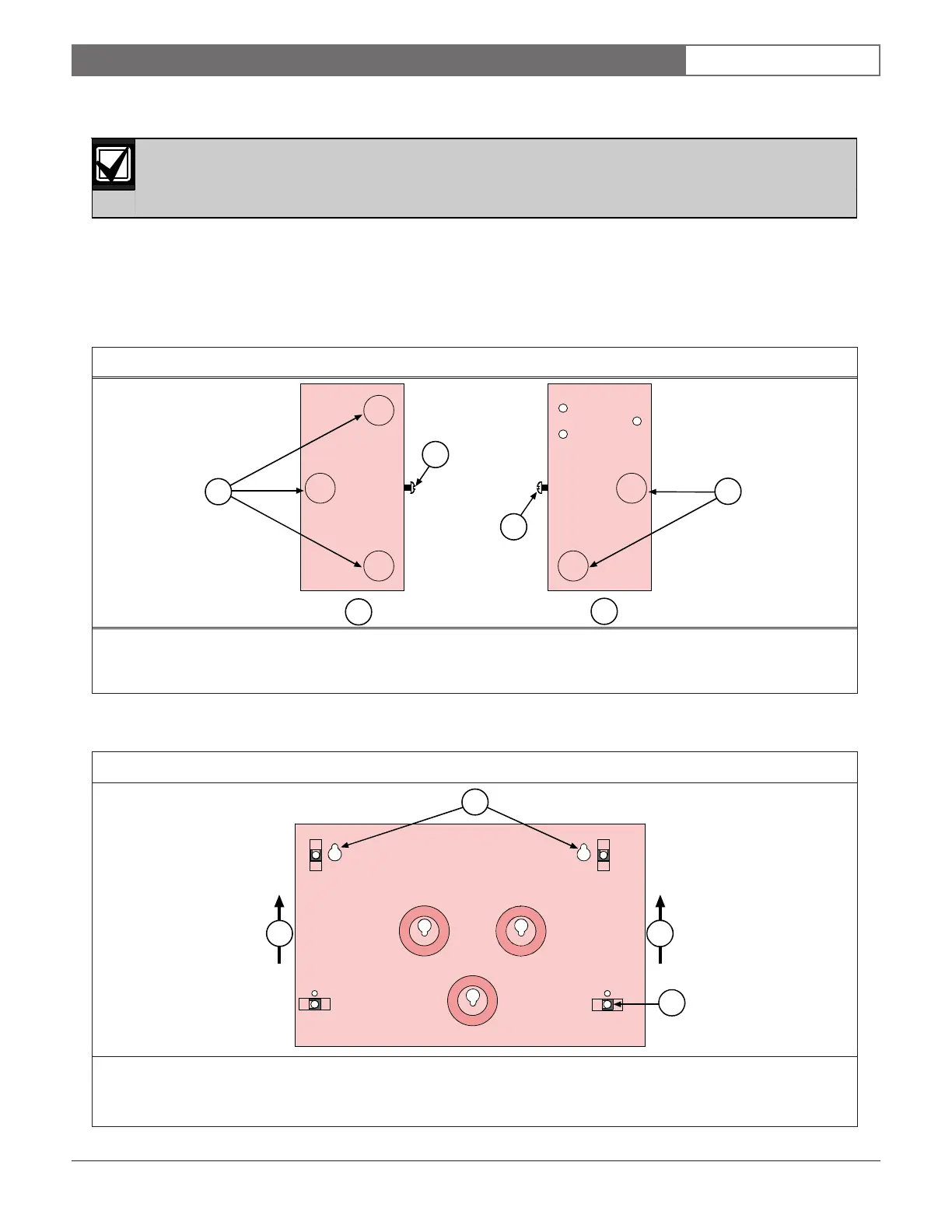

Figure 3: Mounting FPT-DACT Case to Wall (Inside View)
1 - Position enclosure with this end up
2 - Mount enclosure to the wall here.
3 - Snap mounting clip onto the enclosure lance. See Figure 5 on page 12.
1
1
3
2
4
5
Figure 2: Wire Knockout Locations
1 - Wire knockouts 4 - Right exterior
2 - Self-tapping screw 5 - Left exterior
3 - Machine screw
