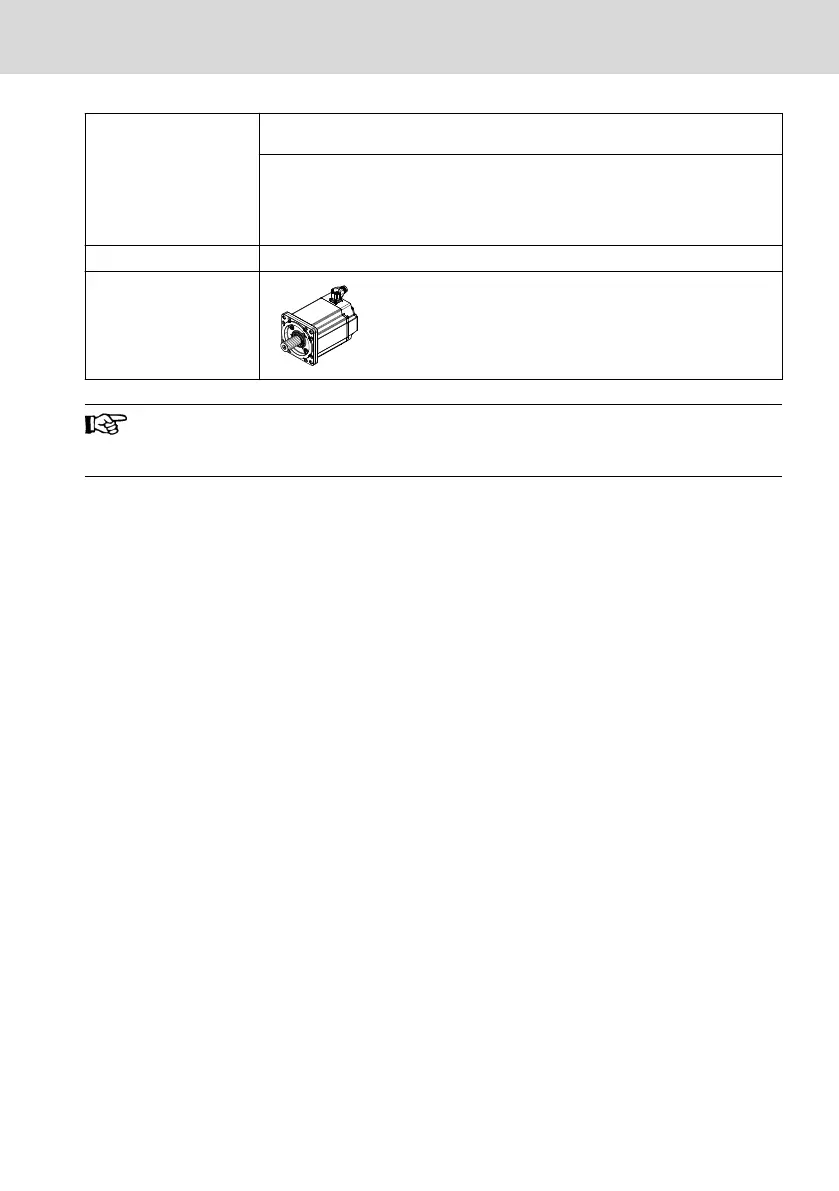

Electrical connection Single cable connection with circular connector M23, rotatable, quick lock SPEED-
CON®
Double cable connection with
Power connectors M17, M23, M40 (rotatable, quick lock SPEEDCON®), M58 or ter-
minal boxes
Encoder connector M17, rotatable, quick lock SPEEDCON®
Holding brake (option) Electrically released U
N
24V DC (±10%)
Motor ends
L
R
DE
NDE
DE
Drive End, A-Seite
NDE
Non Drive End, B-Seite
L
Left, links
R
Right, rechts
In the case of special design, details named in the operating instruc-
tions can deviate. In this case, order the supplementary documenta-
tion.
