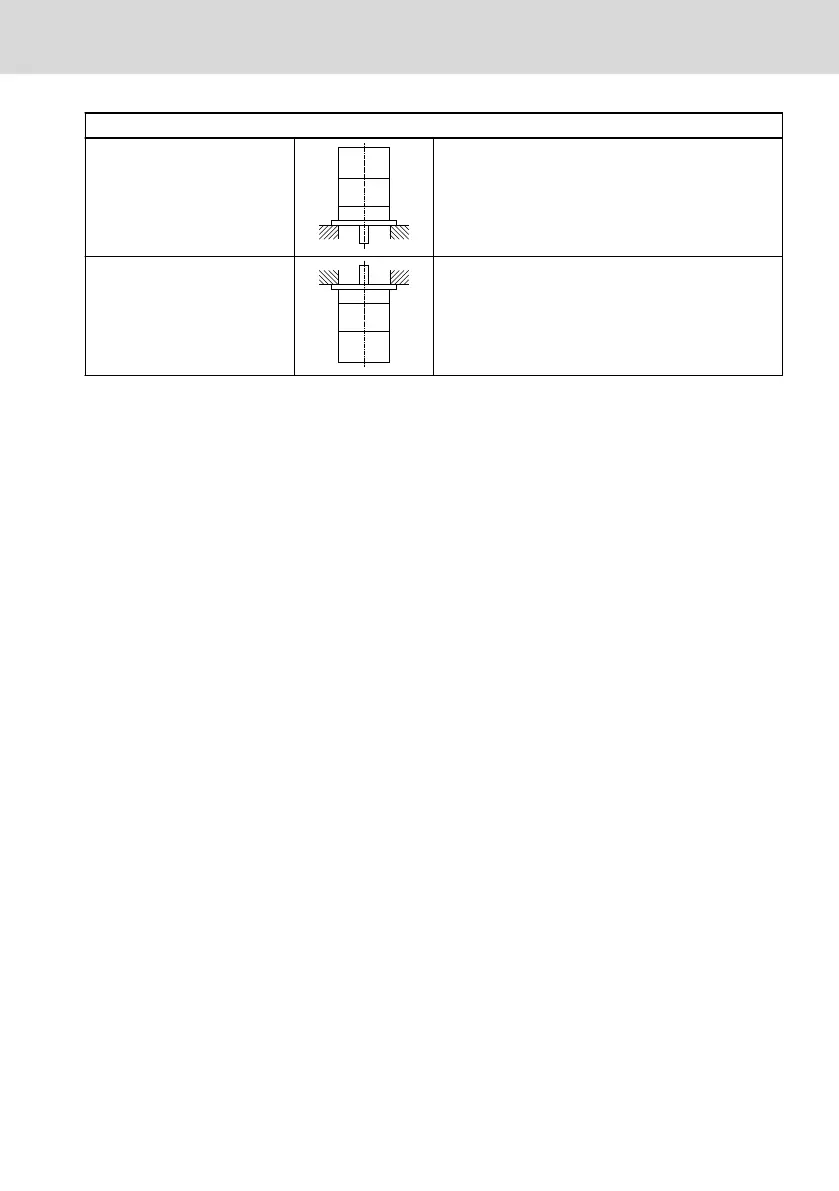

Code I / Code II (EN 60034-7)
IM V1 / IM 3011
Flange attachment on the drive side of the flange, drive
side facing down
IM V3 / IM 3031
Flange attachment on the drive side of the flange, drive
side facing up
Avoid liquid at the drive shaft or the shaft sealing ring in case of vertical installa-
tion according to IM V3. For further information regarding the protection class,
see chapter 4.2.6 "Degree of protection" on page 22.
4.2.13 Coating
One-layer standard varnish (1K), water-based, in conductive form, RAL9005 jet
black
An additional varnish with a coat thickness of max. 40 µm is allowed.
Protect all safety notes (stickers), type plates and open connectors with a paint-
ing protection when painting additionally.
MS2N Synchronous Servomotors 35/101
About this product
R911347581_Edition 04 Bosch Rexroth AG
