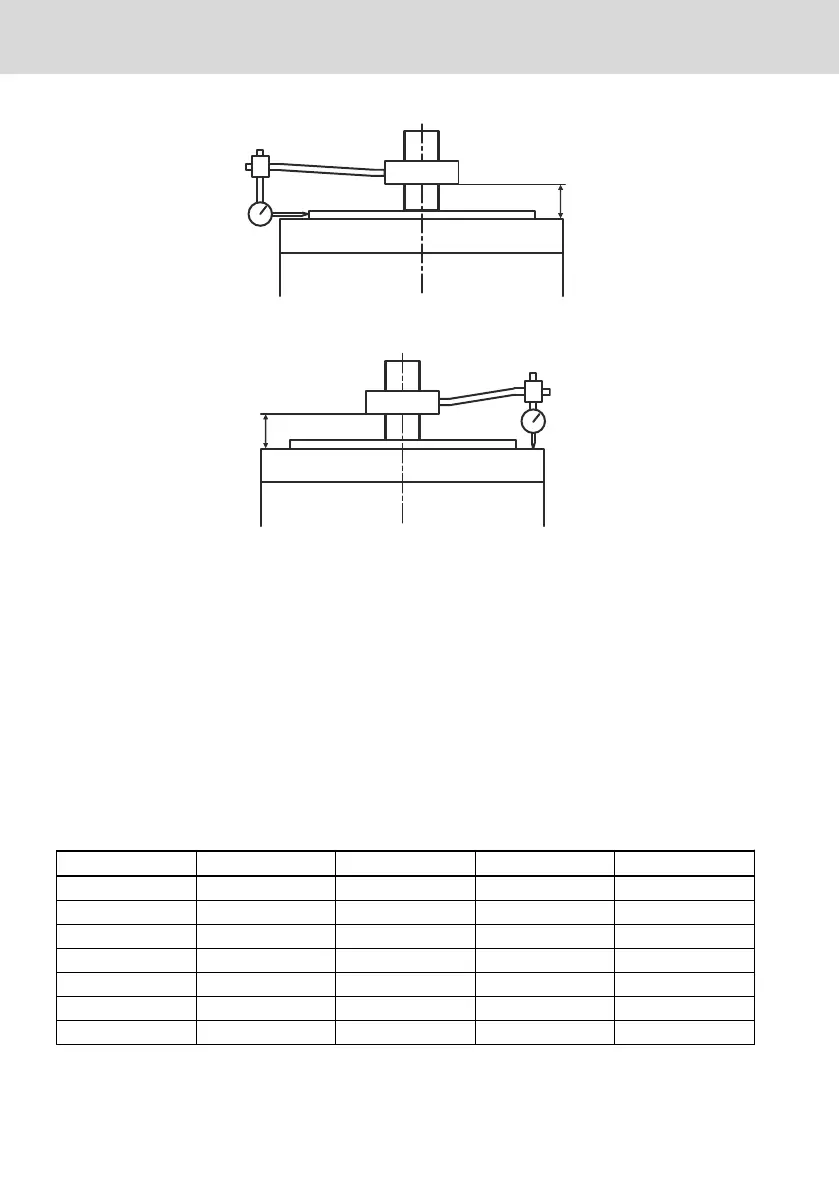

Fig. 4-9: Measuring system of coaxiality
Fig. 4-10: Measuring system of alignment
The coaxiality and the alignment are measured in vertical motor position to ex-
clude the influence of gravitational forces.
4.2.10 Vibration behavior
The oscillation behavior corresponds to oscillating quantity level A according to
DIN EN 60034-14 up to the rated speed.
4.2.11 Bearing
The motors are equipped with a deep-groove ball bearing with high-temperature
grease for prelubrication.
Bearing size MS2N
Type Bearing size DE Bearing size NDE Floating bearing Fixed bearing
MS2N03 6001 6000 DE NDE
MS2N04 6003 6001 DE NDE
MS2N05 6204 6303 DE NDE
MS2N06 6206 6303 DE NDE
MS2N07 6207 6205 DE NDE
MS2N10 6308 6306 DE NDE
MS2N13 6212 6211 DE NDE
Tab. 4-13: MS2N bearing size
32/101
About this product
MS2N Synchronous Servomotors
Bosch Rexroth AG R911347581_Edition 04
