2. Insert connection cable
Slide screwing (1), washer (2) and sealing (3) onto connection cable
3 x 0.75 mm
2
.
3. Connect.
Insulate cable jacket by 20 mm, the wires by 10 mm and the wires L, N, PE
in the connector insert according to the assignment. Use wire end ferrules
according to connection wires.
4. Mount connector
Mount the plug insert in the required cable output direction into the con-
nector housing, tighten the cable gland and therewith create the strain re-
lief and sealing of the connection cable. Screw the connector with housing
screw (4) with counterpart
6.2.14 Connect forced ventilation 4 pole + PE (400 / 480 V)
The supply voltage of forced ventilation is characterized by "C" (400 / 480 V).

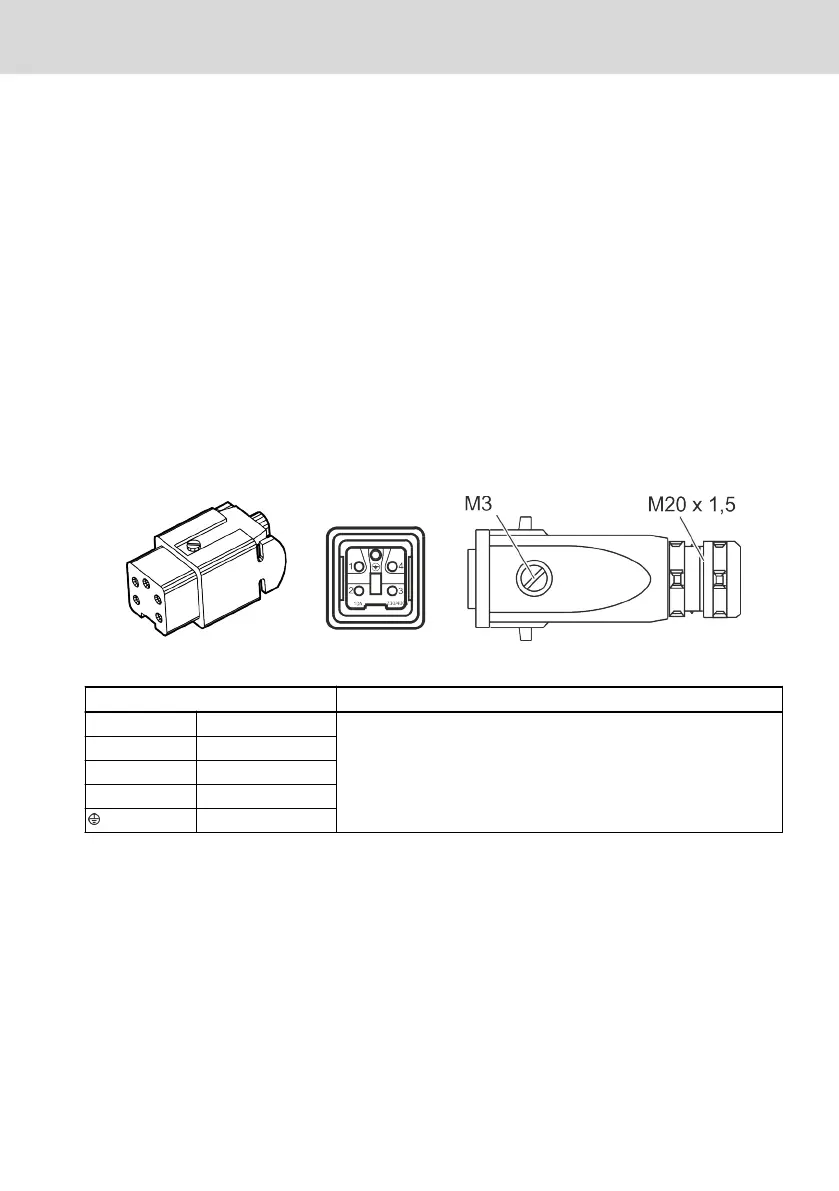

Fig. 6-7: Plug connector 4-pole + PE (400 / 480 V)
Assignment Connection
1 L1
0.5 ... 2.5 mm
2
/ AWG22 ...12
Clamping screws M3 / tightening torque 0.5 ... 0.7 Nm
2 L2
3 L3
4 n. c.
PE
Tab. 6-30: Pin assignment plug connector fan 4 pole + PE
Mounting instruction fan connector 4 pole + PE
1. Dismantle the fan connector
- Removing the housing screw M3
- Dismount plug insert
- Disassemble the plug insert by pressing the wings together
2. Untighten the clamping screws
3. Insert connection cable
Lead the connecting cable through the gland (M20).
