Type Key DIN 6885-A Centering hole DIN 332 Part 2
MS2N03-B 3 × 3 × 14 DS M3
MS2N03-D 4 × 4 × 16 DS M4
MS2N04 5 × 5 × 20 DS M5
MS2N05 6 × 6 × 32 DS M6
MS2N06 8 × 7 × 40 DS M8
MS2N07 10 × 8 × 45 DS M10
MS2N10 10 × 8 × 70 DS M12
MS2N13 14 × 9 × 80 DS M16
Tab. 4-9: Keyway and centering holes for MS2N motors
Keys are not included in the scope of delivery.
The design with shaft sealing ring is optional. The shaft sealing ring affects the
degree of protection chapter 4.2.6 "Degree of protection" on page 22. We rec-
ommend regular visual inspections on shaft sealing rings. Depending on ope-
rating conditions, signs of wear may appear after 5,000 operating hours. If nec-
essary, replace the shaft sealing rings.
Bosch Rexroth recommends to have these repairs made by Bosch
Rexroth Service.
Balancing
MS2N motors with keyway are balanced with "half key " (half key balancing acc.
to DIN ISO 21940-32).
The type of balancing is specified at the shaft front end or the base of the re-
cess with "H" for half key balancing.
1
Identification of balancing at the end face of the shaft
2 Identification of balancing in the base of the recess

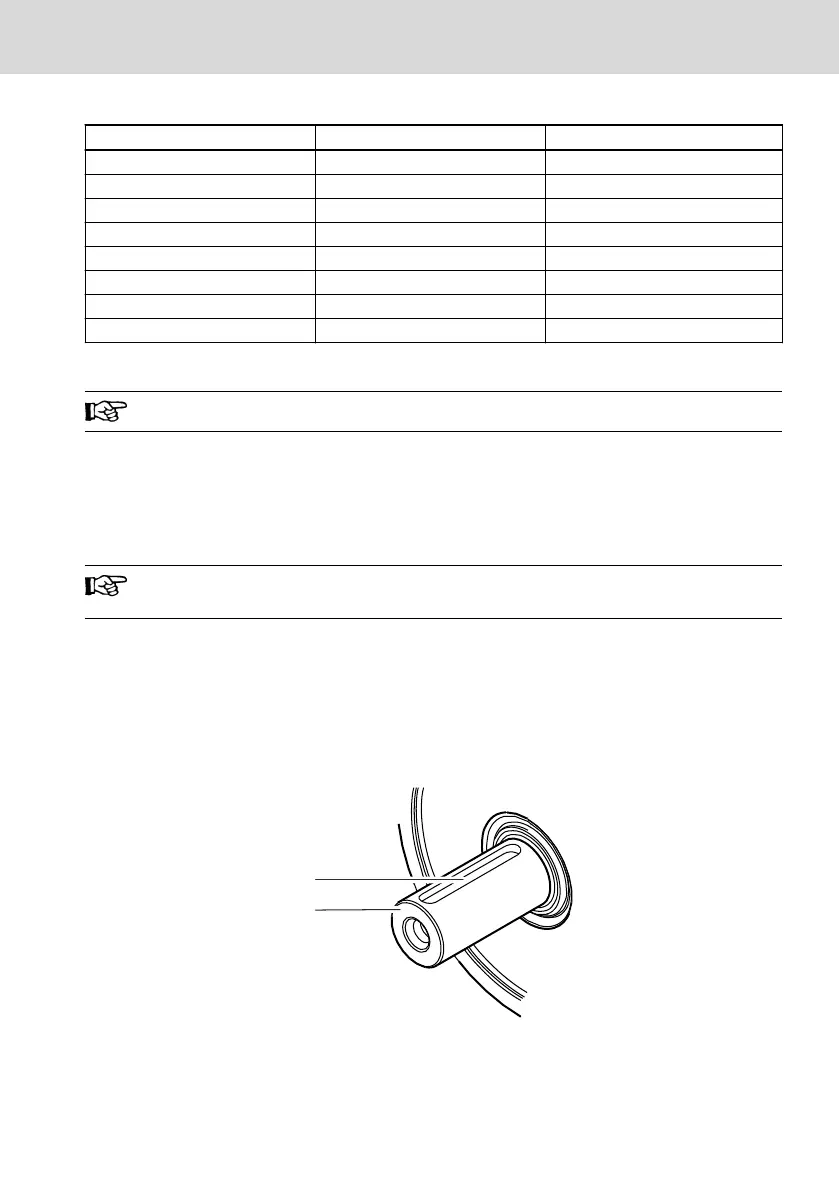

Fig. 4-5: Identification balancing
MS2N Synchronous Servomotors 23/101
