6.2.2 MS2N Electrical connection "S"

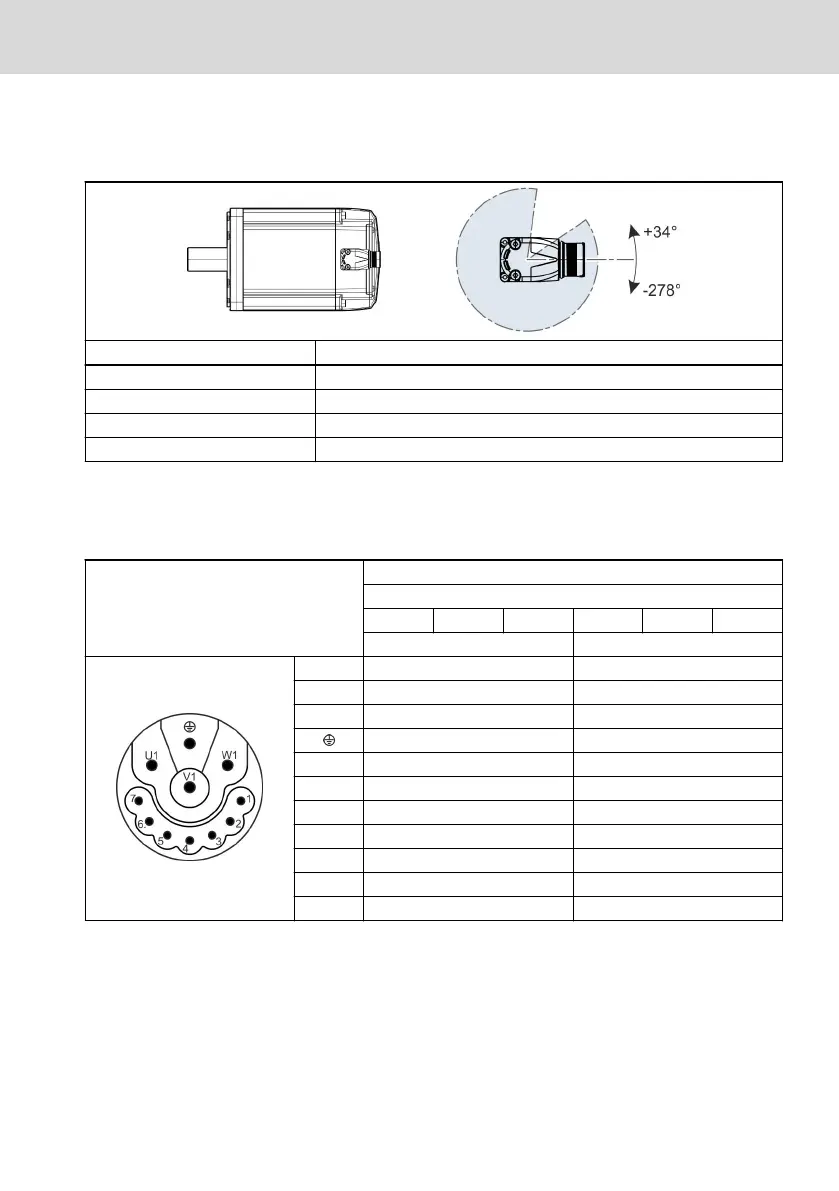

M23 view (single cable connection) / rotation range
Flange socket Single cable connection
Connector size M23
Output direction rotatable (max. 10x)
Adjustment torque 4 ... 10 Nm
Locking SpeedCon
Tab. 6-3: MS2N..-.....-..S..-.....-.. Flange socket
Pol pattern M23 (single cable connection)
Designation
Function
Encoder
Cx Dx Hx Cx Dx Hx
with brake without brake
U1 A1 A1
V1 A2 A2
W1 A3 A3
PE PE
1 +UB +UB
2 GND GND
3 Data+ Data+
4 Data- Data-
5 Shld Shld
6 BD(+) n.c.
7 BD(-) n.c.
Tab. 6-4: Pin assignment pole pattern M23 (single cable connection)
Note for assembly about SpeedCon connectors, see chapter 6.2.10 "SpeedCon
connectors" on page 71
