6.2.4 MS2N Electrical connection "U"

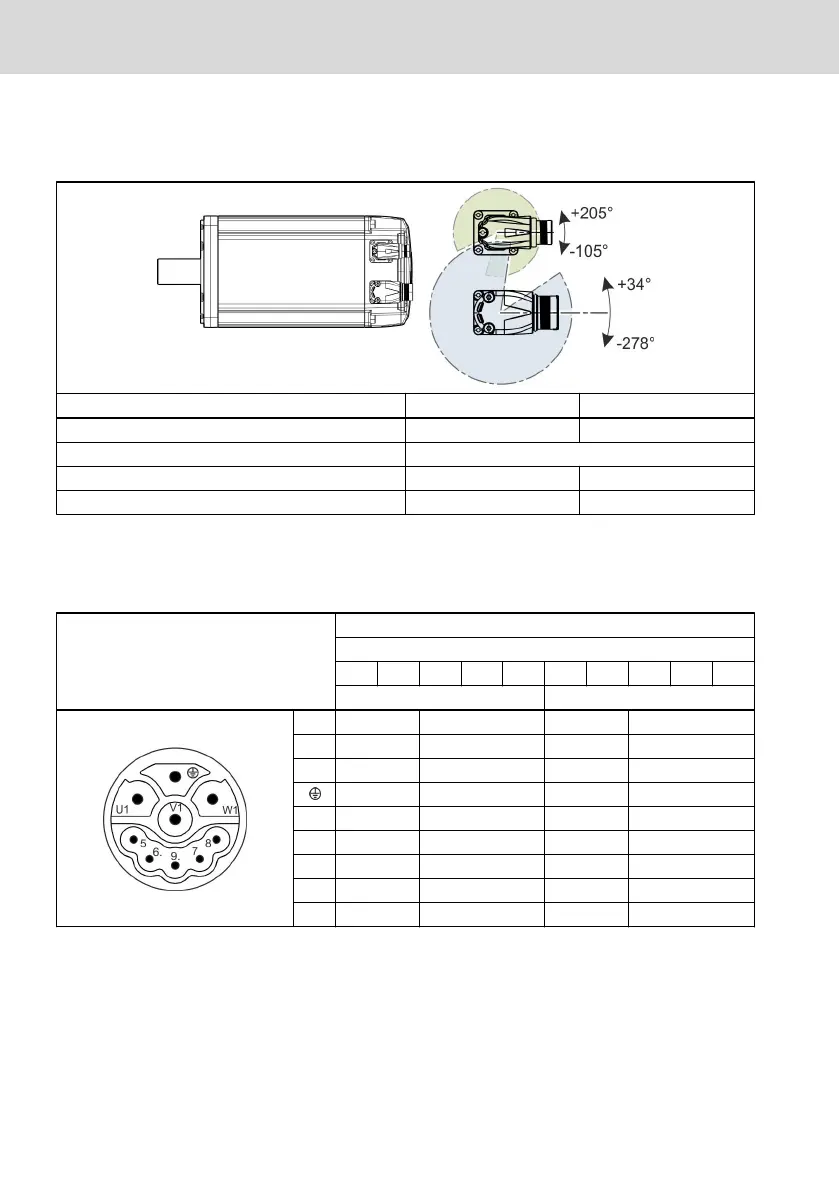

View M23 power, M17 encoder (Dobule cable connection) / rotating area
Flange socket Power Encoder
Connector size M23 M17
Output direction rotatable (max. 10x)
Adjustment torque 4 ... 10 Nm 2 ... 6 Nm
Mode of locking SpeedCon SpeedCon
Tab. 6-8: MS2N..-.....-..U..-.....-.. Flange socket
Pol pattern M23, power (double cable connection)
Designation
Function
Encoder
Ax Bx Cx Dx Hx Ax Bx Cx Dx Hx
with brake without brake
U1 A1 A1 A1 A1
V1 A2 A2 A2 A2
W1 A3 A3 A3 A3
PE PE PE PE
5 TP(+) n.c. TP(+) n.c.
6 TP(-) n.c. TP(-) n.c.
7 BD(+) BD(+) n.c. n.c.
8 BD(-) BD(-) n.c. n.c.
9 n.c. n.c. n.c. n.c.
Tab. 6-9: Pin assignment pol pattern M23, power
Note for assembly about SpeedCon connectors, see chapter 6.2.10 "SpeedCon
connectors" on page 71
