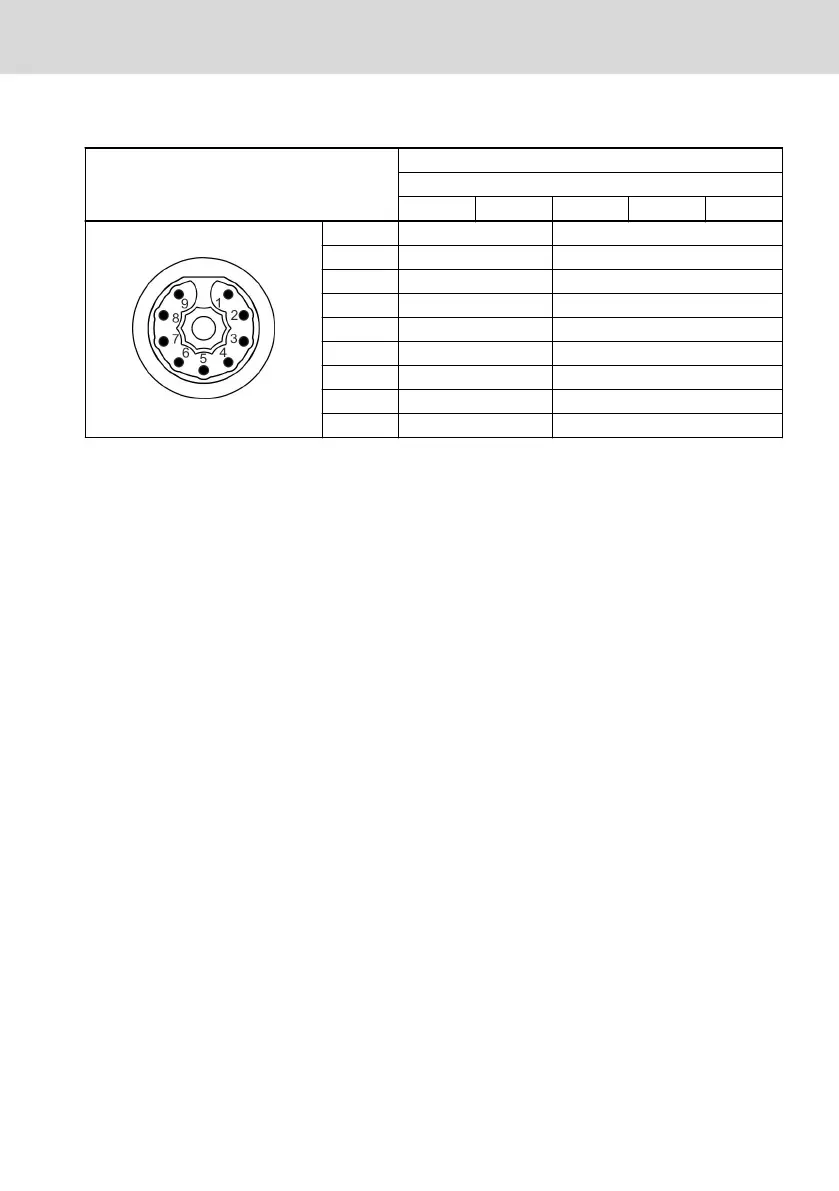

Pol pattern M17, encoder (double cable connection)
Designation
Function
Encoder
Ax Bx Cx Dx Hx
1 +UB +UB
2 n.c. n.c.
3 Data+ Data+
4 Data- Data-
5 A+ n.c.
6 A - n.c.
7 B+ n.c.
8 B - n.c.
9 GND GND
Tab. 6-7: Pin assignment pole pattern M17, encoder
Note for assembly about SpeedCon connectors, see chapter 6.2.10 "SpeedCon
connectors" on page 71
MS2N Synchronous Servomotors 55/101
Assembly
R911347581_Edition 04 Bosch Rexroth AG
