① Mounting feet

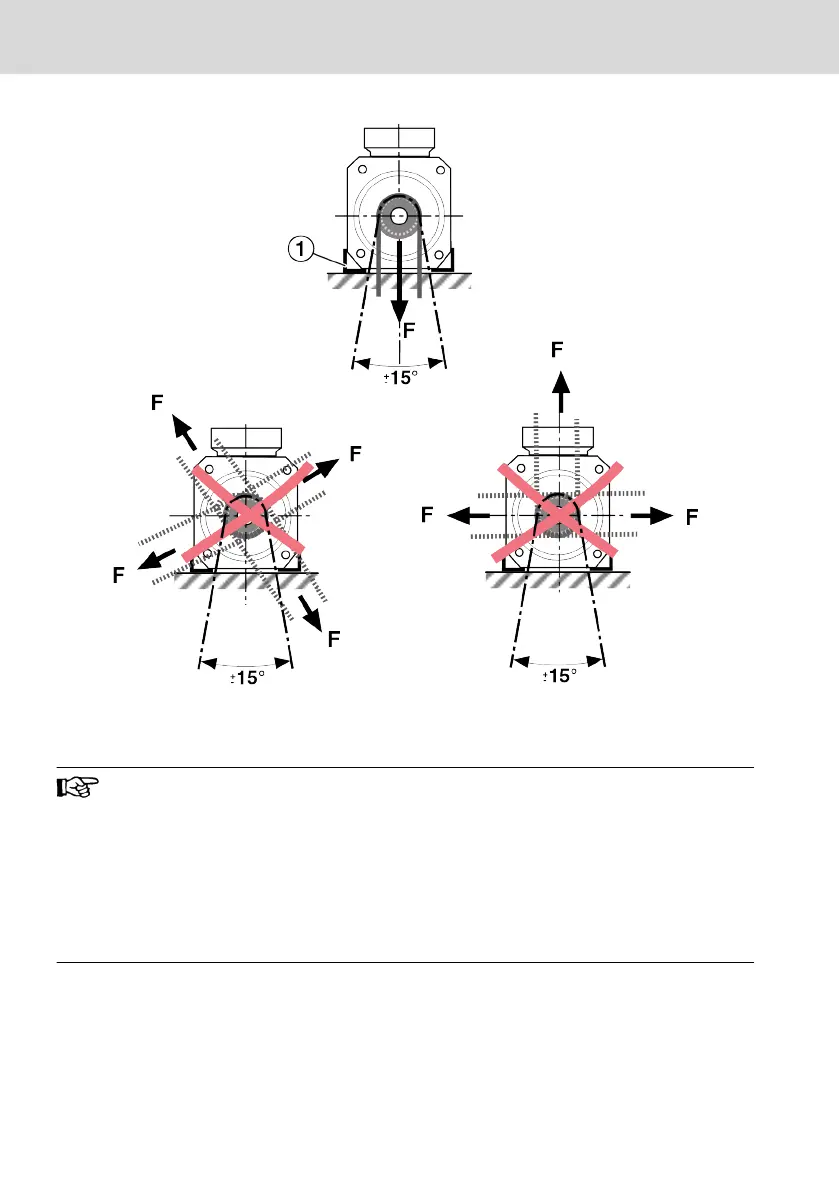

Fig. 6-1: Force direction at foot mounting
Please note the following in case of foot mounting ...
● Forces which are transmitted by a gear and have an effect on the
motor feet are not allowed.
● Forces taking effect via the gear shaft must be supported against
the gear.
Above-mentioned installation situations causes forces which may
cause short-term damage to the motors. In such a case check the
possibility of flange assembly.
6.1.3 Attaching transmission elements
Fit and pull off the transmission elements such as pulleys and couplings only
with suitable equipment; heat them, if necessary.
● Avoid inadmissible belt tensions. Please consider the allowed radial and axial
forces in the project planning manuals.
50/101
Assembly
MS2N Synchronous Servomotors
Bosch Rexroth AG R911347581_Edition 04
