REFUspeed RS51 Operator control and visualization 6-1
DOK-RD500*-RS51*******-IB02-EN-P
6 Operator control and visualization
6.1 Operator control possibilities
The following are available to control, visualize and parameterize the RE-
FU
speed drives: The RZB01.2 or RZB03.2 (option) operator panels, the
REFU
win PC operator interface and several interfaces.
The serial RS232 and RS485 interfaces are provided on the control card
as standard. In addition, the optional interface cards for Profibus DP, In-
terbus S, CAN bus, CANopen and peer-to-peer coupling are available.
ESC
START STOP
MON ENTERPROG
-
+

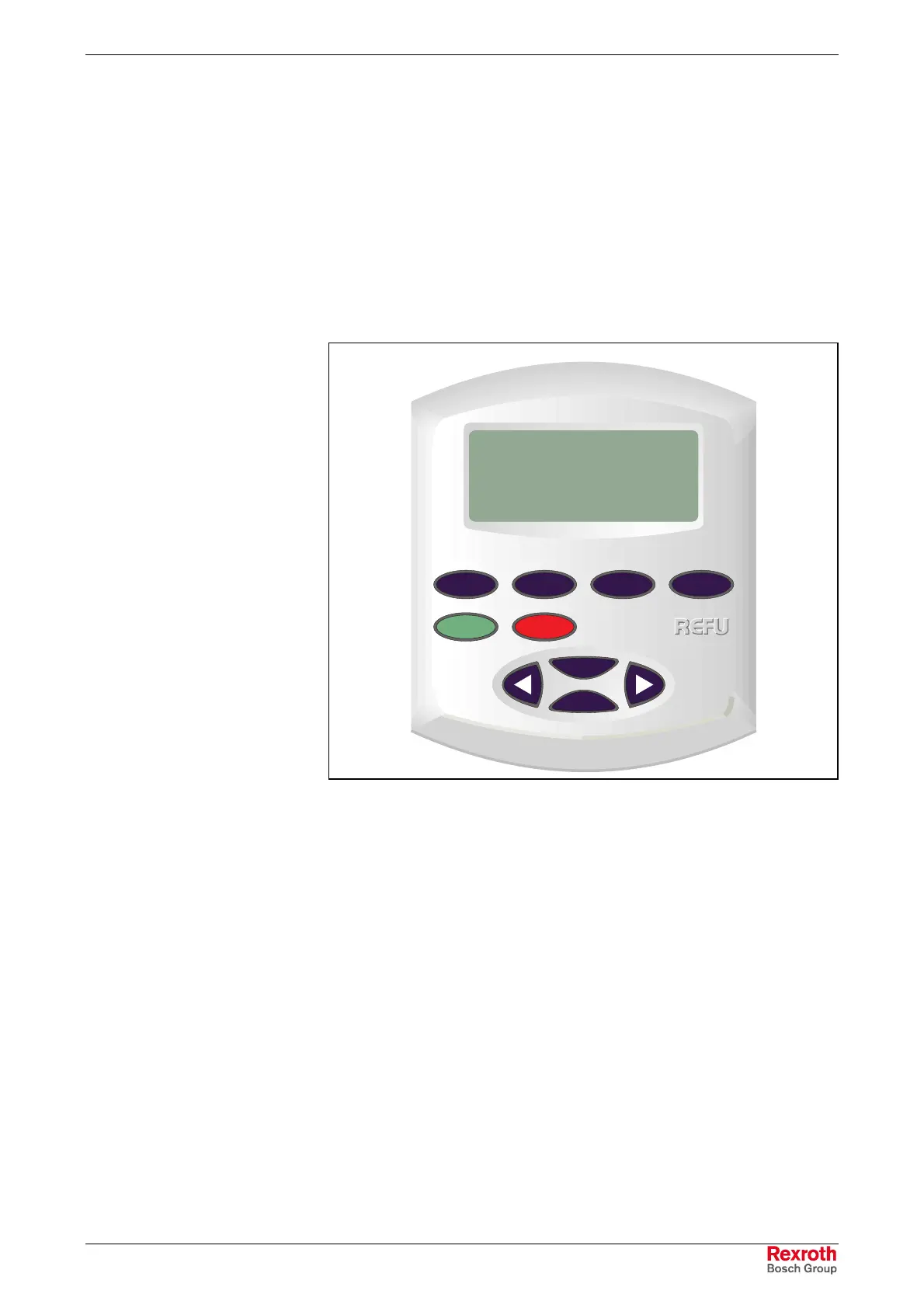

Fig. 6-1: Operator panel with graphics display (option)
6.2 Operator control using the operator panel
Operation with the operator panel
When supplied (standard values of the basic parameterization are set),
the start / stop key and the plus / minus key (for the motorized potenti-
ometer function) are active.
