REFUspeed RS51 Mounting 4-1
DOK-RD500*-RS51*******-IB02-EN-P
4 Mounting
4.1 Storage and installation
Storage
The drive units must be stored in dry, clean rooms. The storage tem-
perature must lie between -25° C and +70° C. Temperature fluctuations
greater than 20 K per hour are not permissible.
Note: AC drive converters and rectifier converters use aluminum
Elko capacitors as DC link capacitors. They can be stored for
a maximum of 2 years in a no-voltage condition at a storage
temperature of ≤ 40 °C.
Minimum requirements placed on the installation location
• The drives should be operated in dust-free rooms. Dust-laden air must
be filtered (3K3 according to DIN IEC 721-3-3).
• The ambient temperature must lie in the range 0...40 °C.
• The relative air humidity may not exceed 90%, moisture condensation
is not permissible.
• It is not permissible that the air drawn in contains gases which could
have a negative impact on the function; the air may neither contain
aggressive nor electrically conductive gases.
• The airflow through the ventilators may not be restricted. The minimum
clearances, specified for the various sizes for air intake and air dis-
charge may not be obstructed as a result of other mounted compo-
nents.
• The drive dissipates power in the form of heat which heats up its envi-
ronment. This means that there must be sufficient clearance to heat-
sensitive equipment and devices.

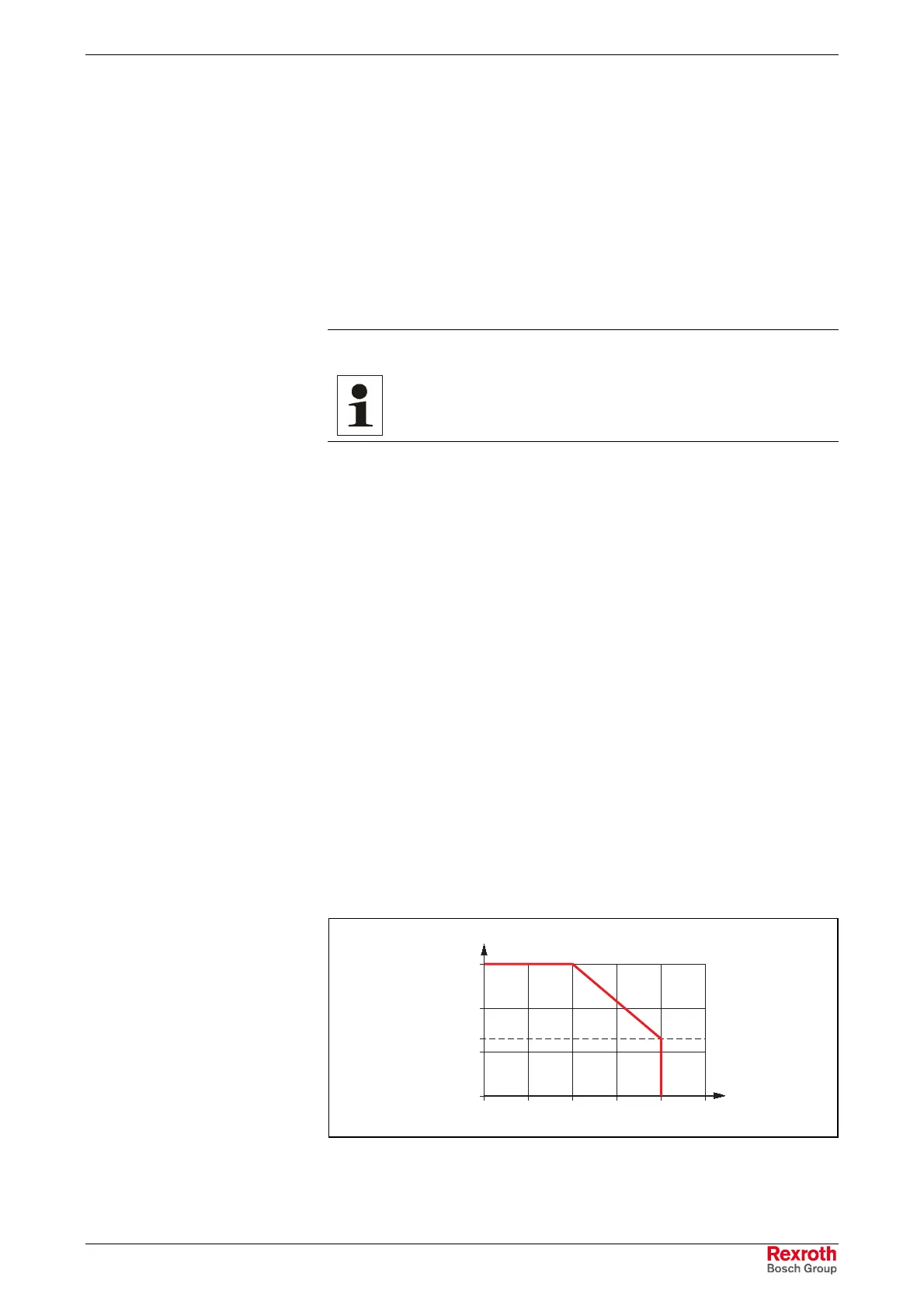

Installation altitudes above 1000 meters sea level:
For installation altitudes exceeding 1000 meters above sea level, the drive
converter or inverter must be de-rated in accordance with the diagram
below.
100 %
90 %
83 %
80 %
70 %
0 500 1000 1500 2000 2500
Installation altitude in m above sea level
Utilization
Fig. 4-1: De-rating as a function of the installation altitude
