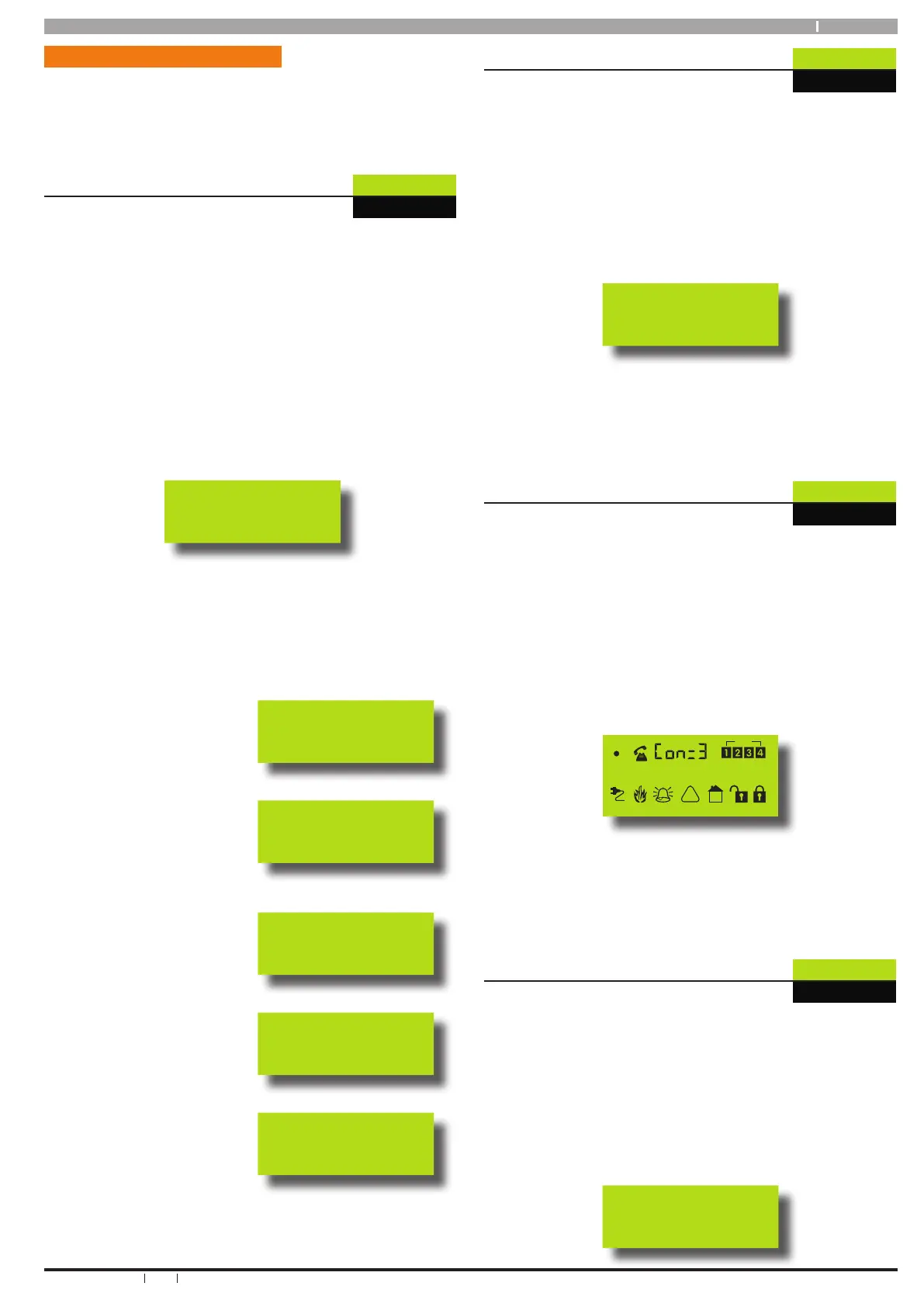

Bosch Solution 16i User Guide

27
Bosch Security Systems 6/09 BLCC500U FTR1.03
Solution 16 i User Guide
Devices and Optional Modules
Programming options in this section relate to the keypads
and other devices which may be connected to your
alarm system. Your installer will advise you on the exact
conguration of your system.
Devices > Commands >
LAN-St
LAN Status
MENU 6-0-0
This menu provides a listing of all devices and modules
connected to your system. Using this option it is possible
to view the voltage, temperature and other information
about each of the modules.
1. Enter your Master PIN + [MENU].
2. Enter [MENU] + [6] + [0] + [0] +[OK].
The keypad will display the rst device tted to the
system.
3. Use the [↑] and [↓] keys to select the device that you
want to view, then press [OK] to select.
cP001
The system display CP001 which represents Keypad
number 1 on the system. Press [OK[ to view.
The display will show each parameter for the device
one at a time.
Display shows the
current keypad
temperature.
t=22c
Displays the current
voltage being
measured at the
keypad.
v=13-8
Displays the rmware
version of the keypad.
r=1-00
Displays the keypad
size. 8 Zone or
16 Zone
16 Zn
Displays if the keypad
has an in built
proximity reader.
pro
4. Press [OK] or [MENU] to exit.
Devices > Keypads >
cP-VOl
Volume
MENU 6-1-0
This menu allows you to adjust the volume of the keypad’s
buzzer. Each keypad can have their volume adjusted
separately to suit your needs.
1. Enter your Master PIN + [MENU].
2. Enter [6] + [1] + [0] + [OK].
The keypad will display the current volume setting and
the keypad address. This example shows keypad 1.
vol =6
1
3. Press the the [↑] and [↓] keys to adjust the volume.
Min = 1, Max = 8 , 0 = O.
4. Press [OK] to save and exit, or press [MENU] to exit
without saving.
Devices > Keypads >
cP-cOn
Contrast
MENU 6-1-1
This menu allows you to adjust the contrast of the keypad’s
LCD display to improve visability. Each keypad can have
their display adjusted separately.
1. Enter your Master PIN + [MENU].
2. Enter [6] + [1] + [1] + [OK].
The keypad will then display the contrast screen which
includes all of the available symbols and the current
contrast setting.
POWER
FIRE

ALARM
!
SERVICE
M
PART
OFF ON
9
10 11 12 13 14 15 16
1 2 3 4 5 6 7 8
(
(
)
)
CHIME
PHONE
AREA
3. Press the the [↑] and [↓] keys to adjust the contrast.
Min = 1, Max = 3.
4. Press [OK] to save and exit, or press [MENU] to exit
without saving.
Devices > Keypads >
cP-bl
Backlight
MENU 6-1-2
This menu allows you to adjust the brightness of the
keypad’s LCD display backlight. Each keypad can have
their display adjusted separately.
1. Enter your Master PIN + [MENU].
2. Enter [6] + [1] + [2] + [OK].
The keypad will display the current backlight setting
and the keypad address. This example shows keypad
1.
bl =8
1
